GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
Chapter 3 - Installation 3-35
Section 3-6
System Configuration
Once all the required peripherals have been installed and the unit has been switched on, configure the
system settings in the System Configuration window tabs. Refer to the Vivid™ 3 Pro/Vivid™ 3 Expert
User Manual for additional information about system configuration.
3-6-1 Adjusting the Display Monitor
The display monitor’s contrast and brightness controls may need periodic adjustment due to changes
in ambient light. They can be adjusted using the Contrast and Brightness buttons on the front part of
the display monitor.
All display monitor controls, other than the contrast and brightness controls, are factory adjusted for
optimum settings and usually do not require further adjustment.
For details on adjusting the display monitor settings, refer to the Monitor Operation section, on page 6-9.
3-6-2 Hospital Info Tab
1) Press Config on the alphanumeric keyboard. The System Configuration window is displayed with
the Hospital Info tab selected, as shown below:

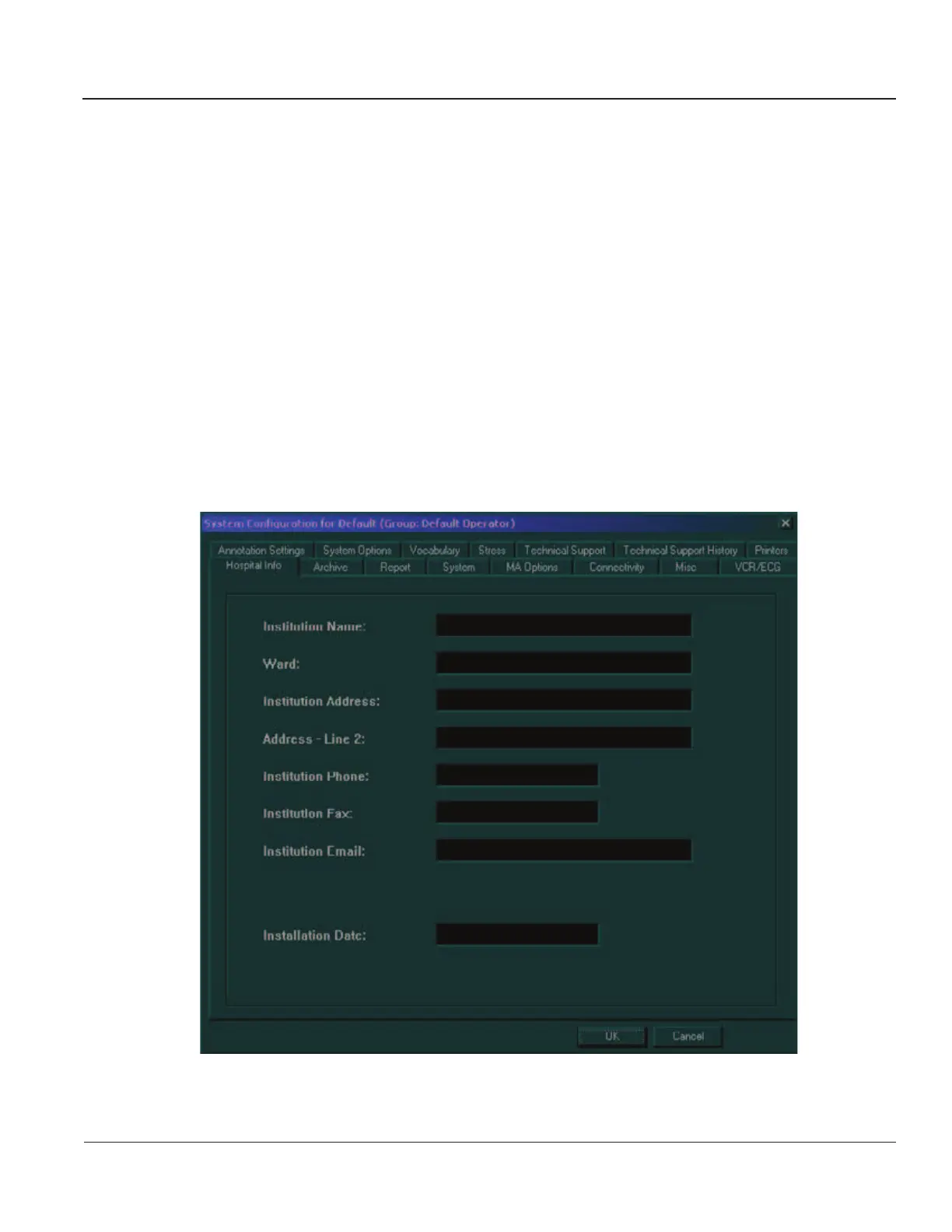

Figure 3-21 Hospital Info Tab
2) In the Hospital Info tab, enter the required information in the appropriate fields.
3) Trackball to the OK button and press Select.
