IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
6-14 Section 6-8 - Calibration
Section 6-8
Calibration
The Diagnostic dialog box (accessed by pressing <Ctrl+F11> or <Alt+D>, when in regular scanning
mode), enables you to perform three types of calibration, as described in the following sections:
•
Monitor Calibration section, page 6-16.
•
Beamformer Calibration section, page 6-17.
•
Video Grabbing Calibration section, page 6-17.
6-8-1 Accessing the Calibration Options
1) Press <Ctrl+F11> (or <Alt+D>) on the alphanumeric keyboard. The Diagnostic dialog box is
displayed, as shown below:

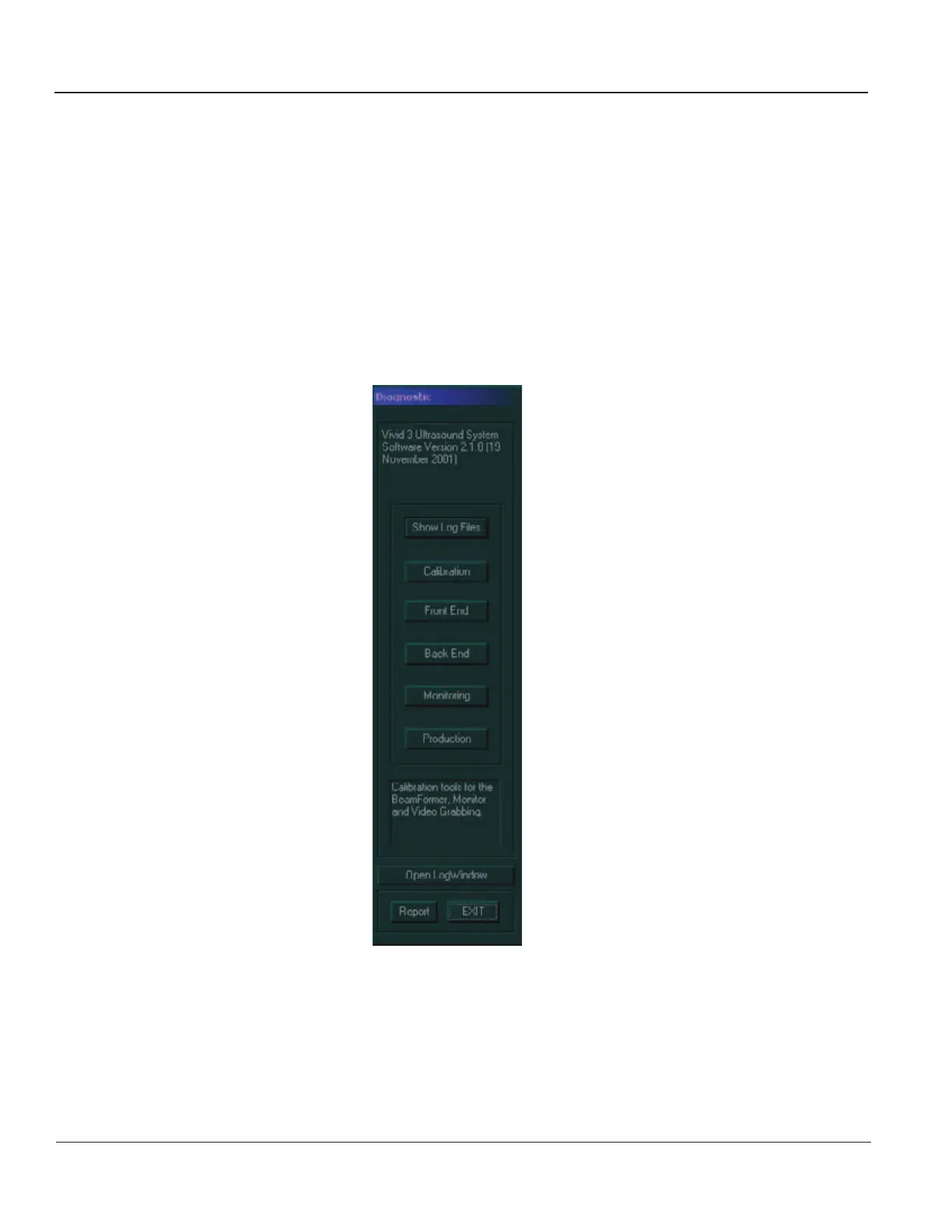

Figure 6-5 Diagnostic Dialog Box
