GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
Chapter 7 - Diagnostics/Troubleshooting 7-15
7-3-4 VME Bus (VME) Diagnostic Tests (for RFT Configuration)
The VME Bus diagnostic test checks the communication on the VME Bus between the IP card, the FEC
and the RFT.
Note: Before performing the VME Bus test, perform the IMP test, as described in the
Image Port (IMP)
Diagnostic Tests (for RFT Configuration)
section, on page 7-13. If the VME Bus test is
performed without first performing this test, and errors are identified, you must perform the IMP
test to ensure that the VME board is the source of the error.
1) Access the FE Diagnostics dialog box, as described in the
Accessing the Front End Diagnostic
Options
section, on page 7-6.
2) In the FE Diagnostics dialog box, trackball to the VME tab and press Select,
OR
Trackball to the VME button in the Data Flow Map and press Select.
The VME tab is displayed, as shown below:

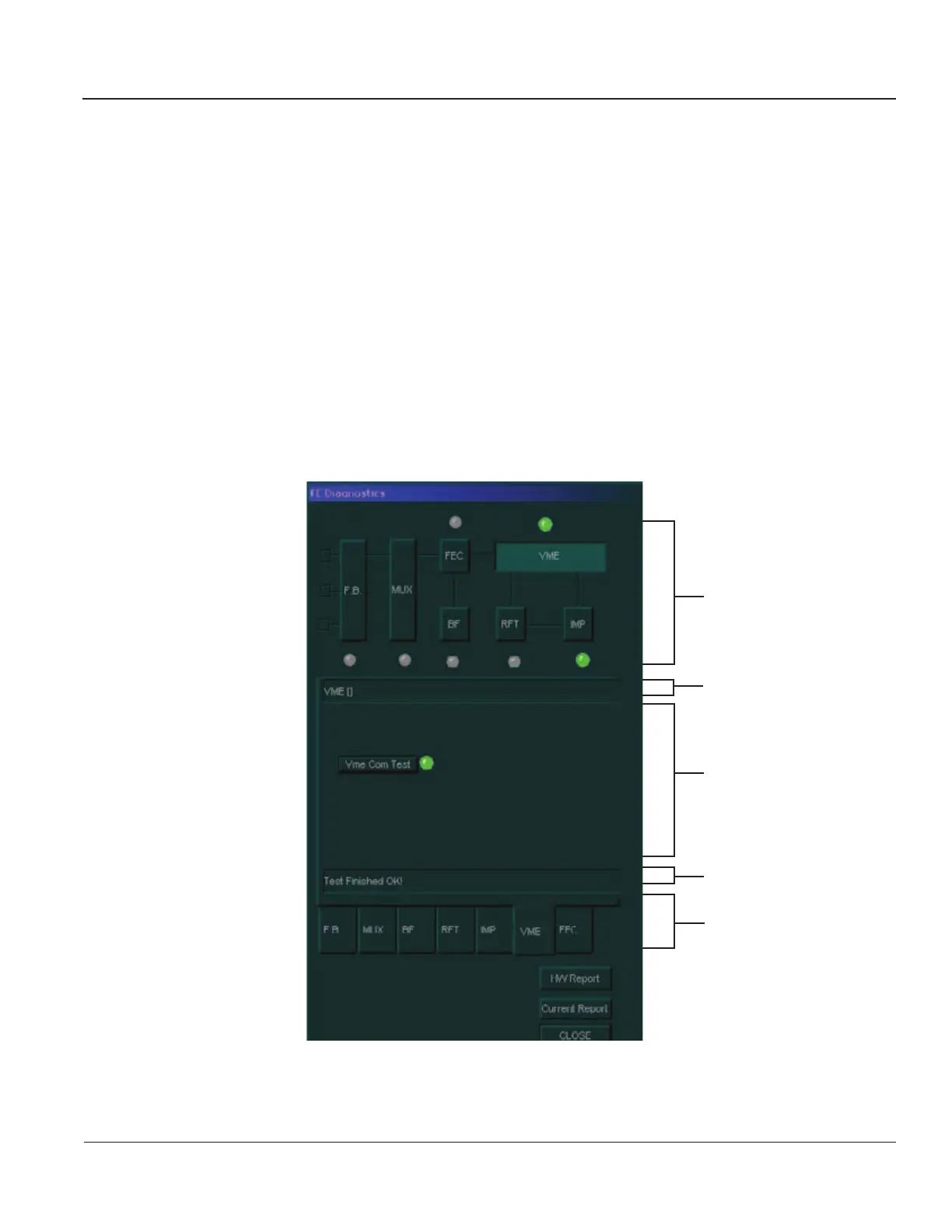

Figure 7-8 VME Tab - FE Diagnostics Dialog Box
Data Flow Map
Test Description Area
Test Area
Comment Area
Tabs
