GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
6-4 Section 6-3 - Front End Voltages and Signal Indicators
The LEDs for each of the boards in the Front End Crate are summarized in the following subsections.
The LEDs are listed as viewed from the top of the board, when positioned in the Front End Crate.
Note: The front end voltages can be measured at the front of the Front Board (FB) using the voltage
test points.

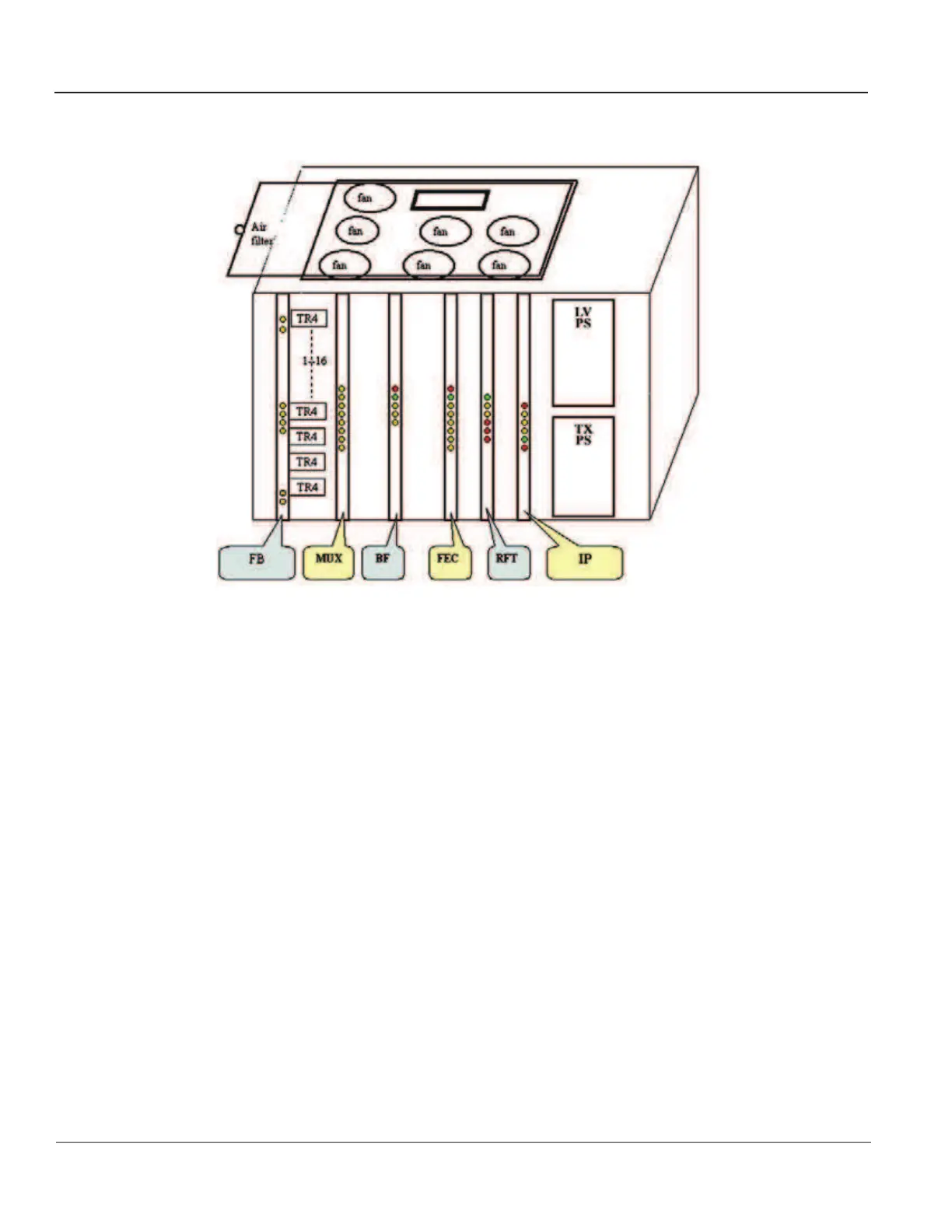

Figure 6-2 Front End Crate LEDs - RFT Configuration
