GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
7-12 Section 7-3 - Performing Front End (FE) Diagnostics
5) Review the test results in the Comment area and proceed as follows:
• If no problems were identified, proceed to re-boot the system, as prompted (
Figure 7-6, above).
• If no problems were identified but the problem persists, contact your local GE Medical Systems
field engineer for assistance.
• If errors were identified but the results were marginal, perform calibration, as described in the
Calibration section, on page 6-14, and then repeat the RFI test.
• If errors were identified and the results were not marginal, verify that the RFI cables are
connected and functioning properly, as described in Chapter 5 - Components and Function
(Theory)
. If the problem persists, contact your local GE Medical Systems field engineer for
assistance.

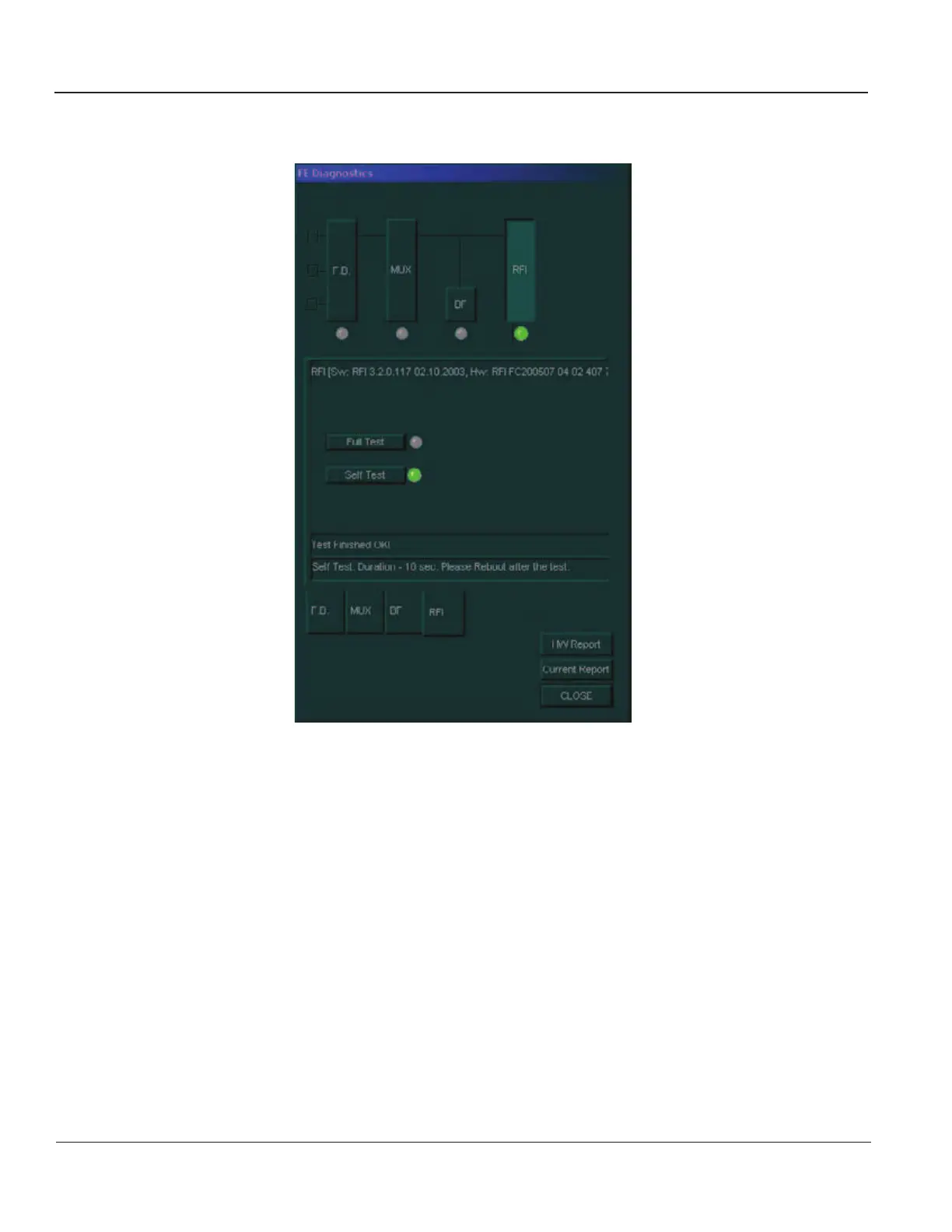

Figure 7-6 RFI Tab - Self Test Complete
