GE Vivid 3

GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
Chapter 3 - Installation 3-11
8) Pull out and remove the monitor support (item 10 in Figure 3-9 below) from under the base of the
monitor.

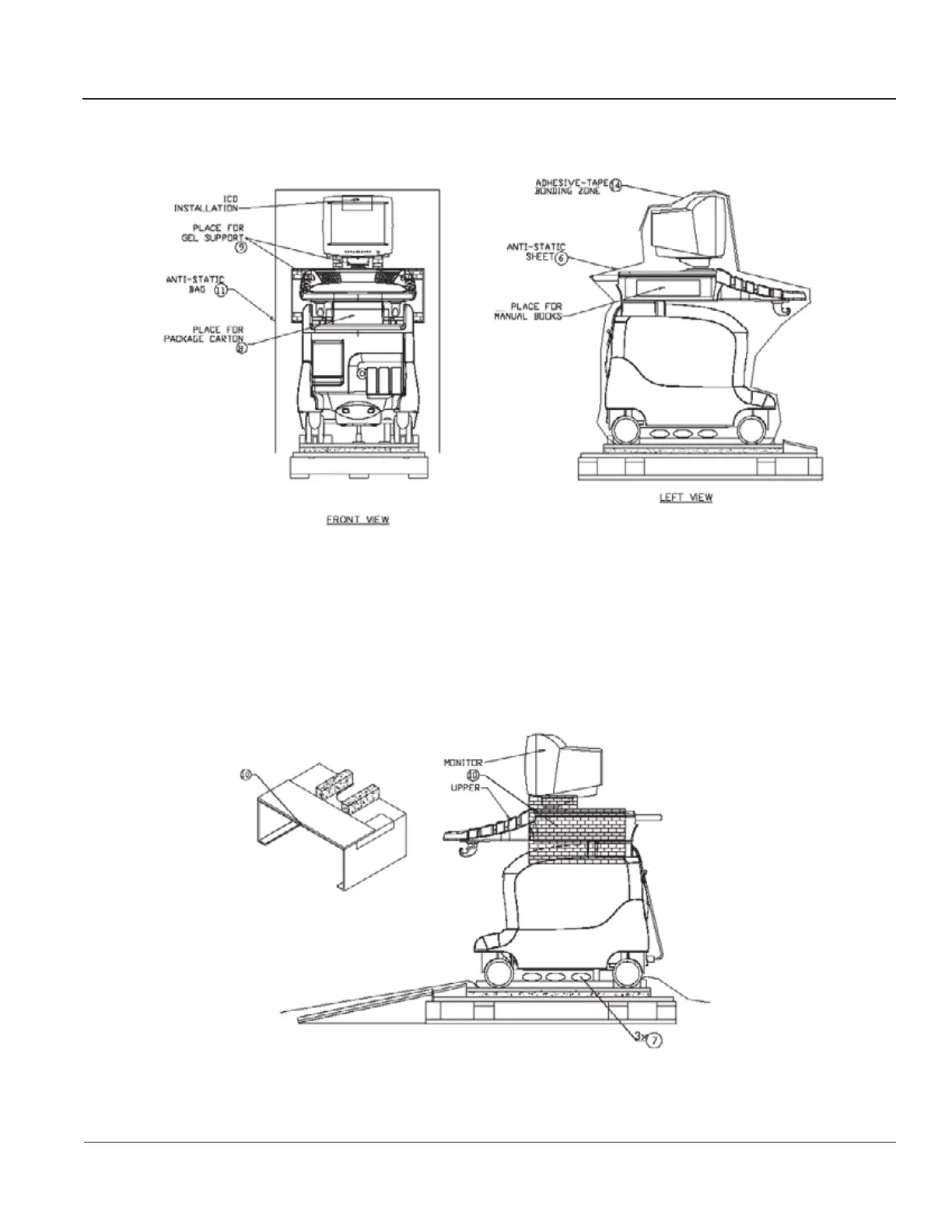

Figure 3-8 Front and Side View of the Unit in the Shipping Carton
Figure 3-9 Unit in Shipping Carton - Right View
