GE Vivid 3

GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
3-30 Section 3-5 - Completing the Hardware Installation
Note: For optimal ECG operation, use only electrodes that meet universal standards - see Table 3-16.

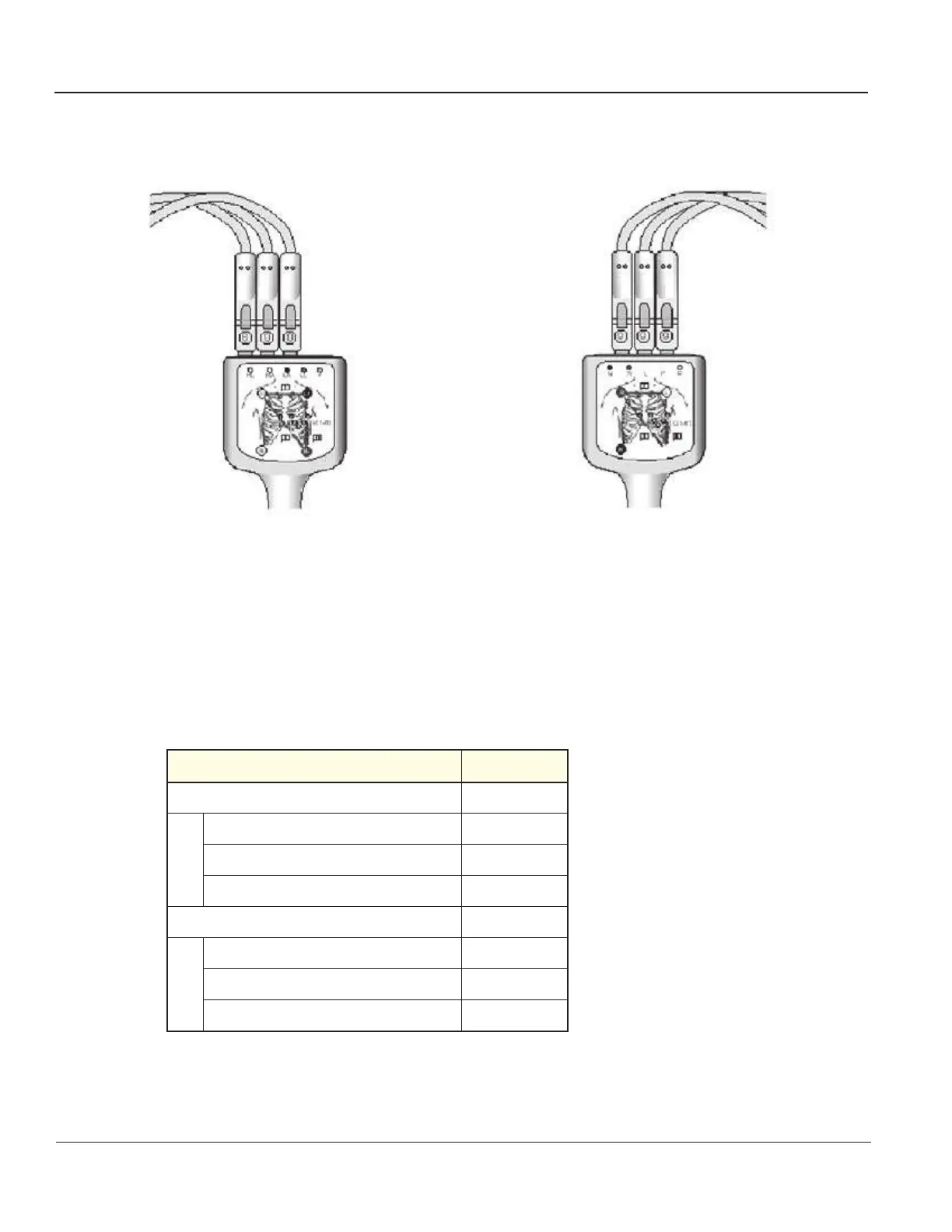

Figure 3-18 ECG Cable and Electrode Placement
Table 3-16 ECG Cable Types
Description Part No.
Full ECG Cable Kit - AHA (Americas, Japan) 2256477
Black wire (LA) 2269982-3
White wire (RA) 2269982
Green wire (RL) 2269982-2
Full ECG Cable Kit - IEC (Europe, Asia, ROW) 2256478
Yellow wire (L) 2269983
Red wire (R) 2269983-3
Black wire (N) 2269983-2
AHA (Americas, Japan)
IEC (Europe, Asia, ROW)
