3-24 Section 3-6 - Completing the Set Up
3-6-3 Power Off / Shutdown
3-6-3-1 Back-end Processor Power Down
1.) Press the ON/OFF Standby switch left below the Control Panel. see: Figure 3-23.
3-6-3-2 Scanner Shutdown
1.) Press the ON/OFF Standby switch left below the Control Panel.
2.) Switch OFF the Circuit Breaker at the rear of the system.
NOTE: The mains outlet of the system for peripheral auxiliary equipment are commonly switched with the
Standby switch. So the auxiliary equipment need not to be switched ON/OFF separately.
3.) After complete power down, unscrew the 2 screws and remove the pull-out protection to disconnect
the main power cable from the system or unplug it from the AC wall outlet socket.
4.) Press once on the brakes to block the front wheels (brakes on front wheels under the foot rest).
5.) Prior to disconnect a probe freeze the image.
6.) Disconnect probes. (Turn the probe locking handle counterclockwise and then pull the connector
straight out of the probe port.)
7.) If required, open the right-hand side door, remove the probe cable from the cable holder and then
close the door.
NOTICE
!! NOTICE:
After turning off a system, wait at least 10 seconds before turning it on again.
The system may not be able to boot if power is recycled too quickly.
WARNINGWARNING
!! WARNING:
Disconnection of the Main Power Cable is necessary!
For Example: When repairing the system.

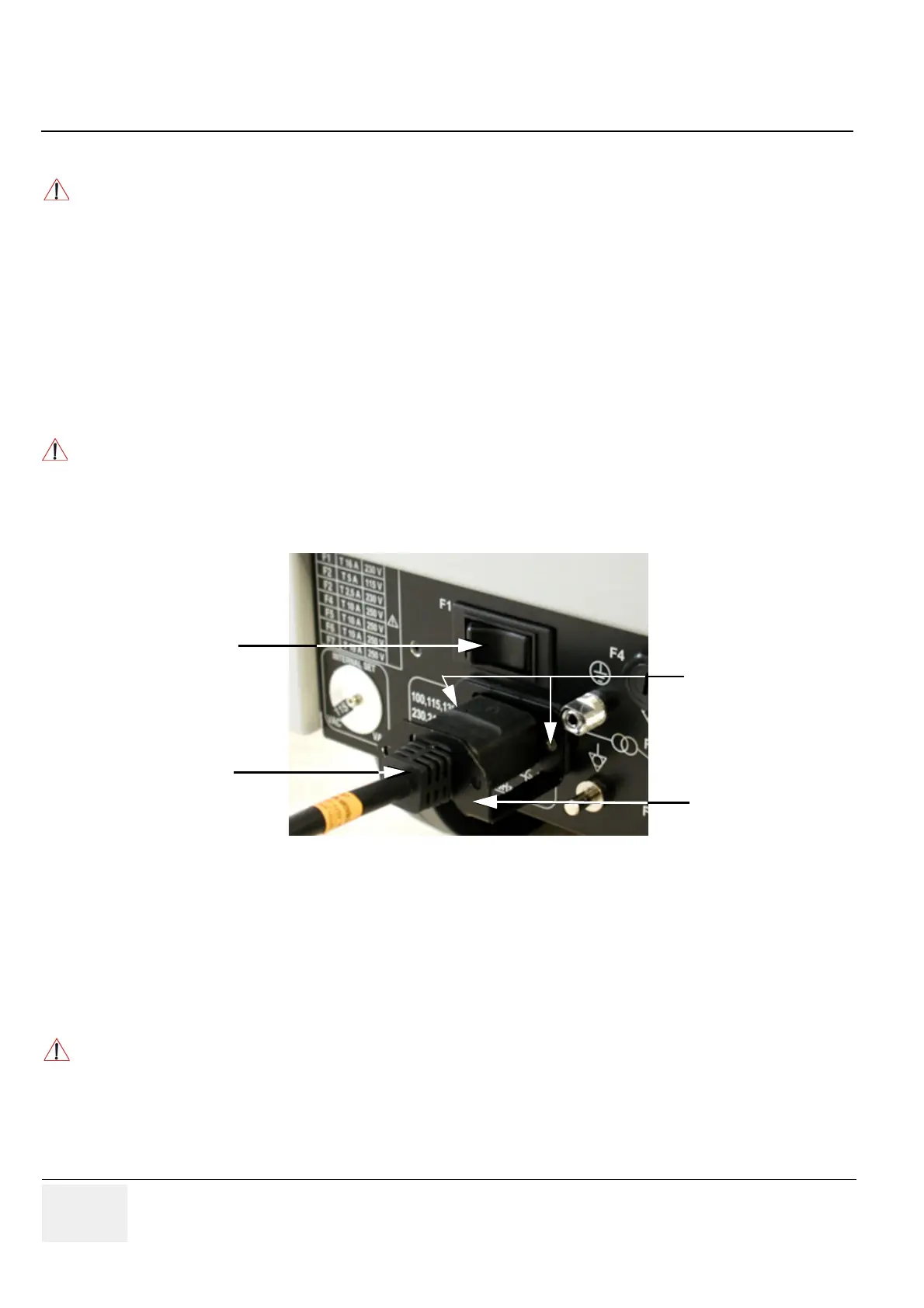

Figure 3-24 Circuit Breaker, Protection and Power Cable on back of Voluson® 730Expert
CAUTION
!! CAUTION:
DO NOT disconnect a probe while running (Live Scan “Write” mode)!
A software error may occur. In this case switch the unit OFF (perform a reset).
Circuit Breaker
Mains Power Cable
pull-out Protection
2 screws
