3-7-4-2 UP-D21MD / UP-D23MD - Printer Settings (cont’d)
3.) Select the
GRAPHICS page. From the “Color Adjust” pop-up menu select:
a.) Color Balance: Cyan = 0; Magenta = 0; Yellow = 0
b.) Gamma Select: Gamma 1
c.) Color Correction: set Printer Hardware Color Correction
d.) Lightness: Sharpness = 7 or 8; Dark = 0; Gamma = -12; Light = 8
4.) For saving the adjusted printer settings click APPLY
and then OK.
Finally close the ‘Printers’-window with the close button and exit System Setup with SAVE&EXIT
.
5.) Assign the Printer to remote keys PRINT A
and/or PRINT B; see: Section 3-7-5 on page 3-40.

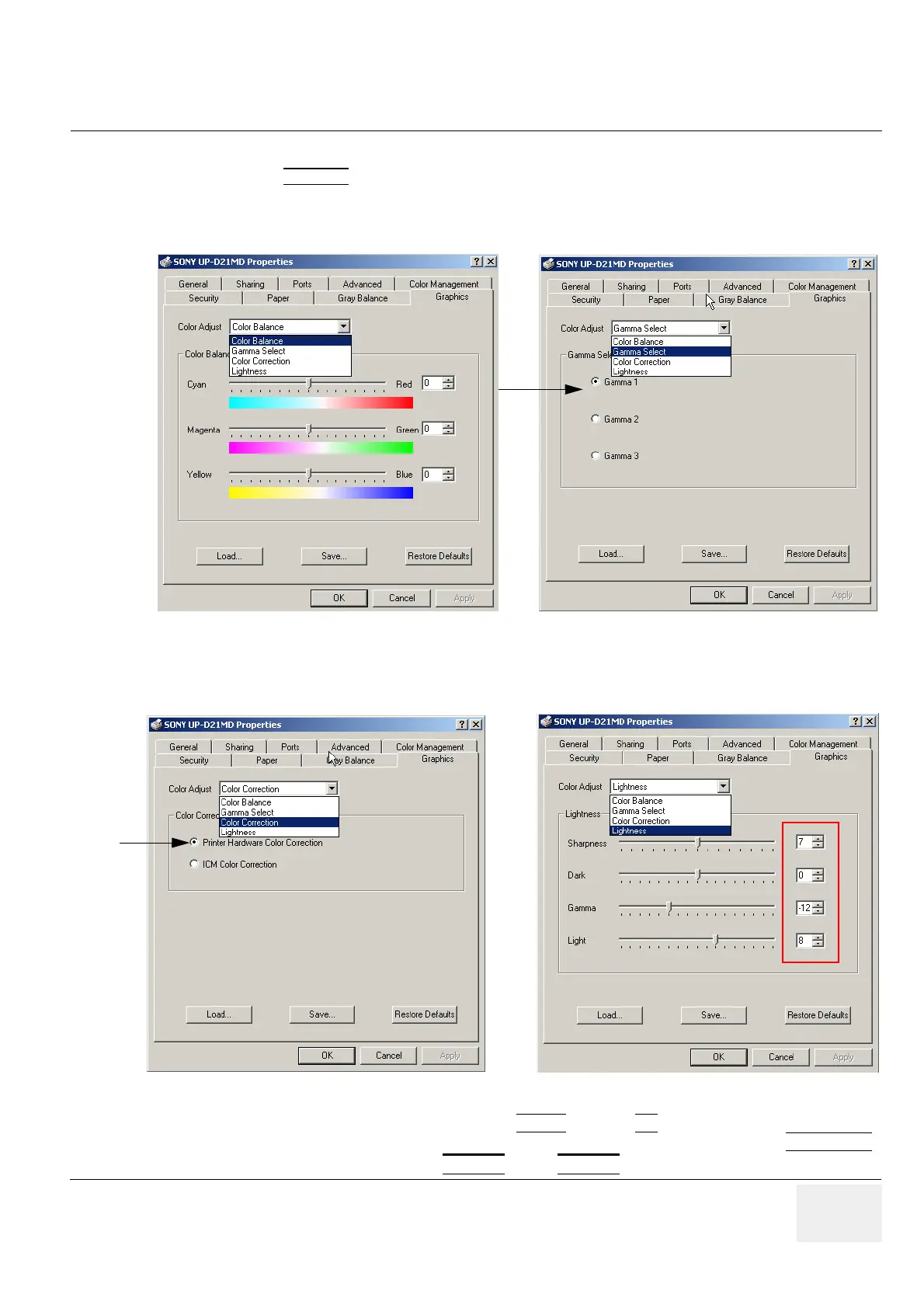

Figure 3-45 Graphics page (Color Balance + Gamma Select)
Figure 3-46 Graphics page (Color Correction + Lightness)
