GE WCVH6260 - Troubleshooting Performance Issues

– 20 –

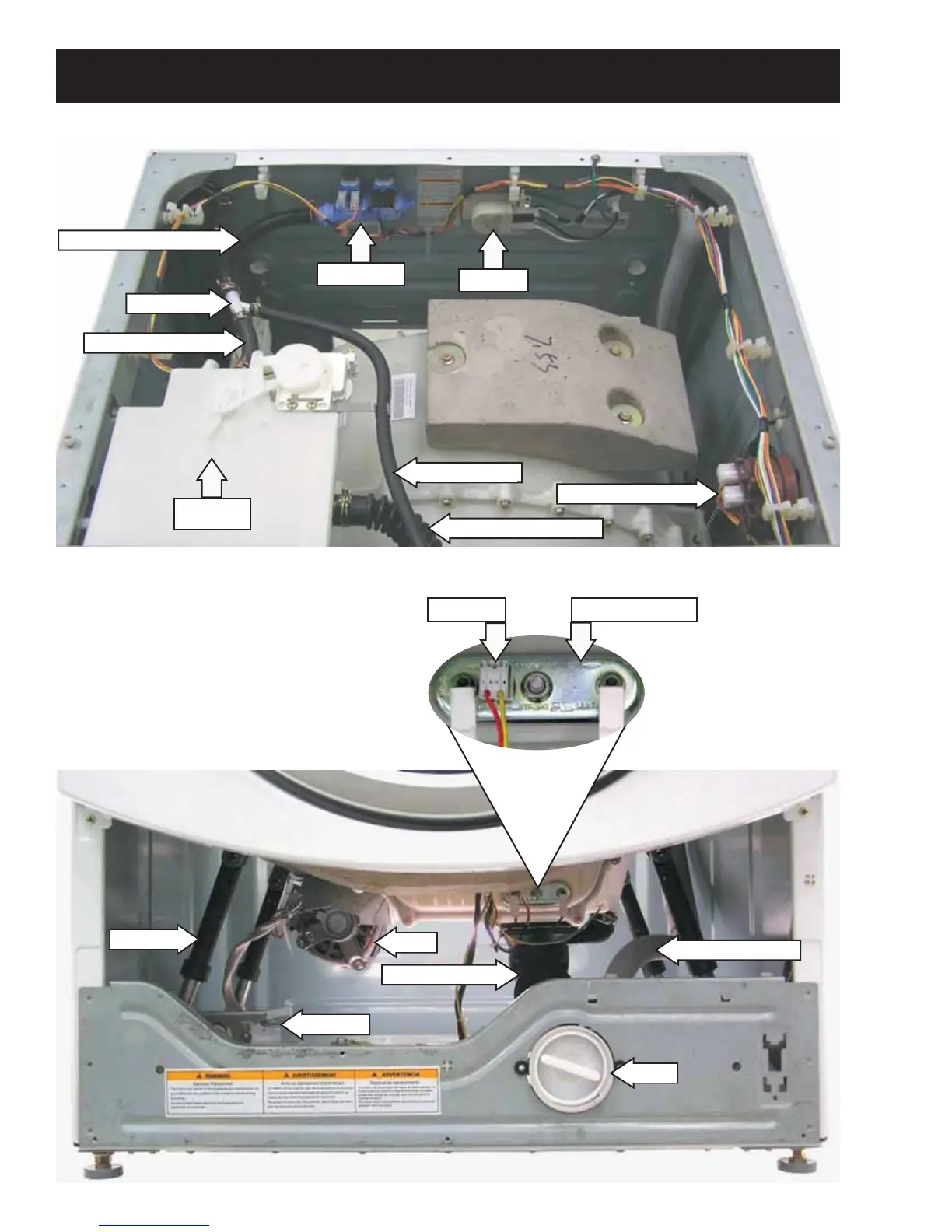

Component Locator Views
Thermistor
Heating Element
Pump Outlet Hose
Tub Drain Hose
Pump
Damper
Inverter
Motor
Water Level Control
Water Valve
Line Filter
Dispenser Inlet Hose
Dispenser Vent Hose
Nozzle Hose
Water Valve Outlet Hose
3-Way Pipe
Dispenser
Assembly
(Continued Next Page)
Top View
Front View
