Disconnect the heater assembly wires.
Remove the plastic wire tie that holds the heater
assembly wiring and the tub ground wire to the
outer tub.
Remove the front dampers from the outer tub.
(See Dampers.)
Remove the 26 (8-mm) hex-head screws from
the perimeter of the outer tub.
11.
12.
13.
14.
Press the 2 tabs located on the sides of the
outer tub inward and remove the outer tub front
half.
Note:
Install new outer tub seal (Part # WH08X10023)
whenever tub halves have been separated. Use
a torque wrench to tighten the 26 tub screws to
45 in. lbs of torque.
When installing outer tub front half, ensure
heater is inserted inside the bracket attached
to the rear half of the outer tub. (See
Heater
Assembly.)
Pull the wash basket out of the outer tub rear
half.
15.
•
•
16.
Tape
Tape
Note: To make installation of the front bottom
counterweight easier, secure the placement of the
bottom bolts with electrical tape.
Beveled Edges
Installing Front Counterweights

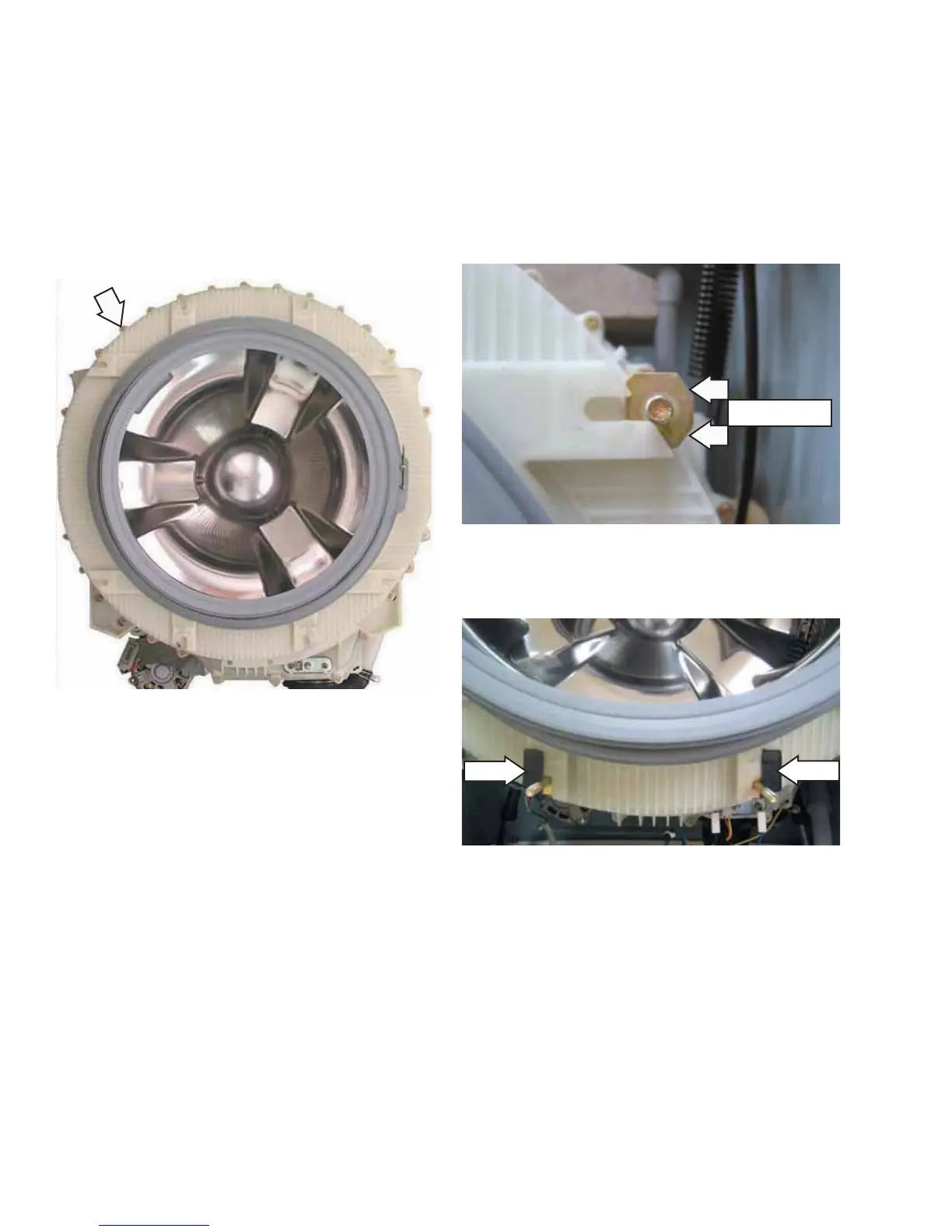

When installing the front counterweights, make
sure the short bolts are used to attach the top
counterweight and the long bolts are used to attach
the bottom counterweight. Insert the bolts into the
slots with beveled edges outward.
Use a torque wrench to tighten the 8 (10-mm) nuts
to 142 in. lbs of torque.
