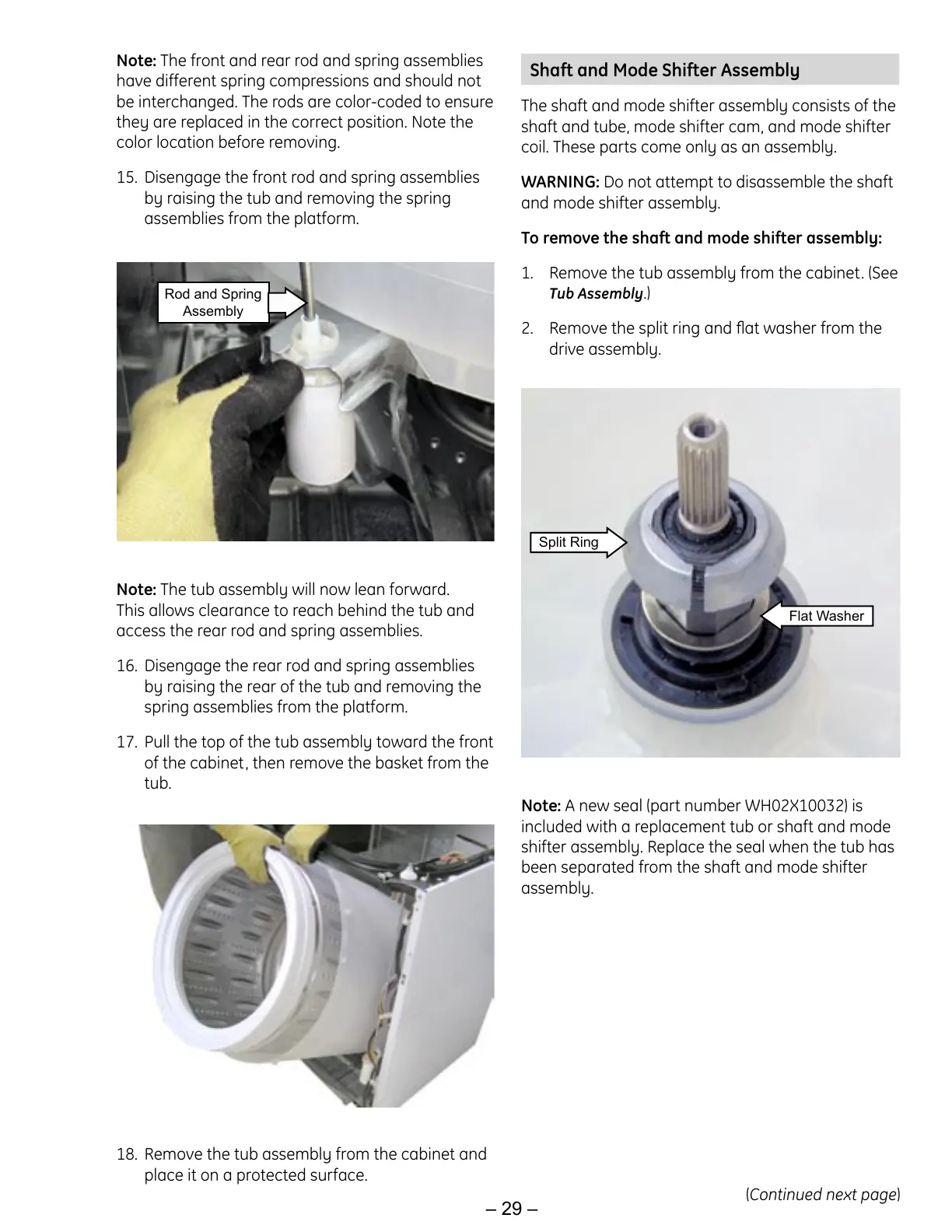

– 29 –
Note: The tub assembly will now lean forward.
This allows clearance to reach behind the tub and
access the rear rod and spring assemblies.
Disengage the rear rod and spring assemblies
by raising the rear of the tub and removing the
spring assemblies from the platform.
Pull the top of the tub assembly toward the front
of the cabinet, then remove the basket from the
tub.
16.
17.
Note: The front and rear rod and spring assemblies
have different spring compressions and should not
be interchanged. The rods are color-coded to ensure
they are replaced in the correct position. Note the
color location before removing.
Disengage the front rod and spring assemblies
by raising the tub and removing the spring
assemblies from the platform.
15.
Remove the tub assembly from the cabinet and
place it on a protected surface.
18.
Rod and Spring
Assembly
Shaft and Mode Shifter Assembly
The shaft and mode shifter assembly consists of the
shaft and tube, mode shifter cam, and mode shifter
coil. These parts come only as an assembly.
WARNING: Do not attempt to disassemble the shaft
and mode shifter assembly.
To remove the shaft and mode shifter assembly:
Remove the tub assembly from the cabinet. (See
Tub Assembly.)
Remove the split ring and flat washer from the
drive assembly.
1.
2.
Split Ring
Flat Washer
Note: A new seal (part number WH02X10032) is
included with a replacement tub or shaft and mode
shifter assembly. Replace the seal when the tub has
been separated from the shaft and mode shifter
assembly.
(Continued next page)
