– 17 –

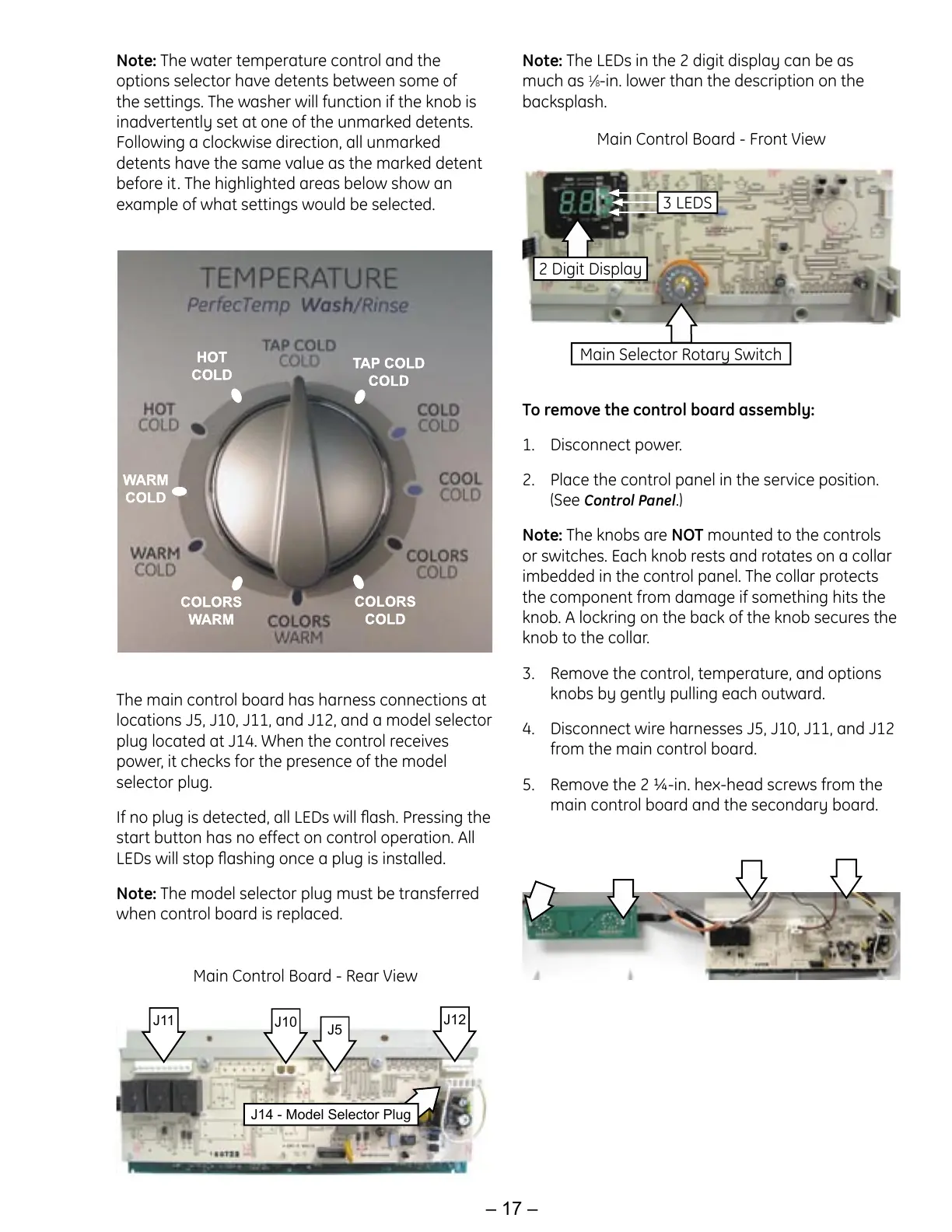

To remove the control board assembly:
Disconnect power.
Place the control panel in the service position.
(See Control Panel.)
Note: The knobs are NOT mounted to the controls
or switches. Each knob rests and rotates on a collar
imbedded in the control panel. The collar protects
the component from damage if something hits the
knob. A lockring on the back of the knob secures the
knob to the collar.
Remove the control, temperature, and options
knobs by gently pulling each outward.
Disconnect wire harnesses J5, J10, J11, and J12
from the main control board.
Remove the 2 ¼-in. hex-head screws from the
main control board and the secondary board.
1.
2.
3.
4.
5.
J5
J10
J11
J12
The main control board has harness connections at
locations J5, J10, J11, and J12, and a model selector
plug located at J14. When the control receives
power, it checks for the presence of the model
selector plug.
If no plug is detected, all LEDs will fl ash. Pressing the
start button has no effect on control operation. All
LEDs will stop fl ashing once a plug is installed.
Note: The model selector plug must be transferred
when control board is replaced.
Main Control Board - Rear View
Main Control Board - Front View
Main Selector Rotary Switch
3 LEDS
2 Digit Display
Note: The water temperature control and the
options selector have detents between some of
the settings. The washer will function if the knob is
inadvertently set at one of the unmarked detents.
Following a clockwise direction, all unmarked
detents have the same value as the marked detent
before it. The highlighted areas below show an
example of what settings would be selected.
J14 - Model Selector Plug
Note: The LEDs in the 2 digit display can be as
much as
1
/
8
-in. lower than the description on the
backsplash.
