– 18 –

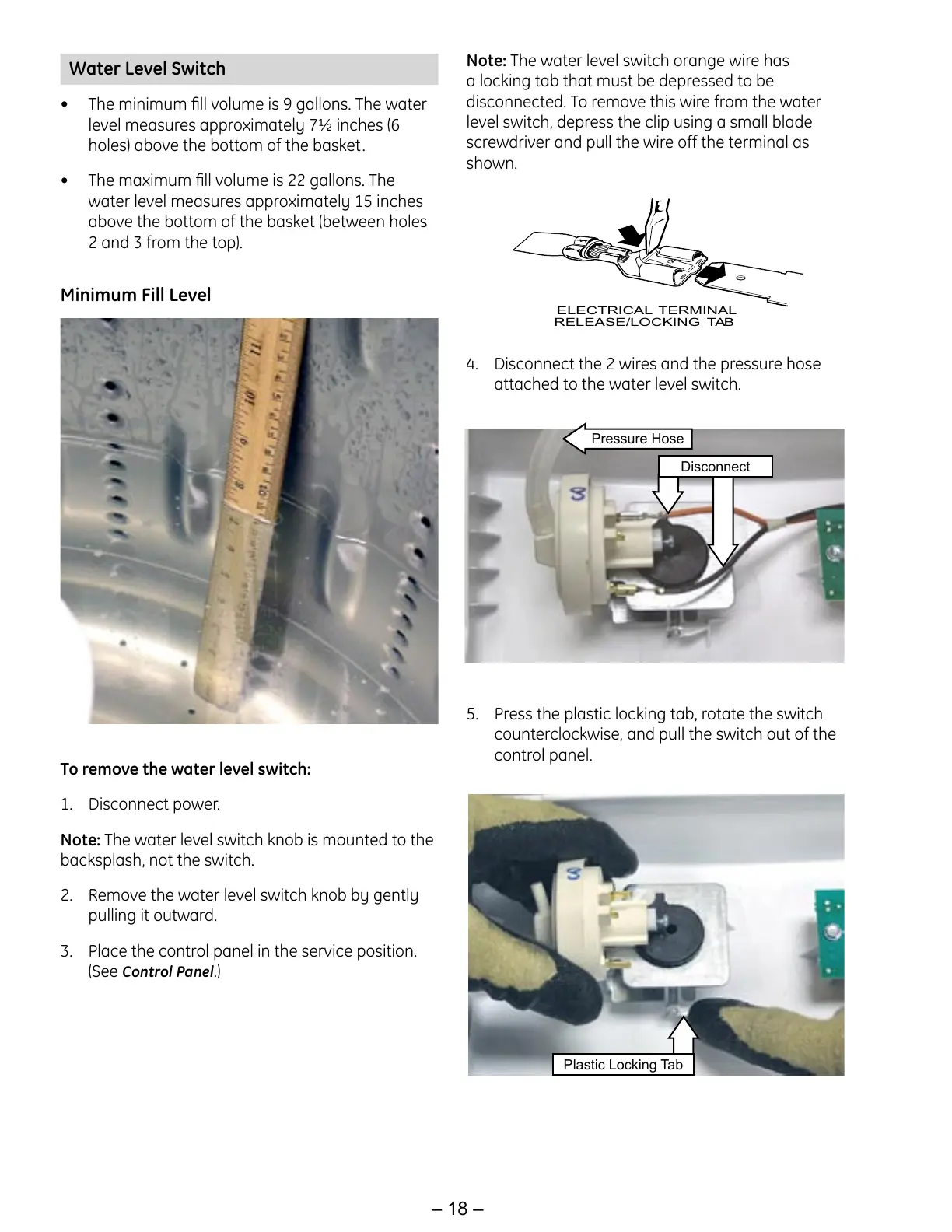

Water Level Switch
The minimum fill volume is 9 gallons. The water
level measures approximately 7½ inches (6
holes) above the bottom of the basket.
The maximum fill volume is 22 gallons. The
water level measures approximately 15 inches
above the bottom of the basket (between holes
2 and 3 from the top).
•
•
Disconnect the 2 wires and the pressure hose
attached to the water level switch.
4.
Pressure Hose
Disconnect
Plastic Locking Tab
Press the plastic locking tab, rotate the switch
counterclockwise, and pull the switch out of the
control panel.
5.
To remove the water level switch:
Disconnect power.
Note: The water level switch knob is mounted to the
backsplash, not the switch.
Remove the water level switch knob by gently
pulling it outward.
Place the control panel in the service position.
(See Control Panel.)
1.
2.
3.
Minimum Fill Level
Note: The water level switch orange wire has
a locking tab that must be depressed to be
disconnected. To remove this wire from the water
level switch, depress the clip using a small blade
screwdriver and pull the wire off the terminal as
shown.
