– 19 –

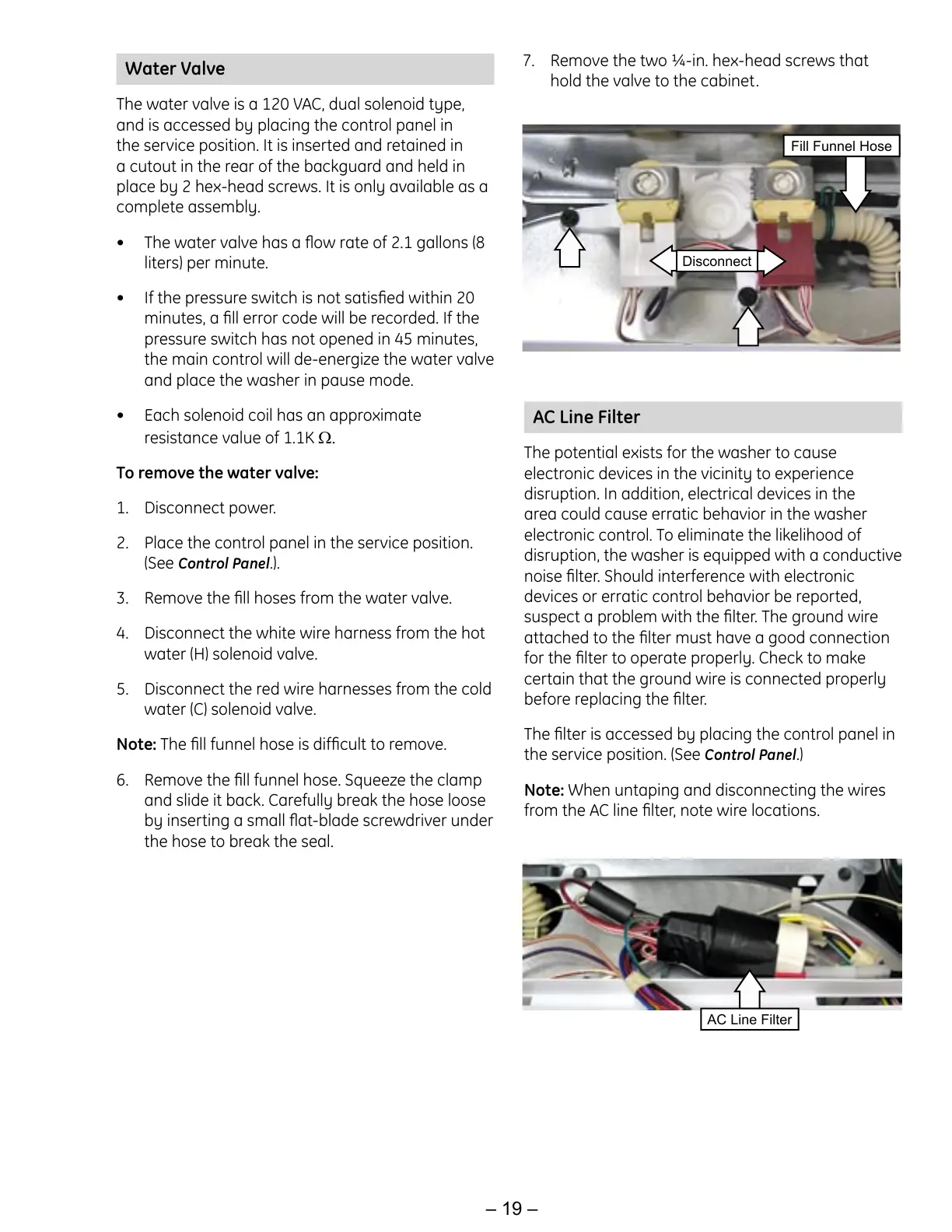

Water Valve
The water valve is a 120 VAC, dual solenoid type,
and is accessed by placing the control panel in
the service position. It is inserted and retained in
a cutout in the rear of the backguard and held in
place by 2 hex-head screws. It is only available as a
complete assembly.
The water valve has a flow rate of 2.1 gallons (8
liters) per minute.
If the pressure switch is not satisfied within 20
minutes, a fill error code will be recorded. If the
pressure switch has not opened in 45 minutes,
the main control will de-energize the water valve
and place the washer in pause mode.
Each solenoid coil has an approximate
resistance value of 1.1K Ω.
To remove the water valve:
Disconnect power.
Place the control panel in the service position.
(See Control Panel.).
Remove the fill hoses from the water valve.
Disconnect the white wire harness from the hot
water (H) solenoid valve.
Disconnect the red wire harnesses from the cold
water (C) solenoid valve.
Note: The fill funnel hose is difficult to remove.
Remove the fill funnel hose. Squeeze the clamp
and slide it back. Carefully break the hose loose
by inserting a small flat-blade screwdriver under
the hose to break the seal.
•
•
•
1.
2.
3.
4.
5.
6.
Disconnect
Fill Funnel Hose
Remove the two ¼-in. hex-head screws that
hold the valve to the cabinet.
7.
AC Line Filter
The potential exists for the washer to cause
electronic devices in the vicinity to experience
disruption. In addition, electrical devices in the
area could cause erratic behavior in the washer
electronic control. To eliminate the likelihood of
disruption, the washer is equipped with a conductive
noise filter. Should interference with electronic
devices or erratic control behavior be reported,
suspect a problem with the filter. The ground wire
attached to the filter must have a good connection
for the filter to operate properly. Check to make
certain that the ground wire is connected properly
before replacing the filter.
The filter is accessed by placing the control panel in
the service position. (See
Control Panel
.)
Note: When untaping and disconnecting the wires
from the AC line filter, note wire locations.
AC Line Filter
To Next Page
