– 32 –

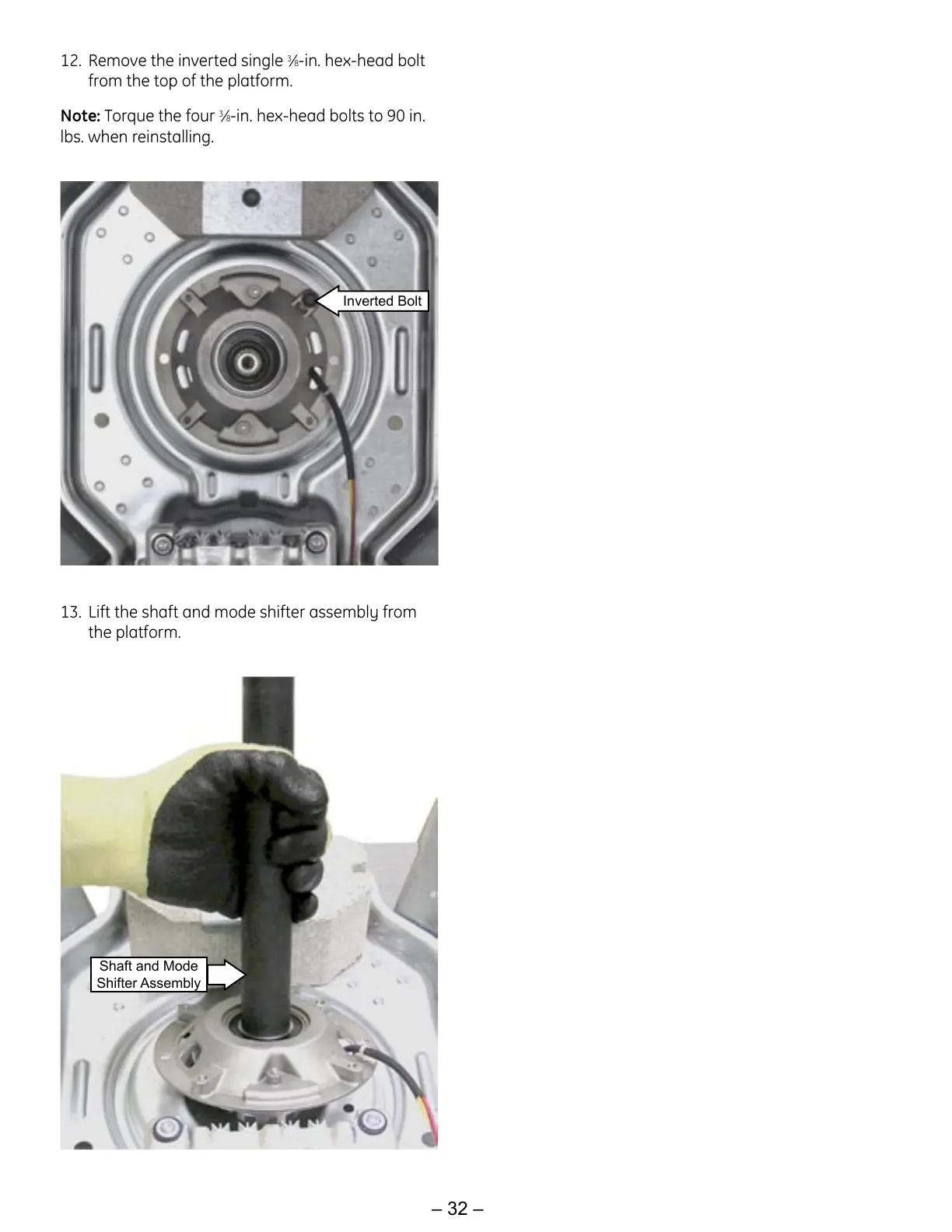

Lift the shaft and mode shifter assembly from
the platform.
13.
Shaft and Mode
Shifter Assembly
Remove the inverted single
3
/ 8 -in. hex-head bolt
from the top of the platform.
Note: Torque the four
3
/ 8 -in. hex-head bolts to 90 in.
lbs. when reinstalling.
12.
Inverted Bolt
