– 38 –
When excessive stop time is encountered, more than 25 seconds, the LED blinks once for ¼ second and
then off for the remainder of a 6 second period.
When a broken coupling or slipping belt is detected, the LED blinks twice at a rate of ¼ second on and ¼
second off for the remainder of a 6 second period.
When an inverter ROM checksum error is detected, the LED blinks 3 times at a rate of ¼ second on and
¼ second off for the remainder of a 6 second period.
When a mode shifter error occurs, the LED blinks 4 times at a rate of ¼ second on and ¼ second off for
the remainder of a 6 second period. The motor continues to operate with this error.
When a locked rotor is detected, the washer will sit idle for 15 seconds and retry. If the motor does not
operate after 3 tries, the LED blinks 6 times at a rate of ¼ second on and ¼ second off for the remainder
of a 6 second period.
When a lid error is detected by the lid switch counter, 4 agitate/spin pairs with no change in state of lid
switch, the LED blinks 7 times at a rate of ¼ second on and ¼ second off for the remainder of a 6 second
period.
When an over temperature condition is detected in motor, the LED blinks 8 times at a rate of ¼ second
on and ¼ second off for the remainder of a 6 second period. The motor continues to operate at reduced
performance levels.
When a brake resistor circuit error is detected in motor, the LED blinks 9 times at a rate of ¼ second on
and ¼ second off for the remainder of a 6 second period. Maximum spin speed is limited to 50 RPM.
Critical Errors, #1, #2, & #7, will prevent inverter/motor from operating.
To clear errors, disconnect power until an audible clicking sound is heard when the inverter capacitor
discharges (approximately 15 seconds). Open and close the lid 5 or more times in any 12 second period
within the first 30 seconds of power-up. Errors will not clear if washer is in either agitate or spin mode.
•
•
•
•
•
•
•
•
•

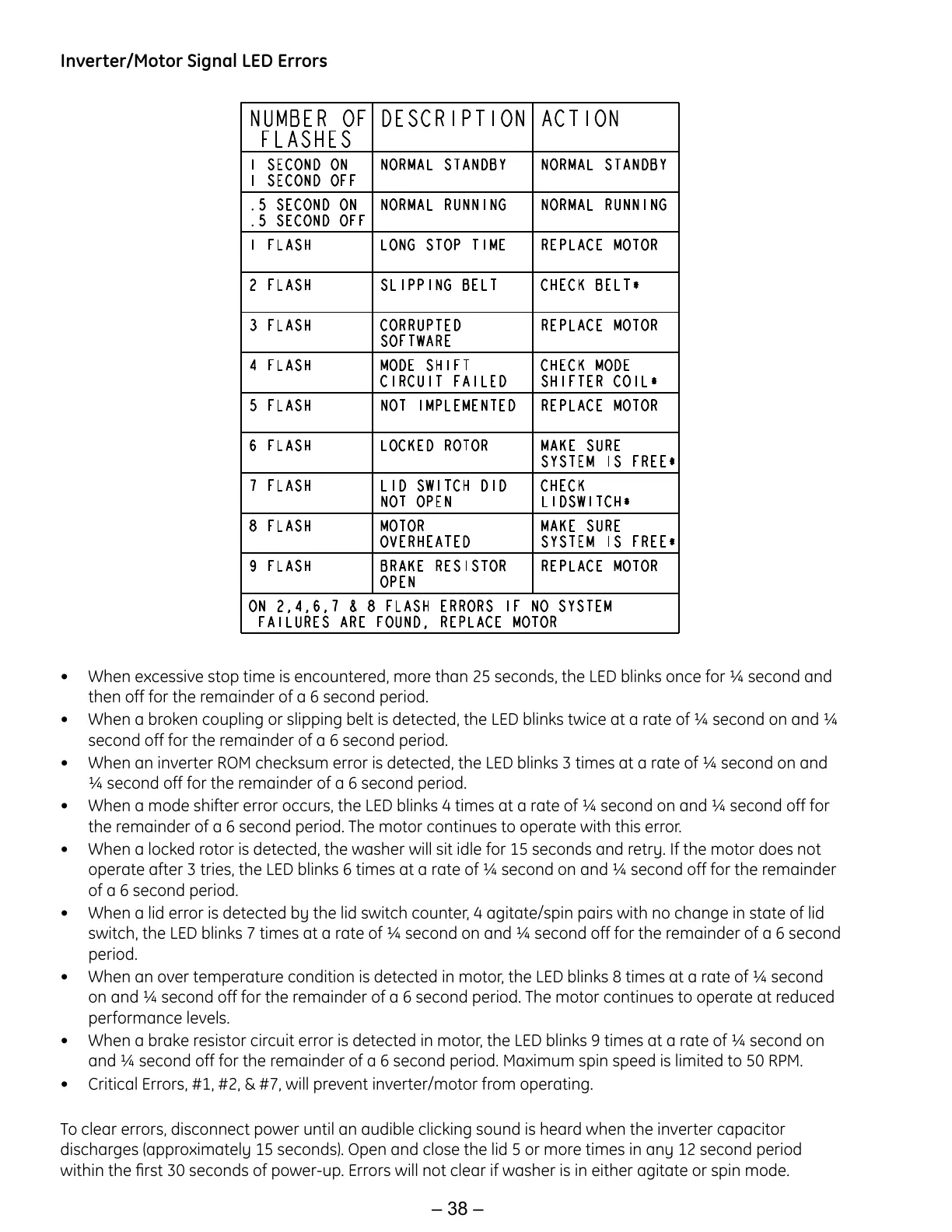

Inverter/Motor Signal LED Errors
