GE XL44 JGBP79 - Range Gas Hookup Options; Flexible Connector Hookup; Rigid Pipe Hookup Options

Installation of the range.
Read these instructions completely and carefully.

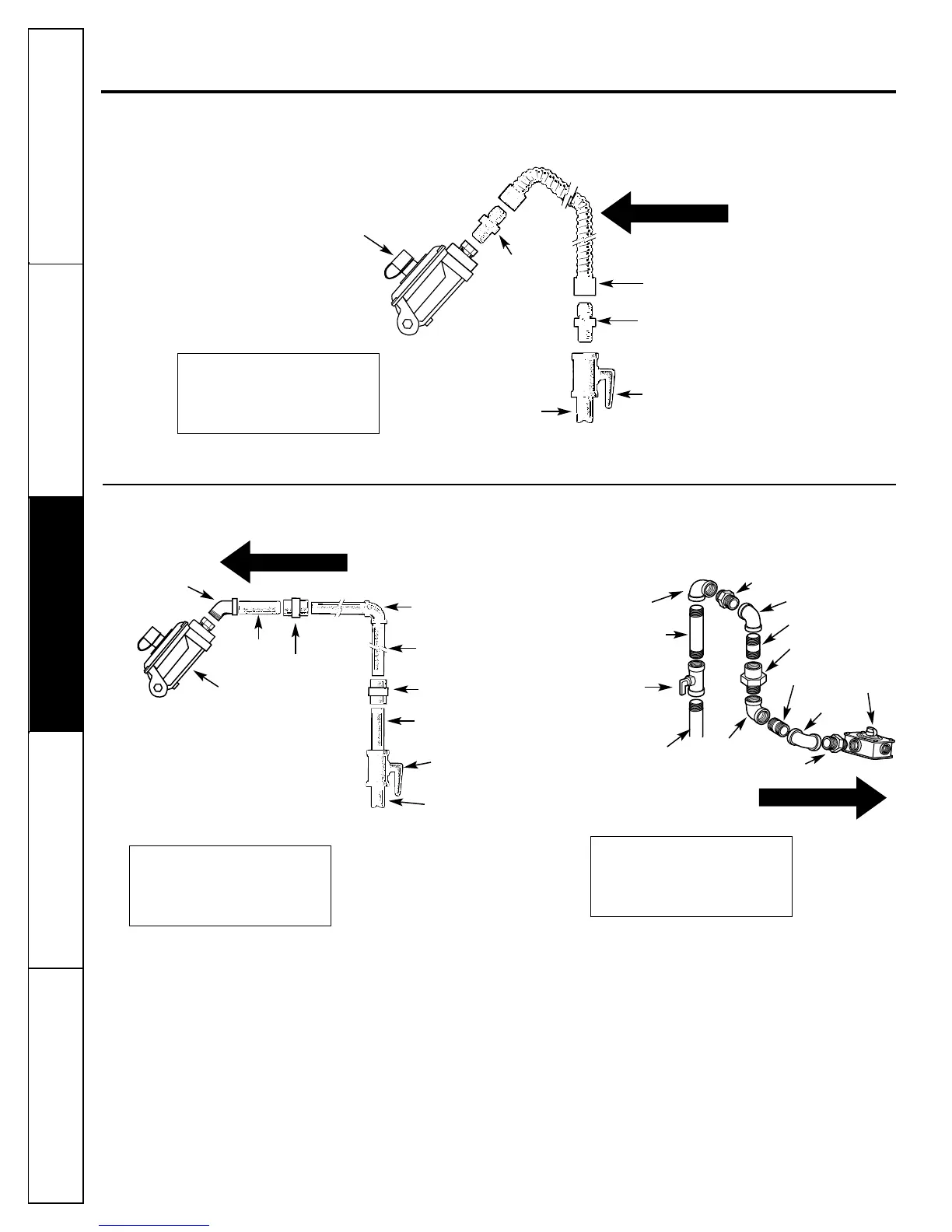

Rigid Pipe Hookup Options
Installer: Inform the
consumer of the location
of the gas shutoff valve.
Operating Instructions
40
Safety InstructionsInstallation InstructionsTroubleshooting Tips
Consumer Support
Pressure
regulator
Gas Flow into Range
Flex
connector
(6 ft. max.)
Adapter
1/2″ or 3/4″
Gas pipe
Adapter
Gas
shut-off
valve
Pressure
regulator
45° Elbow
Nipple
Union
90° Elbow
Black
iron pipe
Union
Nipple
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Gas Flow into Range
Gas Flow into Range
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Pressure
regulator
Nipple
90° Elbow
90° Elbow
Adapter
Adapter
90° Elbow
Quick connect
or union
Alternate Hookup
Nipple
Nipple
90°
Elbow
Installer: Inform the
consumer of the location
of the gas shutoff valve.
Flexible Connector Hookup
Installer: Inform the
consumer of the location
of the gas shutoff valve.
