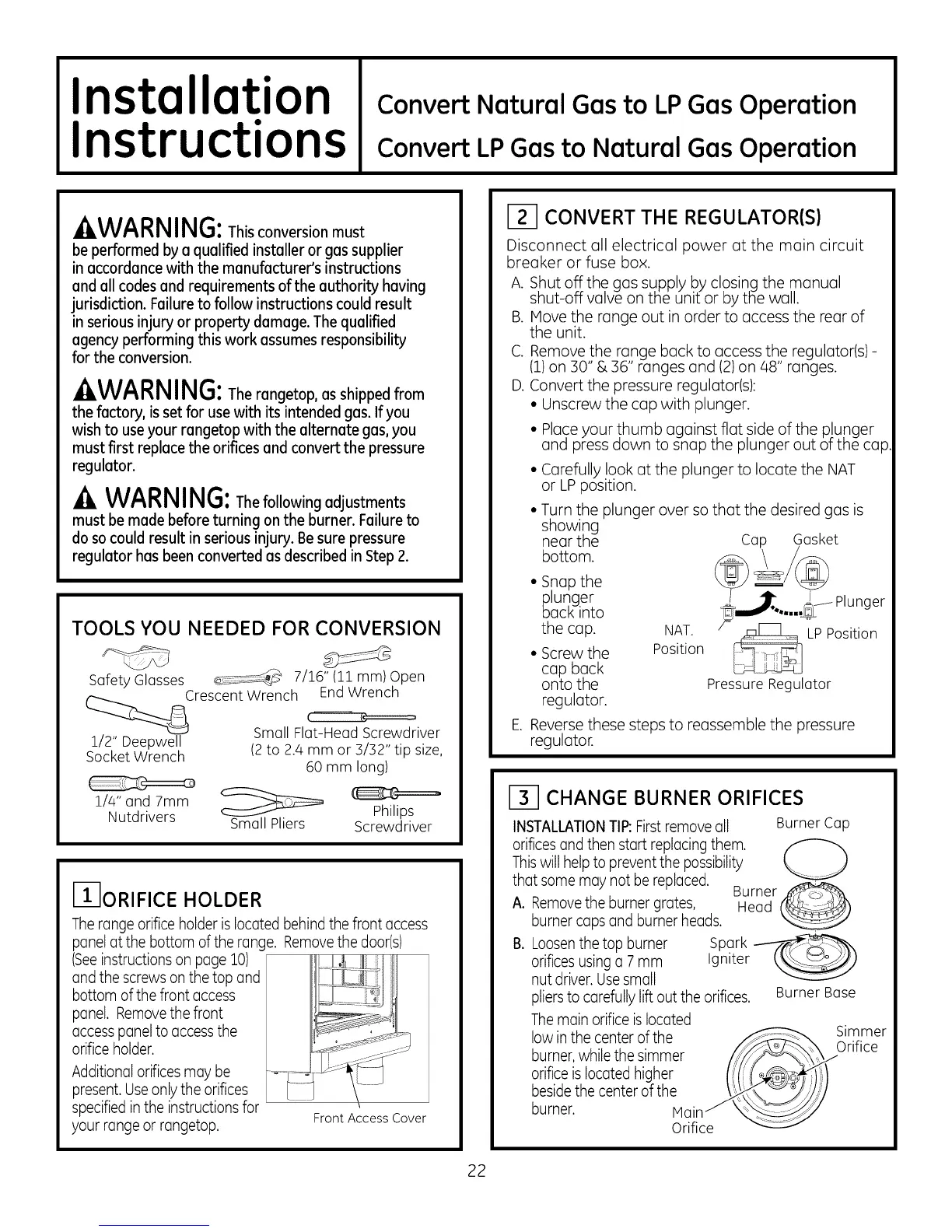

IInstallat.ion 1 Convert Natural Gasto LPGasOperation
nstruCtl Ons Convert LPGasto Natural GasOperation
-AWARNING:This conversion must
be performed by a qualified installer or gas supplier
in accordance with the manufacturer's instructions
and all codes and requirements of the authority having
jurisdiction. Failure to follow instructions could result
in serious injury or property damage. The qualified
agency performing this work assumes responsibility
for the conversion.
_AWARNING:The rangetop, as shipped from
the factory, is set for use with its intended gas. If you
wish to useyour rangetop with the alternate gas,you
must first replace the orifices and convert the pressure
regulator.
-A WARNING:Thefollowing adjustments
must be made before turning on the burner. Failure to
do socould result in serious injury. Be sure pressure
regulator has been converted asdescribed in Step2.
TOOLS YOU NEEDED FOR CONVERSION
Safety Glosses 7/16" (ii mm) Open
Crescent Wrench End Wrench
Small Flat-Head Screwdriver
1/2" Deepwell
Socket Wrench (2 to 2.4 mm or :3/32" tip size,
60 mm long)
i/4" and 7mm
Nutdrivers
Philips
Small Pliers Screwdriver
FI-IORIFICE HOLDER
Therange orifice holder is located behind the front access
panel at the bottom of the rance. Removethe door(s)
(Seeinstructions on page 10)
and the screws on the top and
bottom of the front access
panel. Removethe front
access panel to accessthe
orifice holder.
Additional orificesmay be
present.Useonly the orifices
specifiedin the instructionsfor
your range or rangetop. Front Access Cover
_-I CONVERT THE REGULATOR(S)
Disconnect all electrical power at the main circuit
breaker or fuse box.
A. Shut off the gas supply by closing the manual
shut-off valve on the unit or by tl_ewall.
B. Move the range out in order to access the rear of
the unit.
C. Remove the range back to access the regulator(s) -
(i) on 30" & 36" ranges and (2)on 48" ranges.
D. Convert the pressure regulator(s):
• Unscrew the cap with plunger.
• Place your thumb against flat side of the pJupger
and press down to snap the plunger out of the cap.
• Carefully look at the plunger to locate the NAT
or LPposition.
• Turn the plunger over so that the desired gas is
showing
near the
bottom.
• Snap the
lunger
ack into
the cap.
• Screw the
cap back
onto the
regulator.
Cap Gasket
_ _--_ Plunger
_" .... 'L_r-
NAT. /_
Position
Position
Pressure Regulator
E. Reverse these steps to reassemble the pressure
regulator.
CHANGE BURNER ORIFICES
INSTALLATIONTIP:First remove all Burner Cap
orificesand then start replacing them.
Thiswill help to prevent the possibility
that some may not be replaced.
Burner
A. Removethe burner grates, Head
burner caps and burner heads.
B. Loosenthe top burner Spark
orifices usinga 7 mm Igniter
nut driver. Usesmall
pliersto carefully lift out the orifices. Burner Bose
Themain orifice is located
low in the center of the
burner,while the simmer
orifice is located higher
besidethe center of the
burner.
Orifice
Simmer
Orifice
22
