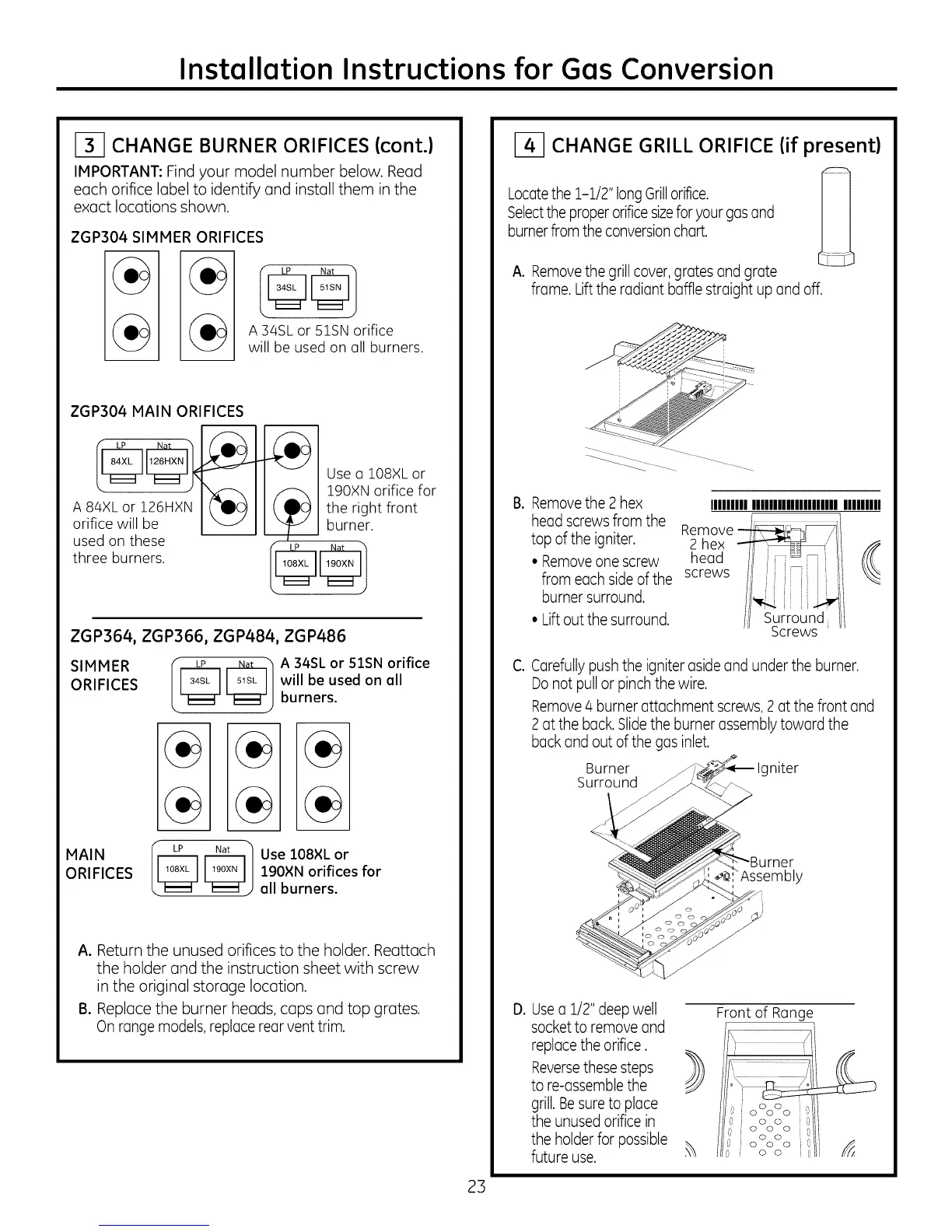

Installation Instructions for Gas Conversion
CHANGE BURNER ORIFICES (cont.)
IMPORTANT: Find your model number below. Read
each orifice label to identify and install them in the
exact locations shown.
ZGP304 SIMMER ORIFICES
A 34SL or 51SN orifice
will be used on all burners.
ZGP304 MAIN ORIFICES
Aor_cXeLjir,,I_6HXN I _ I L _,
used on these
three burners.
Use o 108XL or
190XN orifice for
the right front
burner.
ZGP364, ZGP366, ZGP484, ZGP486
SIMMER I_
ORIFICES
/
MAIN
ORIFICES
A 34SL or 51SN orifice
will be used on oll
burners.
I@@l Use 108×L or
190×N orifices for
oll burners.
A. Return the unused orifices to the holder. Reattach
the holder and the instruction sheet with screw
in the original storage location.
B. Replace the burner heads, caps and top grates.
On range models,replacerear vent trim.
23
E_ CHANGE GRILL ORIFICE (if present)
Locatethe 1-1/2" longGrillorifice.
Selectthe properorificesizeforyour gas and
burner from the conversionchart.
A. Removethe grill cover,grates and grate
Z]
frame. Lift the radiant baffle straight up and off.
iiiiiiiiii
B. Removethe 2 hex
head screwsfrom the
top of the igniter.
• Removeone screw
from each sideof the
burner surround.
• Lift out the surround.
IIIIIIIII IIIIIIIIIIIIIIIIIIII IIIIIIIII
f
<
Screws '
C. Carefullypushthe igniter aside and under the burner.
Donot pull or pinch the wire.
Remove4 burner attachment screws,2 at the front and
2 at the back.Slidethe burner assembly toward the
back and out ofthe gas inlet.
Burner niter
Surround
"Assembly
Y
D°
Usea 1/2" deep well
socket to remove and
replacethe orifice.
Reversethese steps )]]
to re-assemblethe
y
grill.Besureto place
the unused orifice in
the holder for possible
future use.
Front of Ronge
\ /
'j o°o°o
j o o
;°o%°
0 i o o
To Next Page
