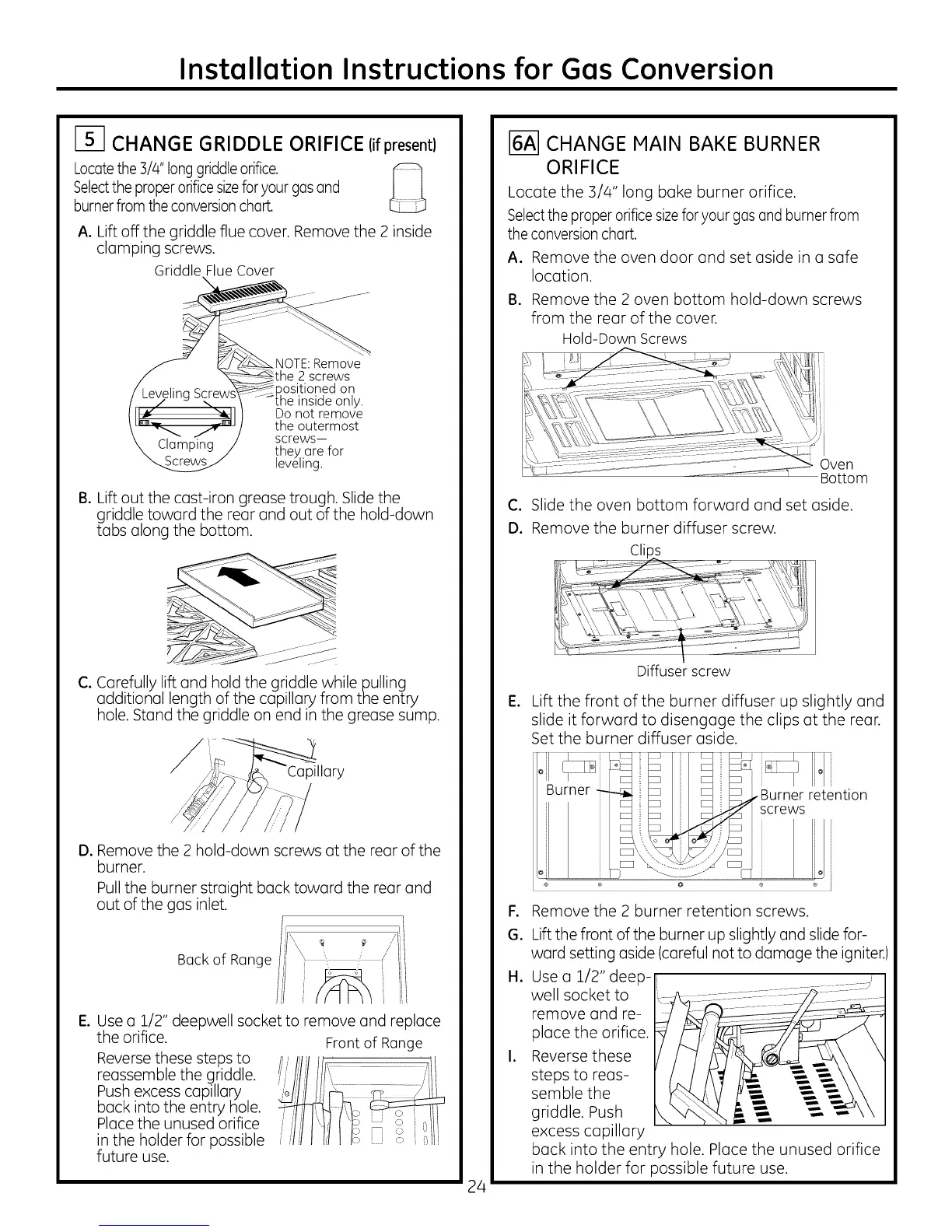

Installation Instructions for Gas Conversion
I _ I CHANGE GRIDDLE ORIFICElifpresent}
Locatethe 314"longgriddleorifice.
Selectthe properorificesizeforyour gas and
burnerfrom the conversionchart.
A. Lift off the griddle flue cover. Remove the 2 inside
clamping screws.
Griddle Flue Cover
/_posi.tioped on
/_\ -{he inside only.
Ill#" "_11I Do not remove
\,_....._ j_ii the outermost
\ C'lNmn_nN / s,crews--
\ '_'"v"'_ / theK are for
leveling.
B. Lift out the cast-iron grease trough. Slide the
griddle toward the rear and out of the hold-down
tabs along the bottom.
C. Carefully lift and hold the griddle while pulling
additional length of the capillary from the entry
hole. Stand the griddle on end in the grease sump.
D. Remove the 2 hold-down screws at the rear of the
burner.
Pull the burner straight back toward the rear and
out of the gas inlet.
Back of Range
E. Use a 1/2" deepwell socket to remove and replace
the orifice. Front of Range
Reverse these steps to
reassemble the griddle.
Push excess capillary
back into the entry hole.
Place the unused orifice
in the holder for possible
future use.
24
CHANGE MAIN BAKE BURNER
ORIFICE
Locate the 3/4" long bake burner orifice.
Selectthe proper orifice sizefor your gas and burner from
the conversionchart.
A. Remove the oven door and set aside in a safe
location.
B. Remove the 2 oven bottom hold-down screws
from the rear of the cover.
Hold-Down Screws
Bottom
C. Slide the oven bottom forward and set aside.
D. Remove the burner diffuser screw.
CNp# ,_
ix \, i_
I
Diffuser screw
E. Lift the front of the burner diffuser up slightly and
slide it forward to disengage the clips at the rear.
Set the burner diffuser aside.
F°
G.
H°
® ® o @ @
Remove the 2 burner retention screws.
Lift the front of the burner up slightly and slide for-
ward setting aside (careful not to damage the igniter.)
Use a 1/2" deep-
well socket to
remove and re-
place the orifice.
Reverse these
steps to reas-
semble the
griddle. Push
excess capillary
back into the entry hole. Place the unused orifice
in the holder for possible future use.
...... )
