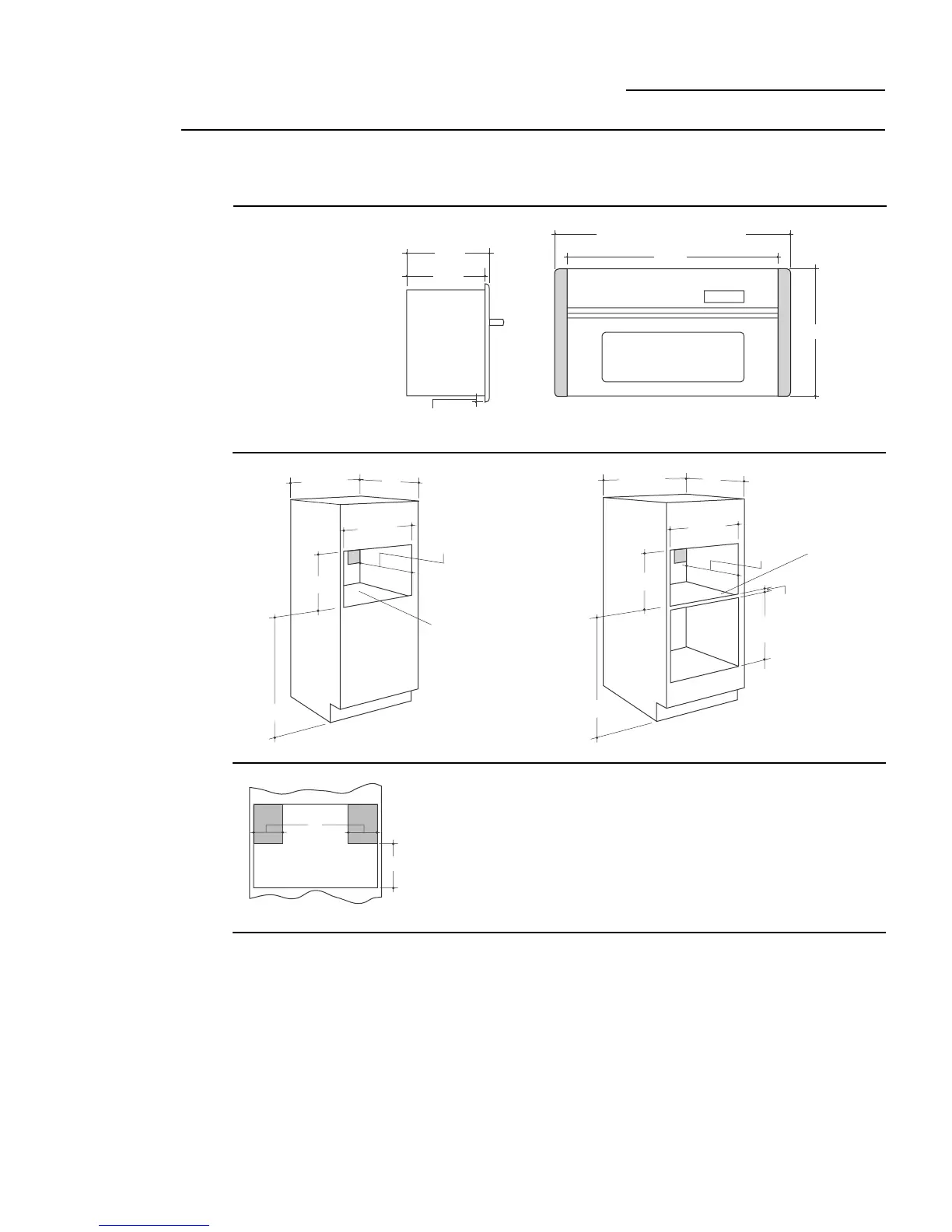

Design Information
Built-In Microwave/Convection Oven
Models ZMC1095, JEB1095, JEB1055
Available in White, Black and Stainless Steel
Product
Dimensions
Cutout
Dimensions
29-3/4" With Optional Side Trim
16-3/8"
15-3/8"
13/16"
26-3/4"
18-5/8"
36" Min.
27" or 30""
18"
Construct Base
Min. 3/8" Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
17" Min.
for Flush
Outlet
25-1/4"
17-1/2"
Advance
Planning
Electrical
Location
6"
8"
Locate outlet box in the shaded area
These microwave ovens are sized to fit a 27"
wide cabinet.
•Side trim pieces are provided for installation
into a 30" wide space. For a matching
appearance, use the side trim when installing
the microwave oven above a 30" single wall
oven.
•If you are installing into a 27" wide cabinet,
or over a 27" wide wall oven, discard the side
trim pieces.
•Cutout dimensions are the same for both 27"
or 30" wide cabinet installations.
45-1/4"
27" or 30"" 24"
Construct Base
Min. 3/8" Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
1-7/8" Min.
Per Oven
Requirement
17" Min.
for Flush
Outlet
25-1/4"
17-1/2"
