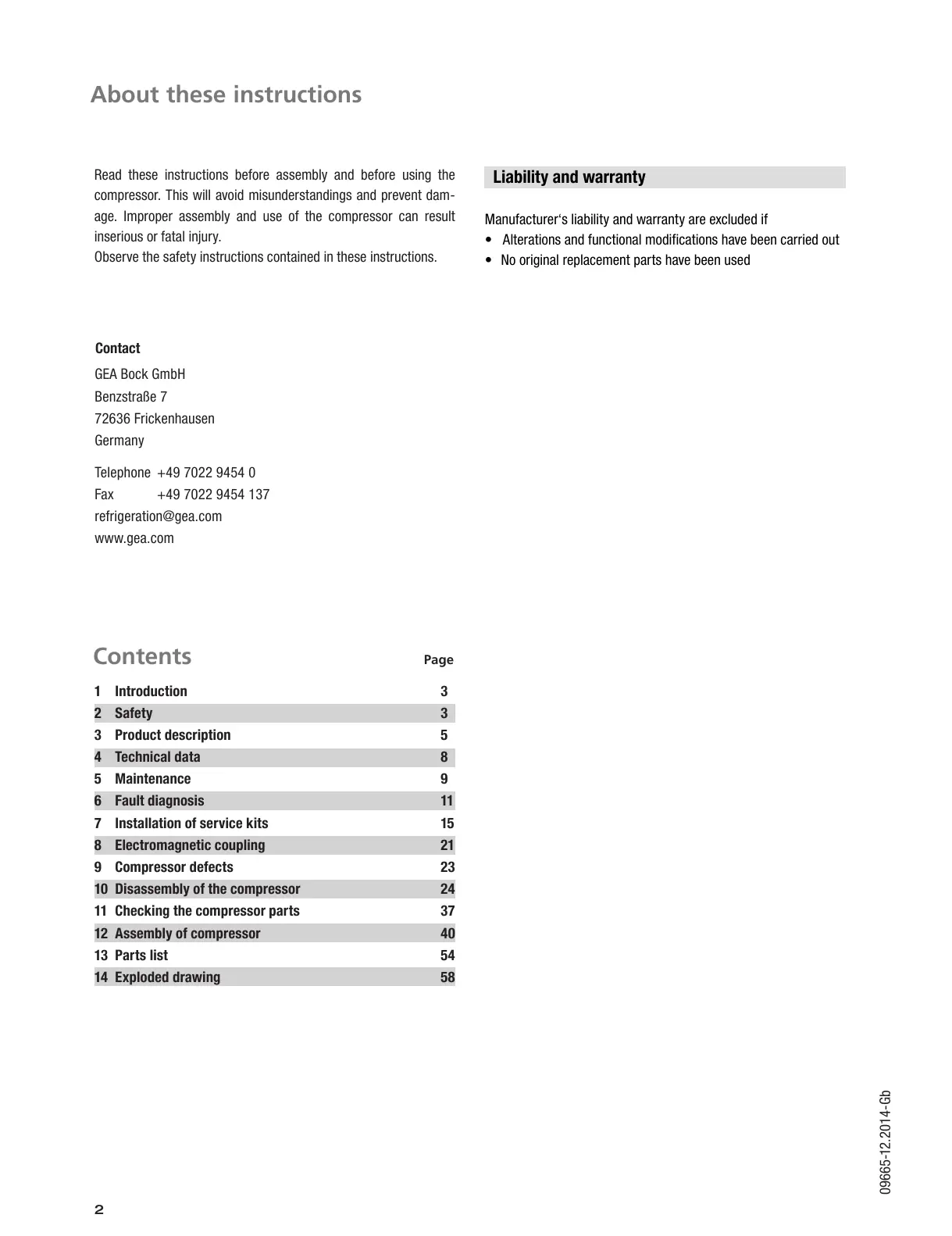

About these instructions
Read these instructions before assembly and before using the
compressor. This will avoid misunderstandings and prevent dam-
age. Improper assembly and use of the compressor can result
in serious or fatal injury.
Observe the safety instructions contained in these instructions.
Liability and warranty
Manufacturer‘s liability and warranty are excluded if
• Alterations and functional modifications have been carried out
• No original replacement parts have been used
Contents Page
1 Introduction 3
2 Safety 3
3 Product description 5
4 Technical data 8
5 Maintenance 9
6 Fault diagnosis 11
7 Installation of service kits 15
8 Electromagnetic coupling 21
9 Compressor defects 23
10 Disassembly of the compressor 24
11 Checking the compressor parts 37
12 Assembly of compressor 40
13 Parts list 54
14 Exploded drawing 58
Contact
GEA Bock GmbH
Benzstraße 7
72636 Frickenhausen
Germany
Telephone +49 7022 9454 0
Fax +49 7022 9454 137
refrigeration@gea.com
www.gea.com
