Installation of in.k330
To install the in�k330, use the drilling template provided in this section�
Determine the mounting location and stick the template on chosen location�
Cut out an opening according to the template�
Clean the installation surface and peel the adhesive gasket from the back of the keypad�
Insert keypad and align it correctly, then ensure it is properly glued by gently pressing evenly on the entire surface�
Gasket with or without adhesive
Optional wing nuts
and spacers
2�98"
(76 mm)
7�20"
(183 mm)
2�36"
(60 mm)

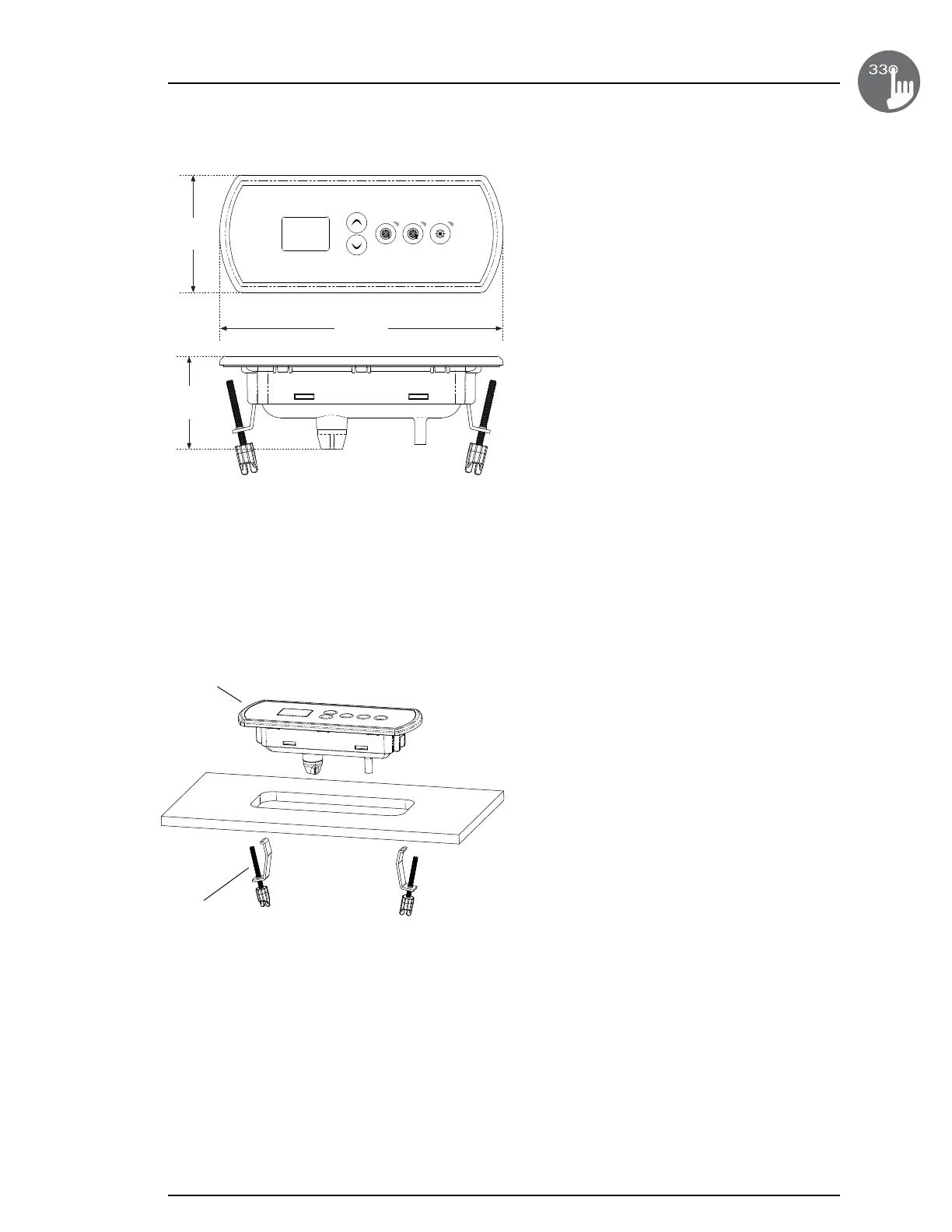

in.k330 dimensions
