Y Series connections
Connecting the main keypad to the spa pack

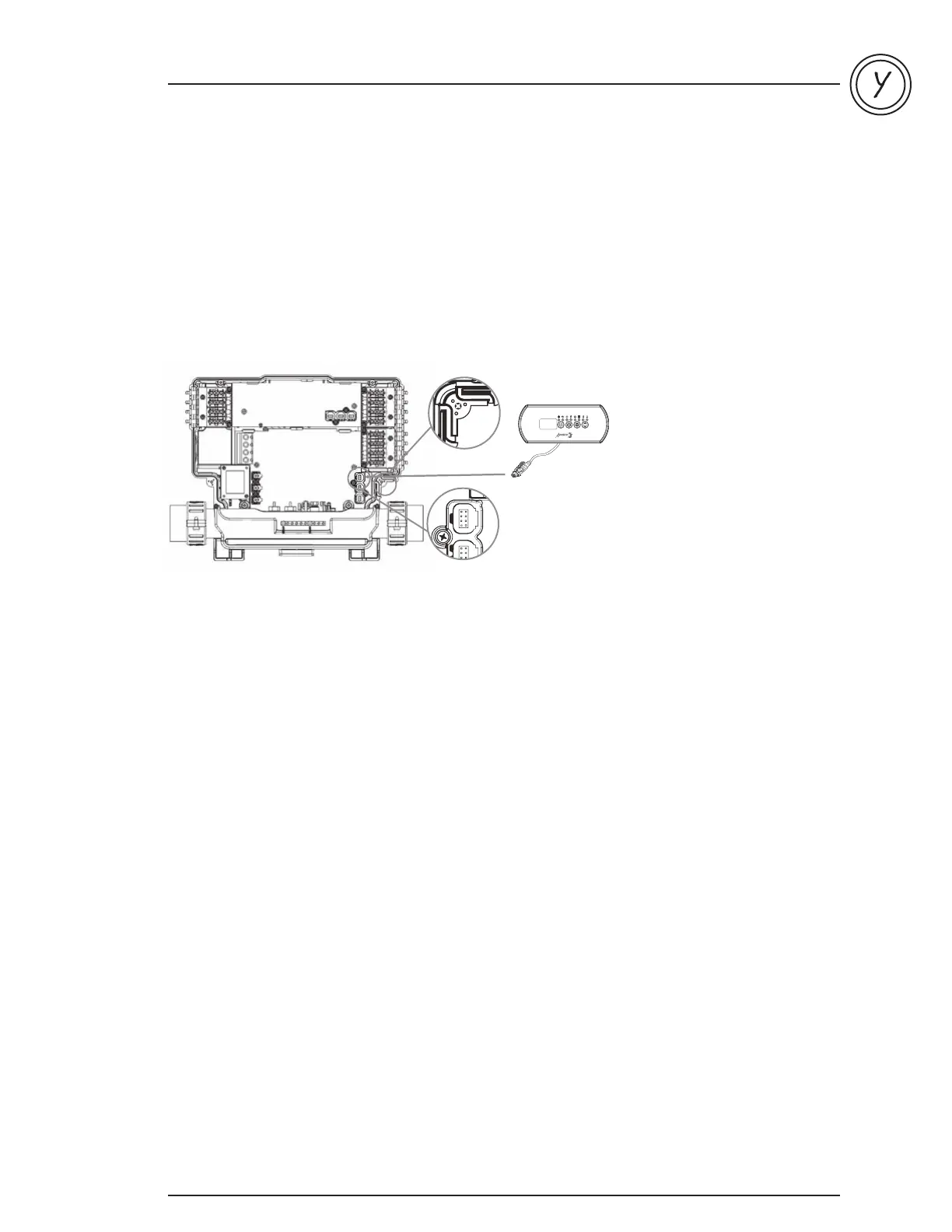

To connect the keypad, remove the cover, then insert the in.link connector into the appropriate keypad connector
(as illustrated). Route the cable through one of the molded strain relief channels on the bottom right side of the spa
pack (as illustrated). Fill the remaining space with the foam gaskets supplied. Don’t forget to replace the cover and all
screws (torque to 8 in.lb max [0.9 N.m]).
Note: always shut power down before connecting an accessory to the in.ye or in.yt.
keypad
Connect the
main keypad as
indicated here.
