Material:
4- # 10 screws
with round, truss
or pan head.
4- washers 1/2" OD x
1/16" thickness (12 mm
OD x1.5 mm)
Guide plate
Now firmly attach unit to
wooden base by using
the remaining 2 screws
backed by 2 washers to
attach the front feet.
Note: The spa pack must be
installed at least 4" (100 mm)
above potential ood level.
If oor is on ground level,
pack should be raised at least
4" (100 mm).
Slide back side of the
unit's feet into the guide
plate. It should easily slide
into place.

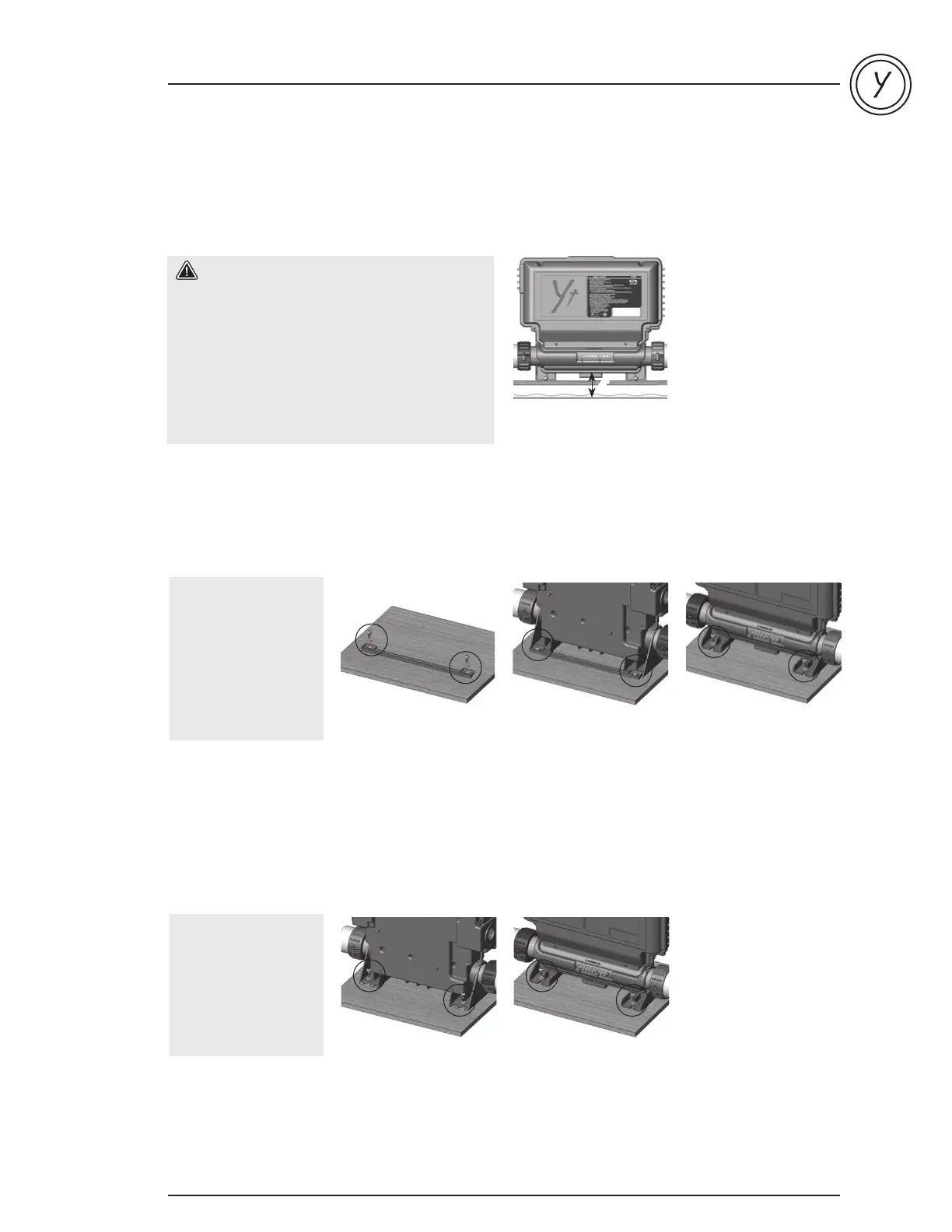

Floor installation procedure with optional guide plate
Warning!
Beware the application of some products
commonly used against corrosion (such as
WD-40 family products) as they could damage
the power box, due to a negative chemical
reaction between some industrial oils and its
plastic enclosure. Any other materials which may
come in contact with the enclosure must be
carefully evaluated under end use conditions
for compatibility.
Important! Read before starting:
Please note that countersunk screws should not be used as they can damage the power box support.
The heat.wav heating element must be installed in the return circuit of the main pump (pressure side).
The following material
is recommended:
4- # 10 screws with
round, truss or pan
head.
4- washers 1/2” OD x
1/16” thickness
(12 mm OD x1.5 mm)
Now firmly attach the front
feet of the pack to the
wooden floor using
2 more screws backed
by 2 washers.
4"
Floor installation procedure without guide plate
Y Series installation
Part numbers:
9917-102148 (in.ye guide plate)
9917-100873 (in.yt guide plate)
Select the most appropria-
te location on the floor for
the spa pack and firmly
attach the 2 rear feet
to the wooden base
using 2 screws backed
by 2 washers.
Select the location on
the floor for spa pack
and firmly attach guide
plate to wooden base
with 2 screws backed
by 2 washers.
To Next Page
