8
See the techbook for your specific keypad model for installation details and drilling template.
The following material is
recommended:
4- # 10 screws of
appropriate length with
round, truss or pan head.
4- washers 1/2" OD x 1/16”
thickness
(12 mm OD x 1.5 mm)
Use 2 standard 2" x 4" or
2" x 6" wall studs, spaced
on 17-inch (431 mm)
centers to affix the
spa pack.
Firmly attach lower
mounting holes on each
side of the pack with
the 2 remaining screws
and 2 washers.
Lower mounting holes
are 2" (51 mm) below
upper holes.
Firmly attach, one at a
time, upper mounting
holes on each side of the
spa pack with 2 screws
backed by 2 washers.
Install mounting brackets
on both sides of rear of
unit, using the screws
provided with the bracket.
Torque screws
to 13 in.lb max (1.49 N.m).

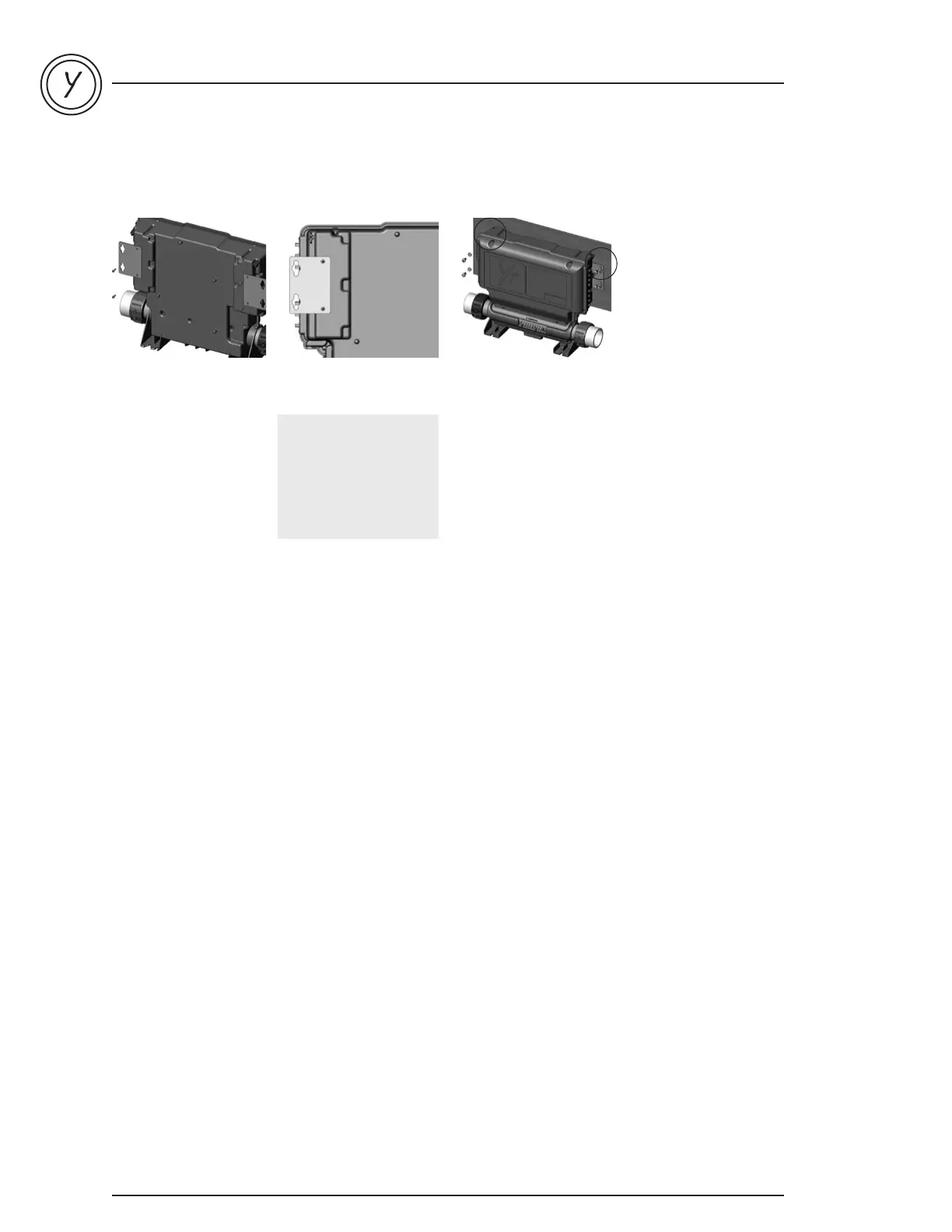

Wall installation procedure with optional wall mounting brackets
Keypad installation
Y Series installation
Part number:
9920-101474 (100 bracket
bundle with 200 screws)
