6
Programming the control system
Although every control
system of the Y series
and in�xe are factory
configured, in certain
cases, during maintenance
or replacement of the
equipment, it may be
necessary to select a new
pre-determined low-level
configuration�
Complete the next few
steps to get to the low-level
configuration selection
menu�

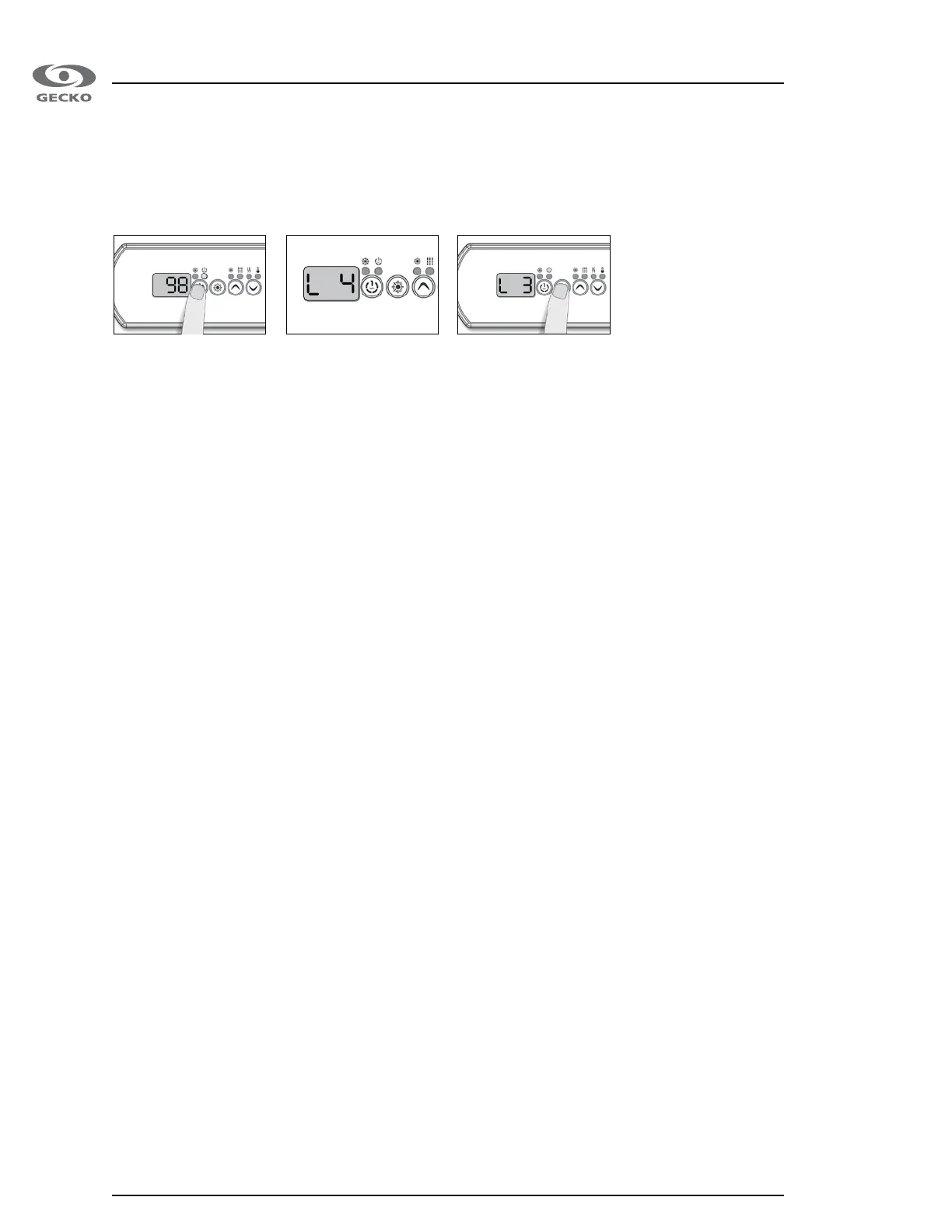

Press and hold the Pump 1
key for 30 seconds�
Press on the Prog� key
to confirm the chosen
configuration�
After 25 seconds, if you
have not pressed the Prog�
key, the system will exit
the menu without saving
any changes made to the
settings�
Note: if the keypad does not
have the Prog. Key, use the
Light key.
The keypad will display
L xx� “xx” corresponds to
the number of the low-level
configuration presently
used by the system�
Use the Up/Down keys to
select the new low-level
configuration�
Programming the control system with the keypad
