5. GH11RA OPERATION

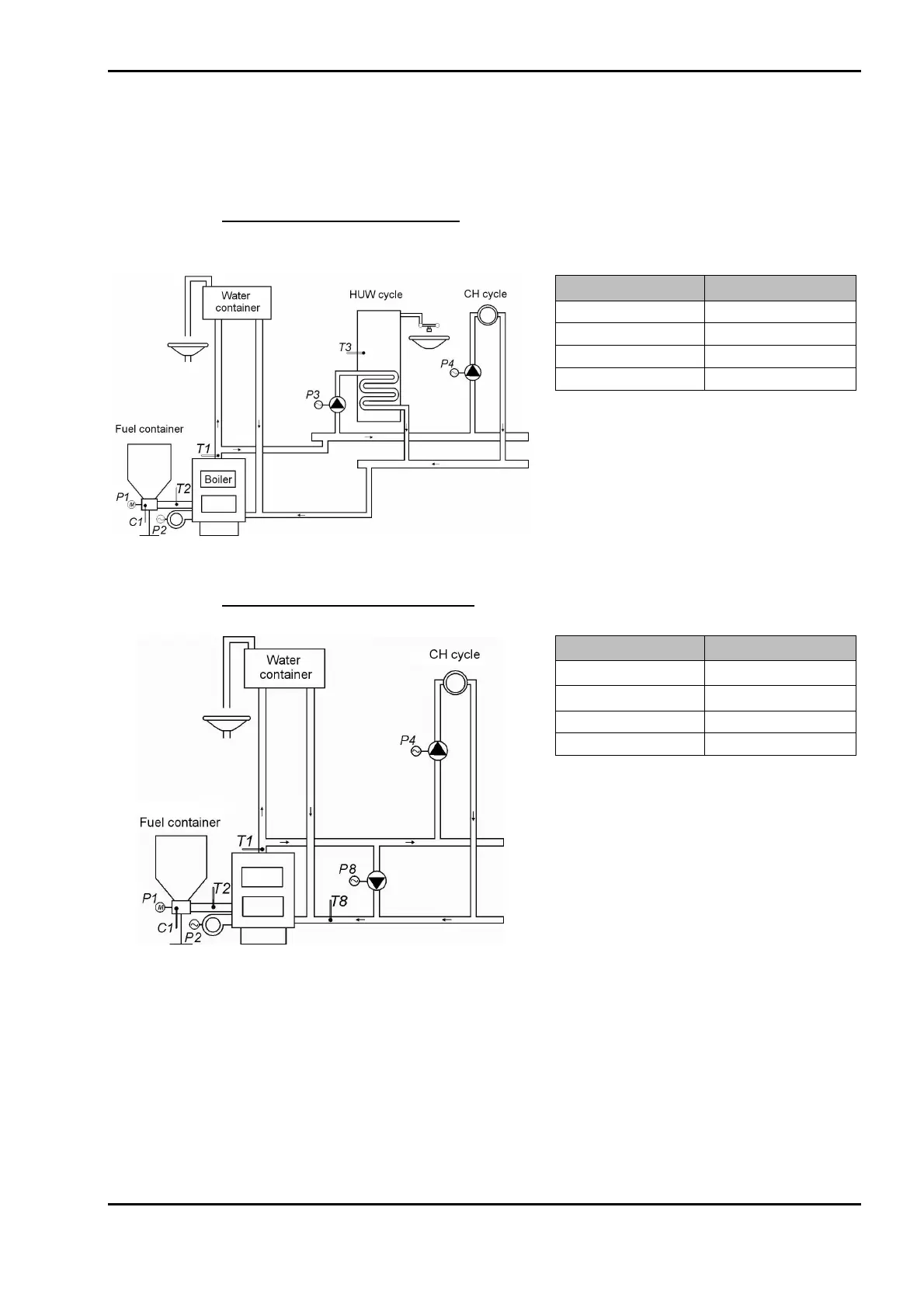

5.1. Operated Heating System
5.1.1. Central heating cycle + HUW cycle
INPUTS OUTPUTS
T1 – Boiler temp. P1 – Fuel feeder
T2 – Feeder temp. P2 – Fan
T3 – HUW temp. P3 – HUW pump
C1 – Reed relay P4 – CH pump
5.1.2. Central heating cycle + mixing pump
INPUTS OUTPUTS
T1 – Boiler temp. P1 – Fuel feeder
T2 – Feeder temp. P2 – Fan
T8 – Return temp. P4 – CH pump
C1 – Reed relay P8 – mixing pump
