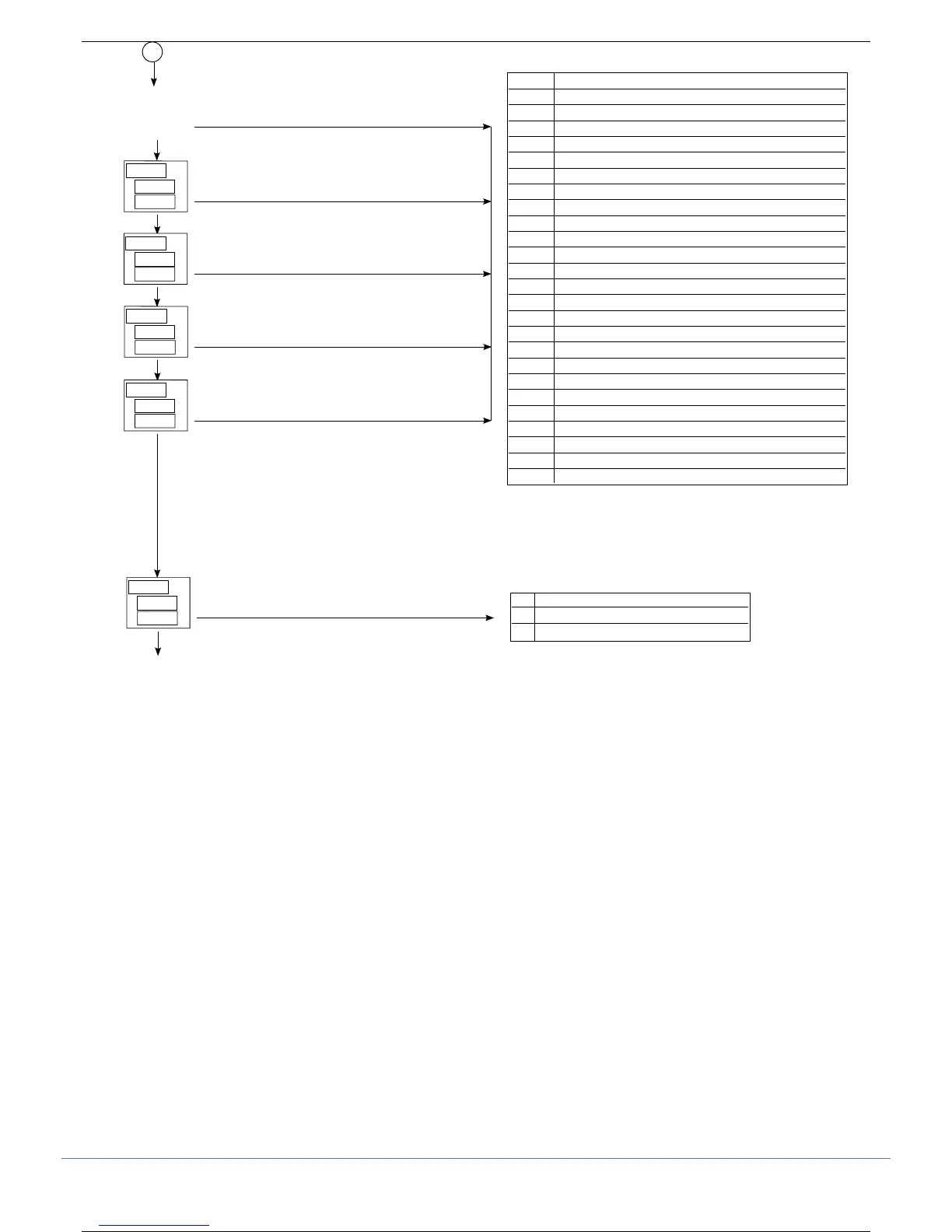

LED 1 Function
0 No function
1 MAN / AUTO controller
2 LOC / REM
3 HOLD IN1
4 HOLD IN2
5 Self Tuning on
6 Auto Tuning on
7 Repeat logic input 1
8 Repeat logic input 2
9 Error (broken probe)
10 Softstart running
11 Indicate SP1 / SP2
12 setpoint gradient running
13 AL1
14 AL2
15 AL3
16 AL1 or AL2
17 AL1 or AL2 or AL3
18 AL1 and AL2
19 AL1 and AL2 and AL3
20 Check calibration IN1
21 Check calibration IN2
28 Relay state OUT 1
29 Relay state OUT 2
30 Relay state OUT 3
31 Relay state OUT 4
+32 LED flashes if on
+64 LED state reversed
LED 2 Function
SV
F
PV
LED 3 Function
SV
F
PV
LED 4 Function
SV
F
PV
LED 5 Function
SV
F
PV
Select variable displayed on
SV bargraph 1
SV
F
PV
0 CO1 - Control output 1
1 CO2 - Control output 2
2 OUTP - Controller output
LEd.1
LEd.2
LEd.3
LEd.4
LEd.5
brG
4580291G_MHW_2500_08-2010_ENG
