gefran AGy-L Series - Page 16

Replace AGy-L by VDL200 Pag. 16 of 17
4.6 Save all parameters

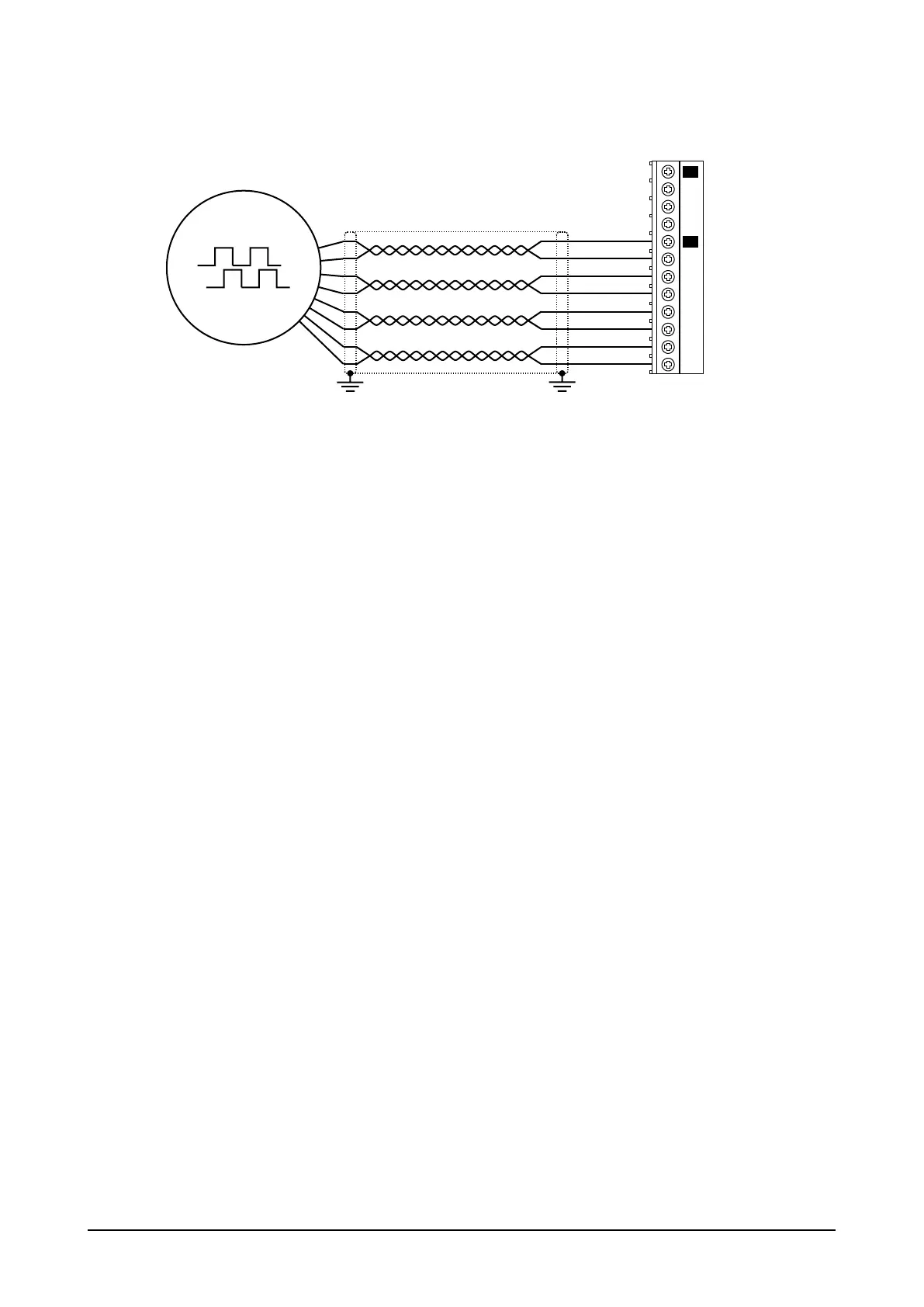

1) Connect properly the encoder:
2) Go to 04 DRIVE CONFIG menù and scroll down to select PAR 552 Regulation mode and set to 3.
3) Save parameters again with SAVE button on keypad.
Note ! See Quick start guide for the complete parameters list.
Z-
Z+
B-
B+
A-
A+
0VE out
+VE out
8
9
10
11
12
13
14
15
20
21
22
23
(*)
XE
XER
