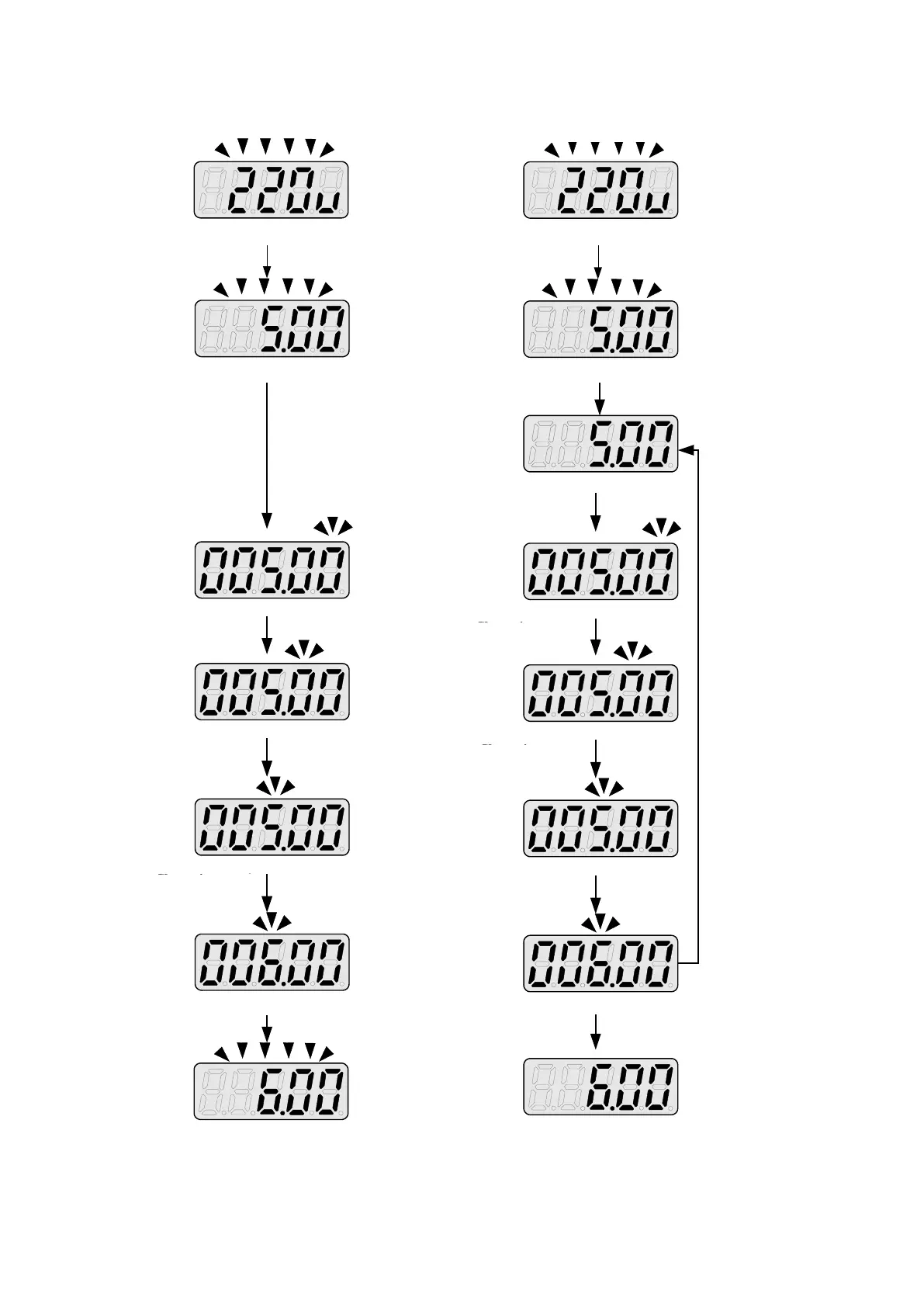

Example 2: Modifying the frequency from keypad in run and stop modes.
Modify frequency in stopping
Modify frequency in operating
2
sec later
2sec later
Short time press
</ENT once
Press RUN
5sec later
or long time press
</ENT once
Long time press
</ENT once
Without
pressing the
button
</ENT，
After 5
seconds to
return
Short time press
</ENT once
Power Supply
Power supply
Actual frequency
Actual frequency
Short time press
</ENT once
Short time press
</ENT once
Short time press
▲ once
Short time press
</ENT once
Short time press
</ENT once
Short time press
▲ once
Set frequency display Set frequency display
Modify bit<unit>
Modify bit<ten>
Modify bit<hundred>
Modify bit<hundred+1>
Modify bit<hundred+1>
Modify bit<hundred>
Modify bit<ten>
Modify bit<unit>
Note: frequency command setting will be limited to the range set by parameters for lower &
upper frequency.
Modify frequency is stopping
Modify frequency is stopping
Power supply
Power supply
2sec later
2sec later
Set frequency display
Set frequency display
Press run
Short press
</ENT once
Short press
</ENT once
Actual frequency
Short press
</ENT once
Short press
</ENT once
Short press
</ENT once
Short press
</ENT once
Short press
▲
once
Short press
▲
once
5 sec later or
long press
</ENT once
Long press
</ENT once
Modify bit<unit>
Modify bit<unit>
Modify bit<ten>
Modify bit<ten>
Modify bit<hundred>
Modify bit<hundred>
Modify bit<hundred+1>
Modify bit<hundred+1>
Actual frequency
Without pressing
the button </ENT,
After 5 seconds to
return
