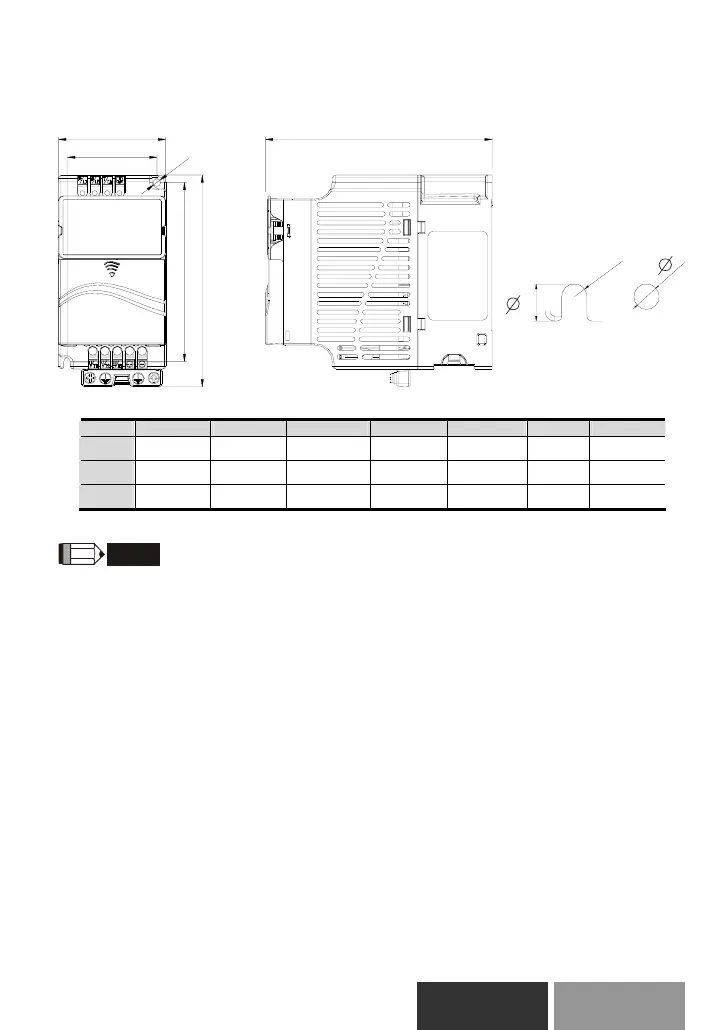

Dimensioni
Le dimensioni sono espresse in millimetri e [pollici].
W
W1
H1
H
D
D
Dim. W W1 H H1 D Ø ØD
A
72,0[2,83] 60,0[2,36] 142,0[5,59] 120,0[4,72] 152,0[5,98] 5,2[0,04] 7,6[0,06]
B
100,0[3,94] 89,0[3,50] 174,0[6,86] 162,0[6,38] 152,0[5,98] 5,5[0,22] 9,3[0,36]
C
130,0[5,12] 116,0[4,57] 260,0[10,24] 246,5[9,70] 169,2[6,66] 5,5[0,22] 9,8[0,38]
NOTA
Dimensione A:
ADV50-1004-XXX-2M-F/4F, ADV50-1007-XXX-2M-F/2T/4F, ADV50-1015-XXX-2T/4F
Dimensione B:
ADV50-2015-XBX-2MF, ADV50-2022-XBX-2M-F/2T/4F, ADV50-2037-XBX-2T/4F
Dimensione C: ADV50-3055-2T/4F, ADV50-3075-XBX-2T/4F, ADV50-3110-XBX-4F
