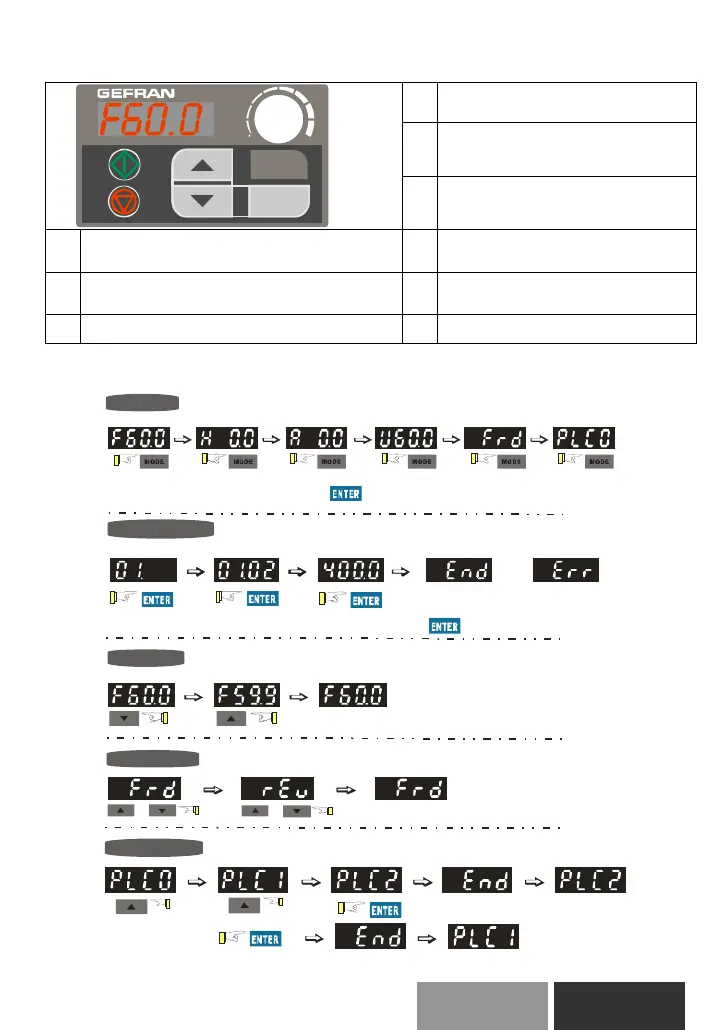

Description of the Digital keypad KB-ADV50 (Optional)
RUN Key
Start AC drive operation.
UP and DOWN Key
Set the parameter number and changes the
numerical data, such as Master Frequency.
FWD
RUN
REV
STOP
STOP
RESET
RUN
MODE
E
MODE
Change between different display mode.
Status Display
Display the driver’s current status
STOP/RESET
Stops AC drive operation and reset the
drive after fault occurred.
LED Display
Indicates frequency, voltage, current, user defined units
and etc.
ENTER
Used to enter/modify programming
parameters
Potentiometer
For master Frequency setting.
Operation steps of the Digital Keypad
To shift data
Setting direction
Setting PLC Mode
Setting Mode
(When operation source is digital keypad)
START
GO START
NOTE: In the sel ection mode, press
to set the parameters.
START
enter PLC2 mode
or
enter PLC1 mode
NOTE:
In the parameter setting mode, you can press
to return the selecting mode.
Setting parameters
Success to
set parameter.
Input data error
or
or
or
To Next Page
