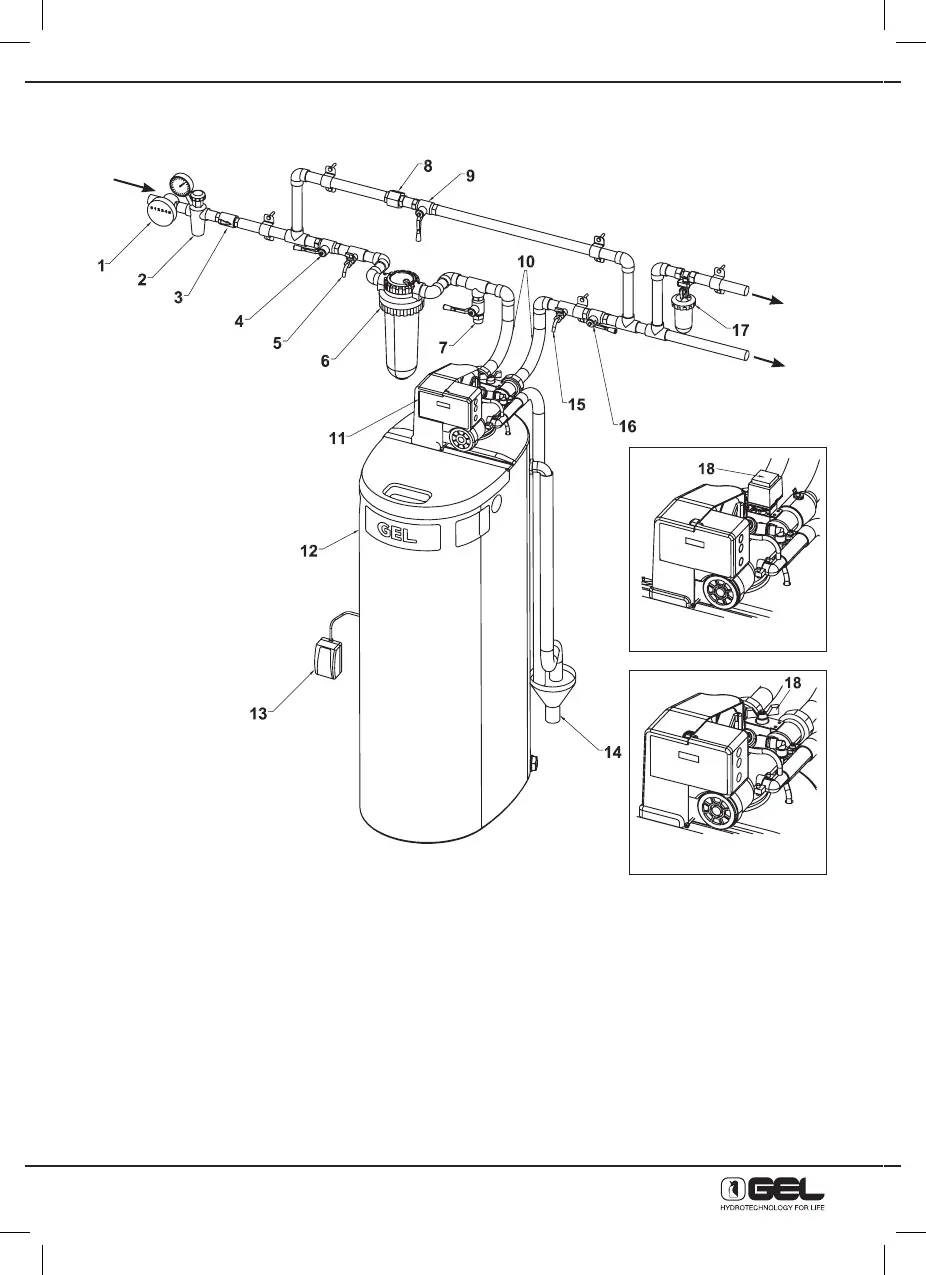

9.3 - INSTALLATION OF THE MONOBLOC MODEL - DECALUX
1) Water meter
2) Pressure reducer (only if necessary)
3) Check valve
4) On-off valve before the system
5) Tap for raw water sample taking
6) Sand filter
7) Filtered water offtake for other uses
8) Pipe union fitting
9) By-pass gate valve
10) Flexible hose fittings or vibration-damping joints
11) Softener head
12) Cabinet softener
13) Plug 230V – 50/60 Hz
14) Drain
15) Tap for softened water sample taking
16) On-off valve after the system
17) Anti-scale dosing unit (for boiler protection)
18) Mixing valve
Automatic mixing valve
Manual mixing valve
Water supply
entry
to the
boiler
to the
system
