www.gemu-group.com14 / 19GEMÜ 1441

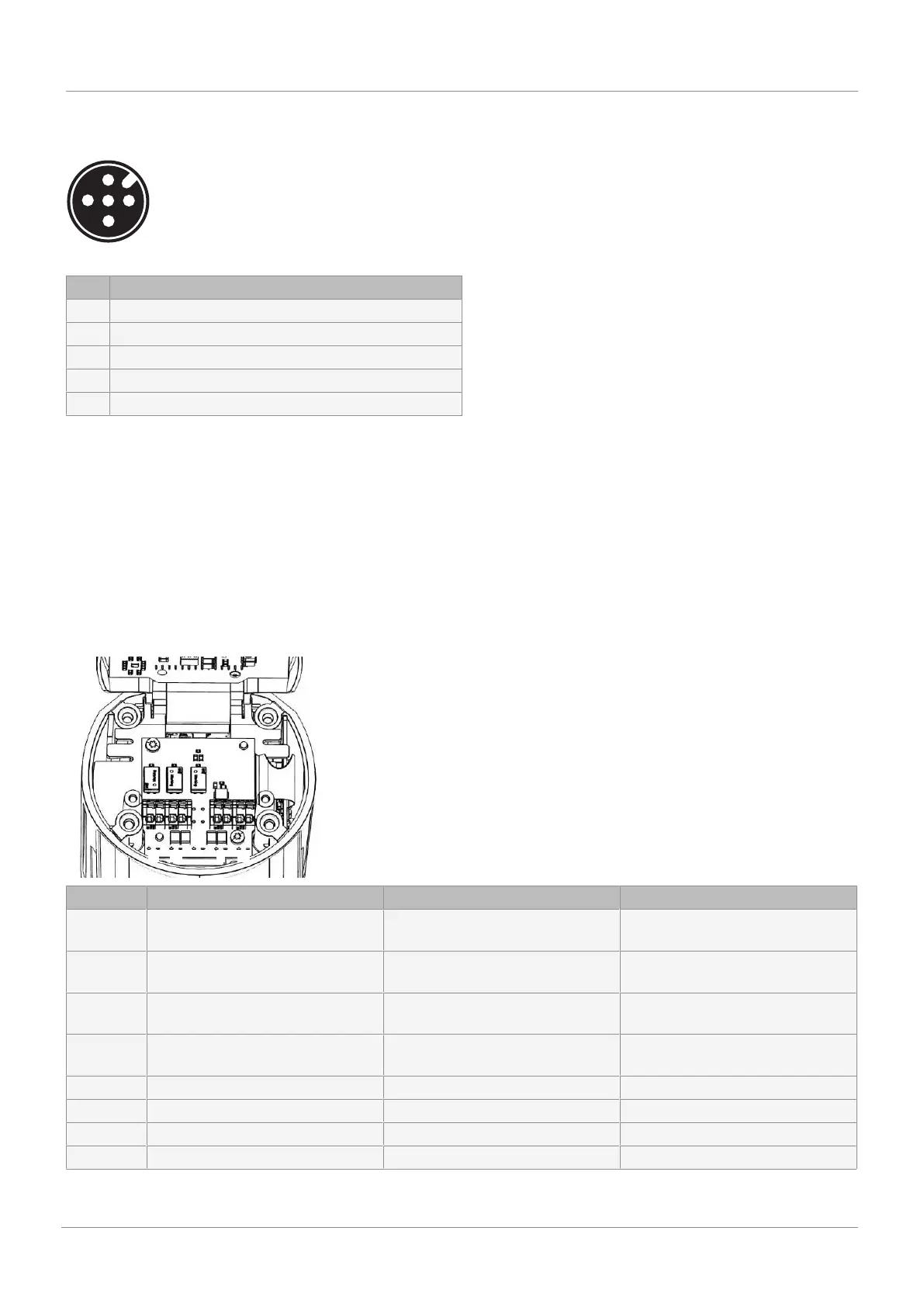

Order option with external actual value potentiometer, code S01
Connection X2
1
5
4
3
2
5-pin M12 built-in socket. A-coded
Pin Signal name
1 UP+, output potentiometer supply voltage (+)
2 UP, input potentiometer wiper voltage
3 UP-, output potentiometer supply voltage (-)
4 n.c.
5 n.c.
Electrical connection with cable bushing
Note: On the version with an external actual value potentiometer (code S01), a connector is always attached at connection X2.
Connection X1/X3:
M16 cable gland
Recommended cable diameter:
EX-protected version (blue cable gland: 7–9 mm
Non-EX-protected version (black cable gland: 4–10 mm
Wire cross-section: 0.5–2.5 mm² / AWG 20 to 12
IW
AO
DI
DO
Terminal Terminal label Terminal name Signal name
1 IW+ Iw+ Iw+, set value input (4–20 mA cur-
rent loop)/opt. HART
2 IW- Iw- Iw-, set value input (4–20 mA current
loop)/opt. HART
3 AO+ Iout+ Iout+, actual value output (4–20 mA/
no internal supply; passive)
4 AO- Iout- Iout-, actual value output (4–20 mA/
no internal supply; passive)
5 DI+ DigIn + Digital input
6 DI- DigIn GND, digital input
7 DO+ DigOut+ Digital output
8 DO- DigOut- GND, digital output
Electrical connection
