GEMÜ 1441
www.gemu-group.com
13 / 19

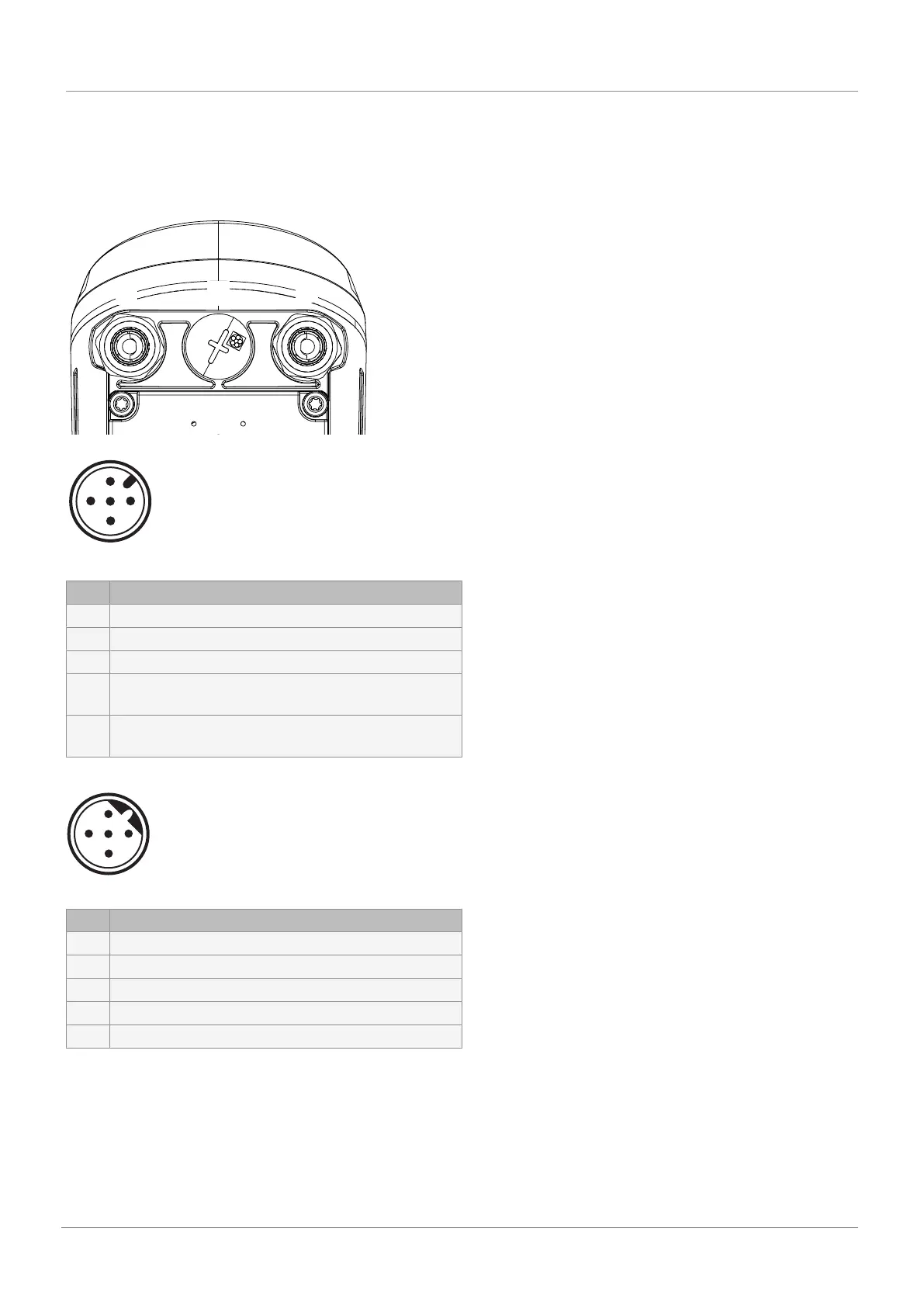

Electrical connection
Electrical connection with M12
Position of the connectors
X1
X2
X3
Connection X1
1
4
3
2
5
5-pin M12 plug, A-coded
Pin Signal name
1 Iw+ set value input (4–20 mA current loop)/opt. HART
2 Iw- set value input (4–20 mA current loop)/opt. HART
3 n.c.
4 Iout+, actual value output (4…20 mA / no internal sup-
ply; passive)
5 Iout-, actual value output (4…20 mA / no internal supply;
passive)
Connection X3
1
5
4
3
2
5-pin M12 plug, B-coded
Pin Signal name
1 DigIn +
2 DigIn -
3 n.c.
4 DigOut+
5 DigOut-
Electrical connection
