www.gemu-group.com16 / 19GEMÜ 1441

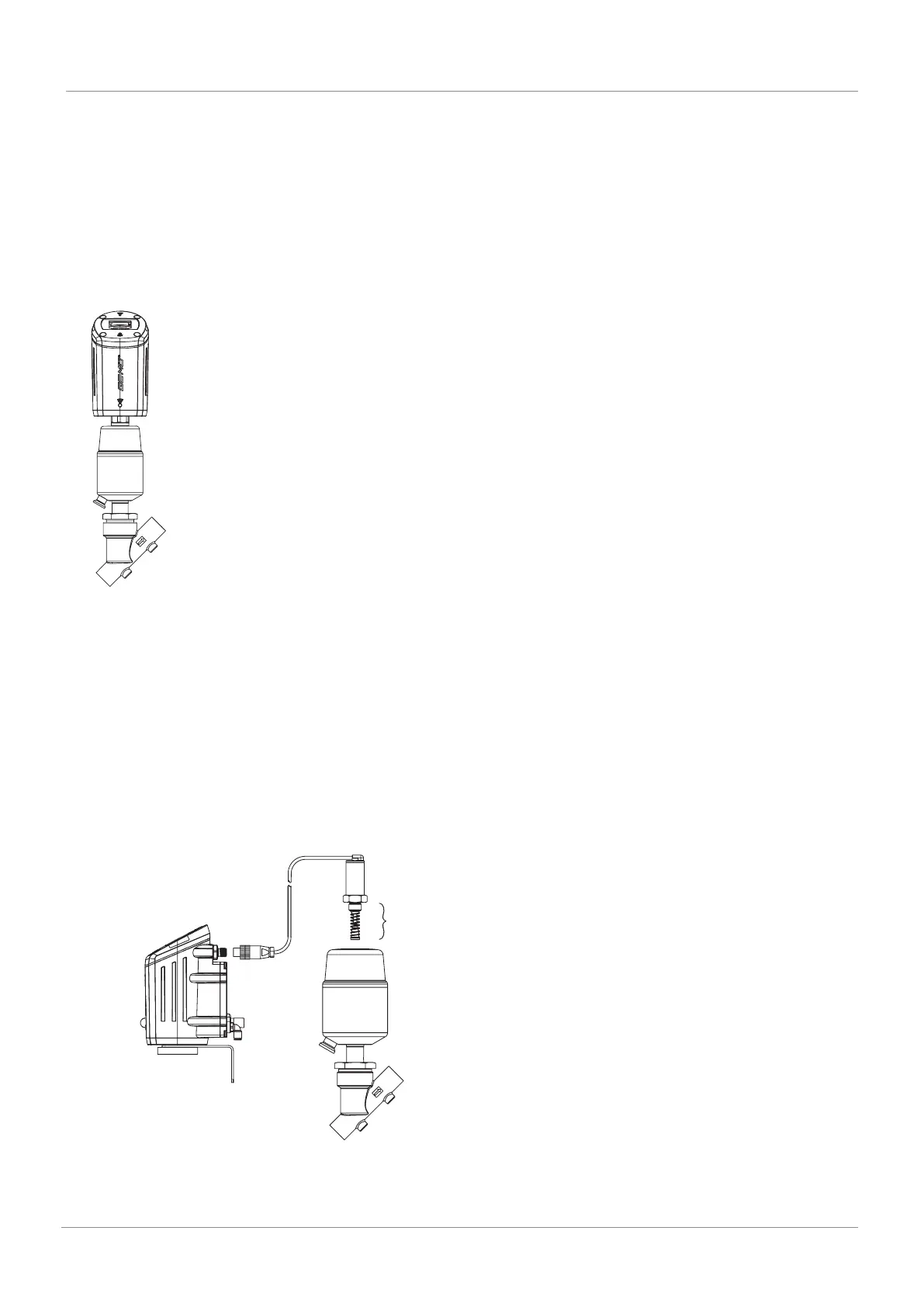

Mounting options
Mounting the positioner to linear actuators
Direct mounting
For direct mounting of the positioner on a valve with linear actuator, you need the following components
• GEMÜ 1441 positioner in travel sensor version code 075
• GEMÜ 1441 S01 Z… valve specific mounting kit for mounting the positioner
(When ordering, specify the valve type with nominal size and control function)
Positioner
GEMÜ 1441 ... 075
GEMÜ globe valve
Remote mounting
For remote mounting of the positioner on a valve with linear actuator, you need the following components
• GEMÜ 1441 positioner in travel sensor version code S01 (remote potentiometer)
• GEMÜ 4232 … 075… 4001 travel sensor
(Travel sensor version dependent on the valve used; cable length dependent on the required distance between the valve and po-
sitioner)
• GEMÜ 4232 S01 Z… valve-specific mounting kit for mounting the travel sensor
• GEMÜ 1441 000 ZMP mounting bracket (for wall mounting) or GEMÜ 1441 000 ZMB mounting bracket (for installation on
level surfaces) (optional in each case) for securing the positioner
(When ordering, specify the valve type with nominal size and control function and the required distance to the mounting location
of the positioner)
Travel sensor
GEMÜ 4232 ... 030 / 050 / 075 ... 4001
Travel sensor mounting kit
GEMÜ 4232 S01 Z ...
GEMÜ globe valve
Positioner
GEMÜ 1441 ... S01
Mounting bracket
GEMÜ 1441 000 ZMP
Mounting options
