www.gemu-group.com12 / 19GEMÜ 1441

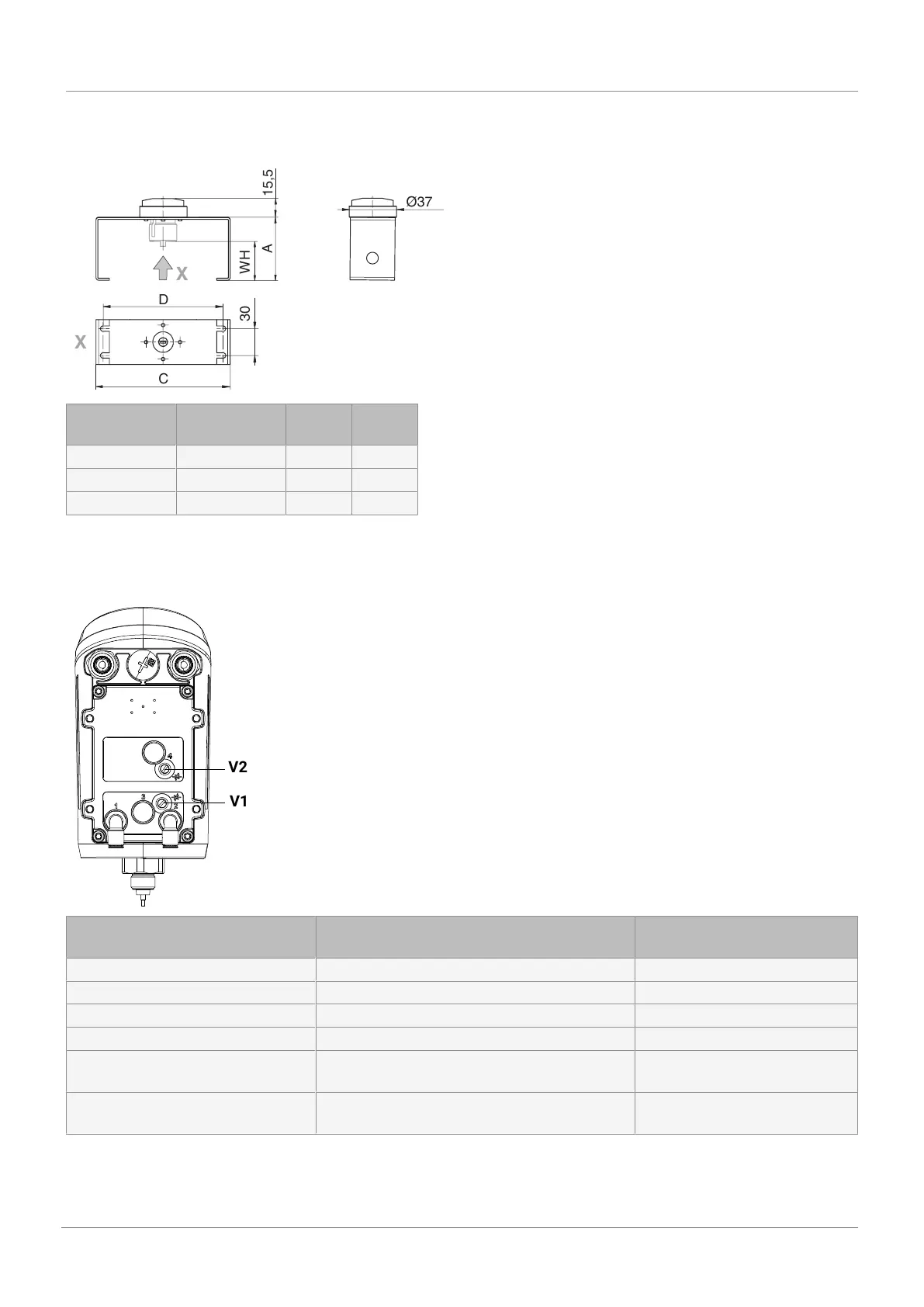

1441PTAZ mounting bracket for direct mounting on quarter turn actuators
Direct mounting (see page17)
Shaft height
WH
Hole spacing
D
A C
20.0 80.0 40.0 100.0
30.0 80.0 50.0 100.0
50.0 130.0 70.0 150.0
Dimensions in mm
Pneumatic connection
Connection in accordance with DIN
ISO 1219-1
Designation Size
1 Supply connection G1/8 female thread
1)
3 Venting (with silencer) G1/8 female thread
V1 Supply and exhaust air throttle for A1 -
V2
2)
Supply and exhaust air throttle for A2 -
2 Working connection (1) for process valve
(control function NC and NO)
G1/8 female thread
1)
4
2)
Working connection (2) for process valve
(control function DA)
G1/8 female thread
1)
1) The connections that are to be used are equipped with push-in fittings at the factory (depending on the order code for pneumatic lines 6/4
mm or 1/4“).
2) Only available for the double acting action (code 3 or 6).
Pneumatic connection
