GEMÜ 1441
www.gemu-group.com
17 / 19

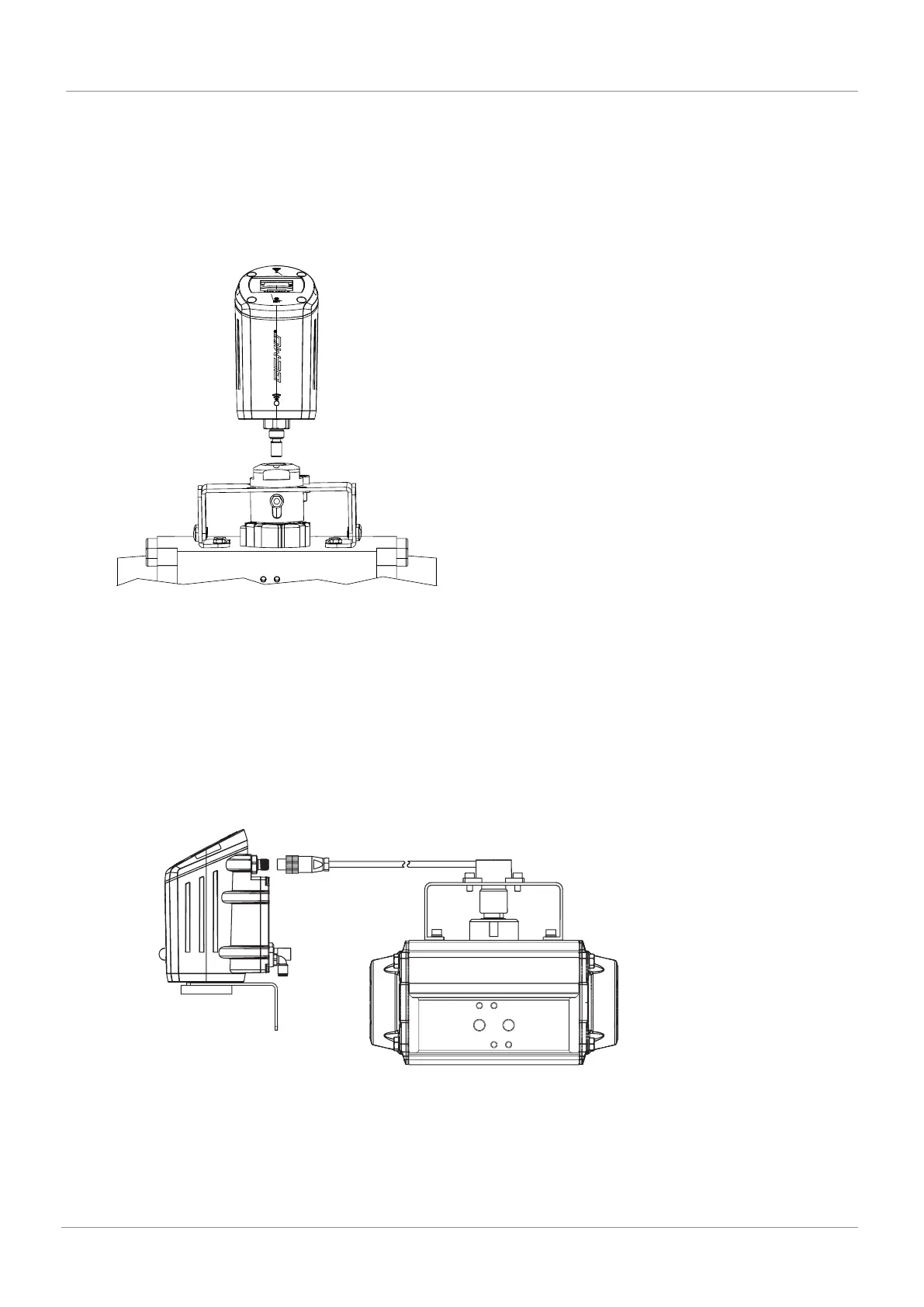

Mounting the positioner to quarter turn actuators
Direct mounting
For direct mounting of the positioner on a valve with quarter turn actuator, you need the following components
• GEMÜ 1441 … 075 positioner
• GEMÜ 1441 PTAZXX 090 000 valve-specific mounting kit for mounting the positioner
(When ordering, specify the valve type with actuator flange size)
GEMÜ quarter turn actuator
Positioner
GEMÜ 1441 ... 075
Mounting bracket
GEMÜ 1441 PTAZ
Remote mounting
For remote mounting of the positioner on a valve with quarter turn actuator, you need the following components
• GEMÜ 1441 positioner in travel sensor version code S01 (remote potentiometer)
• GEMÜ 4231...4001 travel sensor (cable length dependent on the required distance between the valve and positioner)
• 4231 PTAZ... ...090 000 valve-specific mounting kit for mounting the travel sensor
• GEMÜ 1441 000 ZMP mounting bracket (for wall mounting) or GEMÜ 1441 000 ZMB mounting bracket (for installation on
level surfaces) (optional in each case) for securing the positioner
(When ordering, specify the actuator flange size and the required distance to the mounting location of the positioner)
GEMÜ quarter turn actuator
Positioner
GEMÜ 1441 ... S01
Mounting bracket
GEMÜ 1441 000 ZMP
Mounting kit
GEMÜ 4231 PTAZ
Travel sensor
GEMÜ 4231...4001
Mounting options
