16 Operation

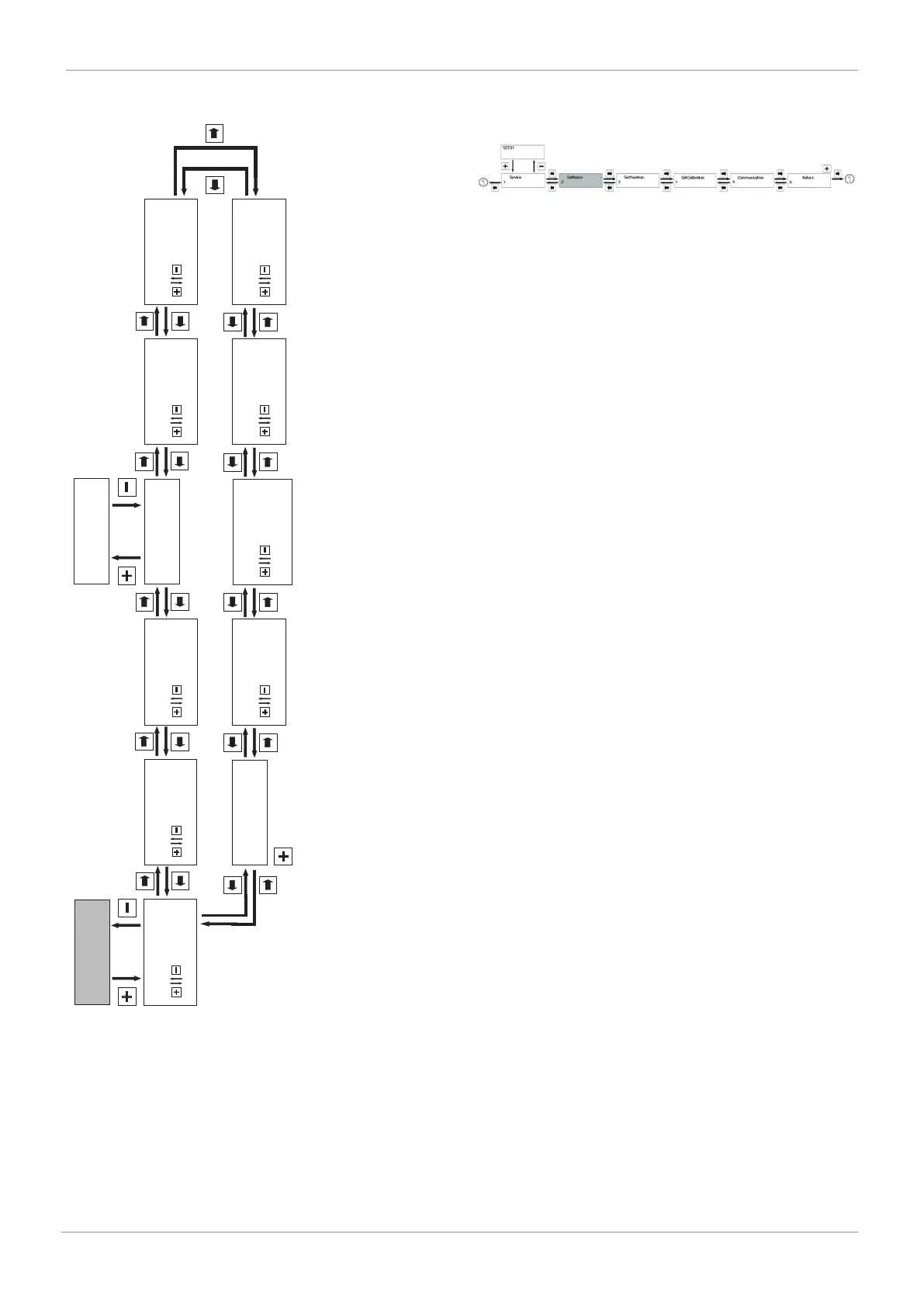

16.2.3.6 Menu 2 SetBasics
Init Valve
Return
Init Valve
Auto Man ESC
W-Input: 4-20 mA
0-20 mA
4-20 mA
X-Input: 4-20 mA
0-20 mA
4-20 mA p
Default: Yes
Yes...No
CalPointQtyt 9
1...19
D. Refresh 0.1 s
0.1...1.0 s
AutoReturn 5min
1...60min
r0w3 r0w3 r3w3 r3w3 r3w3
r0w1
DLight On Key
On Key
On
r0w2
r0w2
SetBasics
2
Helptext ON
ON...OFF
HelpLanguage D
D
GB
N
r0w0
r0w0
16.2.3.6.1 Explanation of parameters for 2 SetBasics
16.2.3.6.1.1 Definition of actual value and set value inputs
W-Input:
Defines the type of set value input signal 0-20mA / 4-20mA.
X-Input:
Defines the type of actual value input signal 0-20mA /
4-20mA.
16.2.3.6.1.2 Reset
Default:
Serves to reset the positioner to the default settings. All val-
ues changed by the operator are consequently deleted. An ini-
tialization that has already taken place will also be deleted.
Only the parameter set currently stored in the working
memory is reset, however. Stored parameter sets remain un-
changed.
16.2.3.6.1.3 Carrying out initialization
InitValve:
Automatic or manual initialization (adaptation of the posi-
tioner to the valve) is started.
16.2.3.6.1.4 Making the display settings
D.Refresh:
The time for display refresh can be changed.
DLight:
The features of the display lighting can be switched between
the following settings:
- OnKey – Display lighting is activated by pressing a key. The
display lighting remains activated after the last key is
pressed for the period set using AutoReturn.
- On – The display lighting is permanently activated.
AutoReturn:
The time for the automatic return to the working level after
last activating a key can be set. This time setting is also ef-
fective for the display lighting (DLight).
HelpLanguage:
For the text language, you can choose between D-German,
GB-English and N-Norwegian.
HelpText:
The help texts that appear as a default in the second line of
the display can be masked.
If the help texts are masked, the key assignment is displayed.
To Next Page
