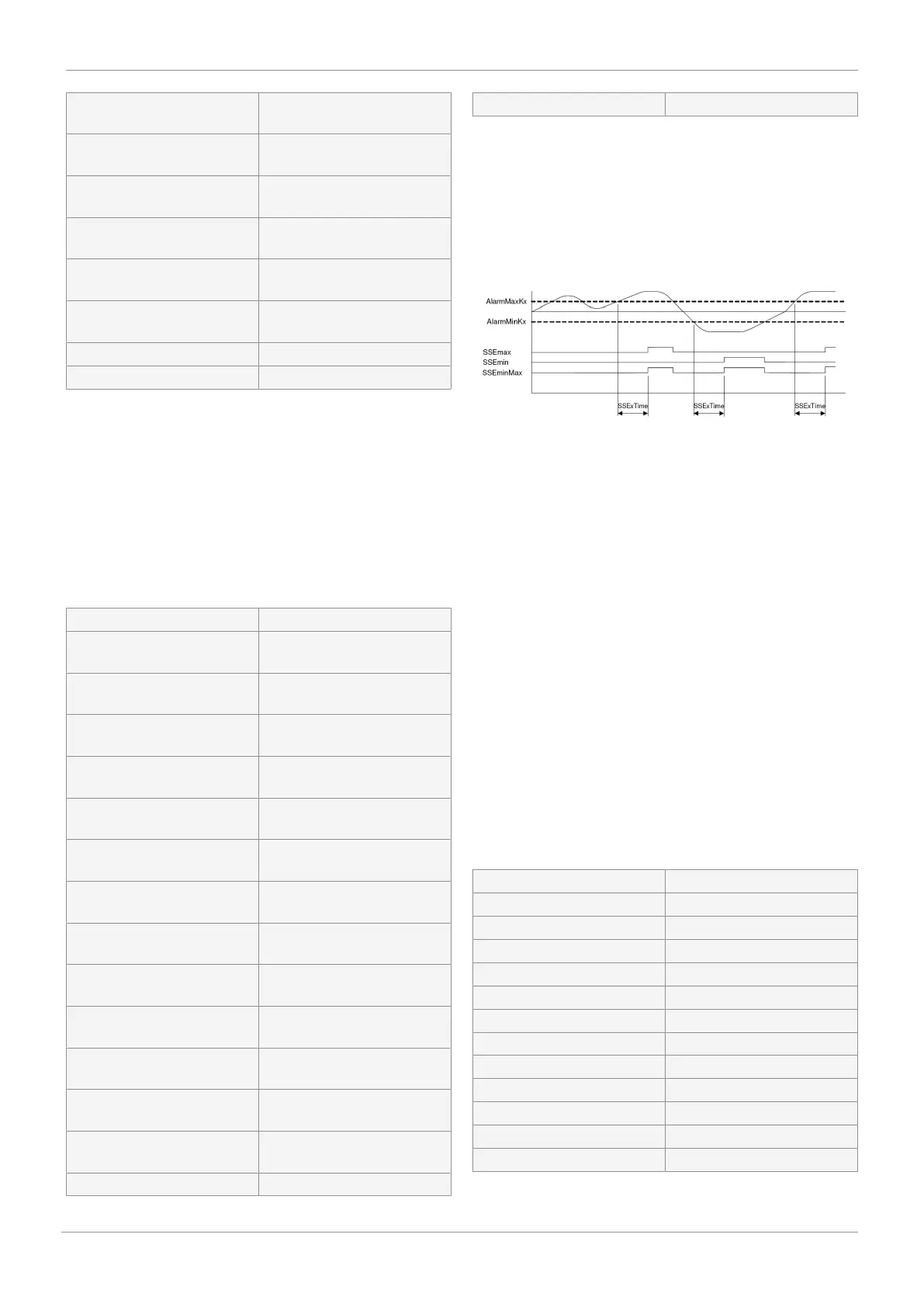

16 Operation
(X max) Above the actual value preset
under AlarmMaxK1
(X min/max) Above or below the preset ac-
tual value
(SSE min) Below the control deviation
preset under AlarmMinK1
(SSE max) Above the control deviation
preset under AlarmMaxK1
(SSE min/max) Above or below the preset ac-
tual value
Active Active if the controller is in
the OFF-mode
Error Error message
Warning Warning message
- AlarmMinK1: Sets the switch point in % under which output
K1 is switched.
- AlarmMaxK1: Sets the trigger threshold in % over which
output K1 is switched.
- SSE1Time: Determines the delay time for output K1
between error detection and error message for a permanent
system deviation.
- K2 Switch: Defines the output contact type.
NO – make contact or NC – break contact
- K2 fn: Determines the function of output K2.
(no) No function
(P min) Below the valve position pre-
set under AlarmMinK2
(P max) Above the valve position pre-
set under AlarmMaxK2
(P min/max) Above or below the preset
valve positions
(W min) Below the set value preset un-
der AlarmMinK2
(W max) Above the set value preset un-
der AlarmMaxK2
(W min/max) Above or below the preset set
value
(X min) Lower than the actual value
preset under AlarmMinK2
(X max) Above the actual value preset
under AlarmMaxK2
(X min/max) Above or below the preset ac-
tual value
(SSE min) Below the control deviation
preset under AlarmMinK2
(SSE max) Above the control deviation
preset under AlarmMaxK2
(SSE min/max) Above or below the preset ac-
tual value
Active Active if the controller is in
the OFF-mode
Error Error message
Warning Warning message
- AlarmMinK2: Sets the switch point in % under which output
K2 is switched.
- AlarmMaxK2: Sets the trigger threshold in % over which
output K2 is switched.
- SSE2Time: Determines the delay time for output K2
between error detection and error message for a permanent
system deviation.
16.2.3.7.1.6 Setting the error time and error action
ErrorTime:
Determines the delay time between error detection and error
message.
ErrorAction: Defines the behaviour of the valve if there is an
error message.
- Close: The valve is moved to the CLOSED position.
- Open: The valve is moved to the OPEN position.
- Hold: Valve remains at its current position.
- Safe: The valve is vented and thereby moved to its safety
position.
16.2.3.7.1.7 Storing parameter sets
CpyParaSet:
The current positioner settings can be copied and read out in
different memories.
It is not possible to load all changed control parameters into
the programme memories. Please refer to chapter 16.4 for an
overview of the parameters which can be stored. If a para-
meter cannot be stored, it is active in all memories.
(P1 <= W) Write from W to P1
(P1 => P2) Write from P1 to P2
(P1 <= P2) Read from P2 to P1
(P1 => P3) Write from P1 to P3
(P1 <= P3) Read from P3 to P1
(P1 => P4) Write from P1 to P4
(P1 <= P4) Read from P4 to P1
(OFF) Storage function deactivated
P1 Memory 1
P2 Memory 2
P3 Memory 3
P4 Memory 4
W Default setting
