4 pieces 8 dowel and 4 pieces 5x40 wood screw
1 piece pH dosage pump electrical output socket
O’ring seal
Wall Bracket
PH Probe

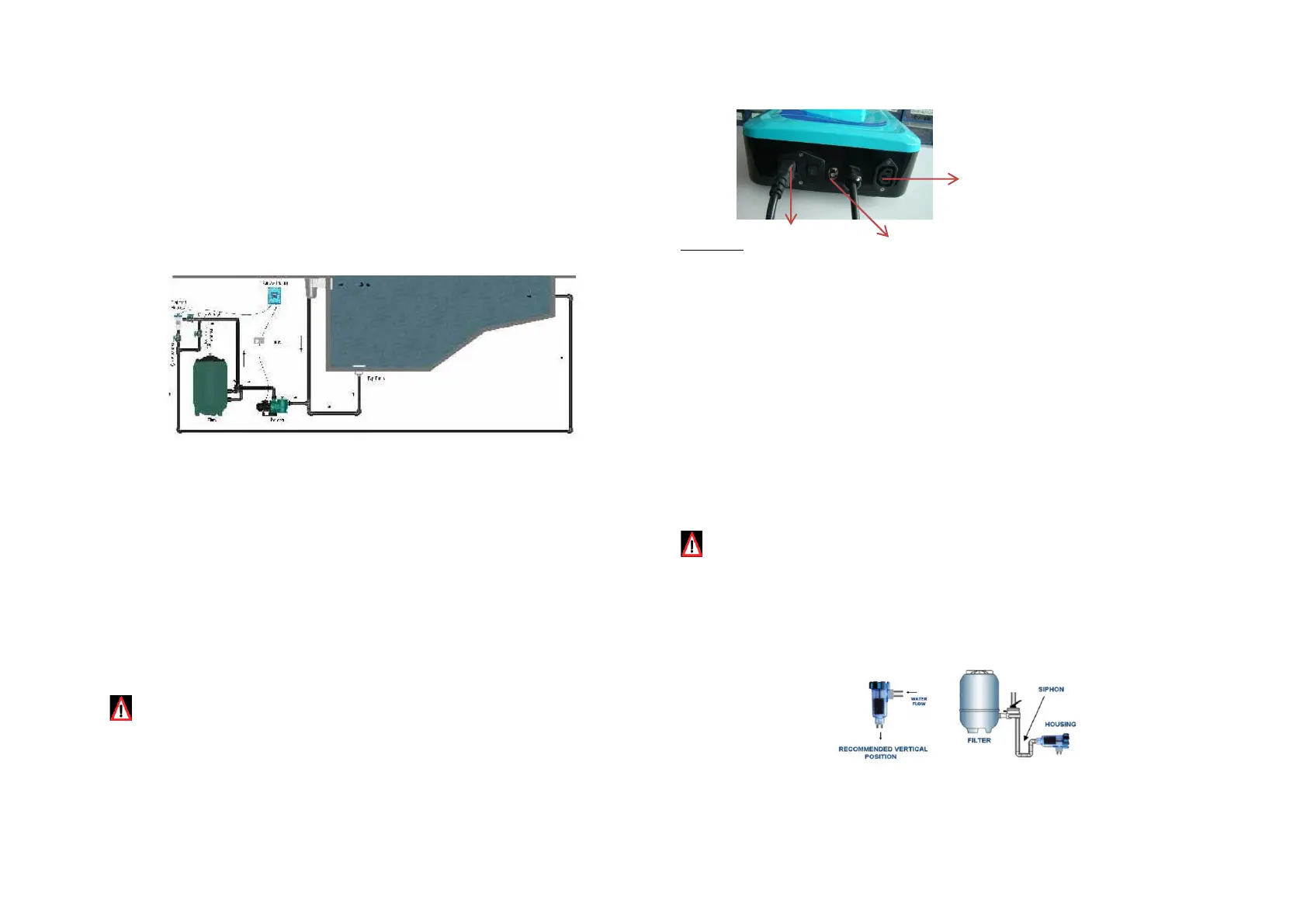

3- Installation
Control Unit
Attach the control unit, using the brackets(7) in the back and the screws supplied, in a position
providing easy access and reading. The control(1) unit will be placed at a maximum of 1.5 metres
away from the electrolytic cell. Choose a place with good ventilation and protected from the rain and
possible water leaks.
Connect the ground wire (yellow and green) of the 220 VAC power supply cable(2) to ground in the
swimming pool switchboard. Connect phase (brown) and neutral (blue) to the output of the pump
contactors in such a way that the chlorinator is powered only when the pump is working. Connect the
chlorinator to free terminals. Do not use terminals occupied by the wires of the pump. This will avoid
the chlorinator to be electrically connected to the pump after switching off the current, which could
cause serious damage.
The chlorinator should be powered with 220 VAC and only when the pump is connected and
the water is circulating through the cell. Please pay special attention if your installation is
threephase (pump at 380 VAC).
Cell housing (4)
The cell housing(4) will be installed in the return flow to the swimming pool and will be always after
the last elements (filter, heater, etc) the water goes through. Use glue for rigid PVC and wait for it to
dry completely before inserting the cell.
A by-pass installation with three valves will always be recommended. This layout allows
the amount of water circulating in the cell to be adjusted and the swimming pool to work
with the housing disassembled. At a pump with certain power, the by-pass is necessary to
reduce the speed of water at its passage through the housing and to avoid damaging
vibrations in the electrodes.
It can be used vertically or horizontally but we recommend vertical position . Vertical
position allows for emptying the cell without water spills and provide enoung space to
unscrew the thread and extract the cell once the housing has been installed. There is no
recommendation of water flow.
If the cell is installed at a height below that of the output filter, the
gases created in the housing, resulting from the electrolysis and could
damage the filtration elements. Please see below diagram for avoid this
circumstance.
220 V electrical
connection
Dosage pump
electrical
socket
connection
