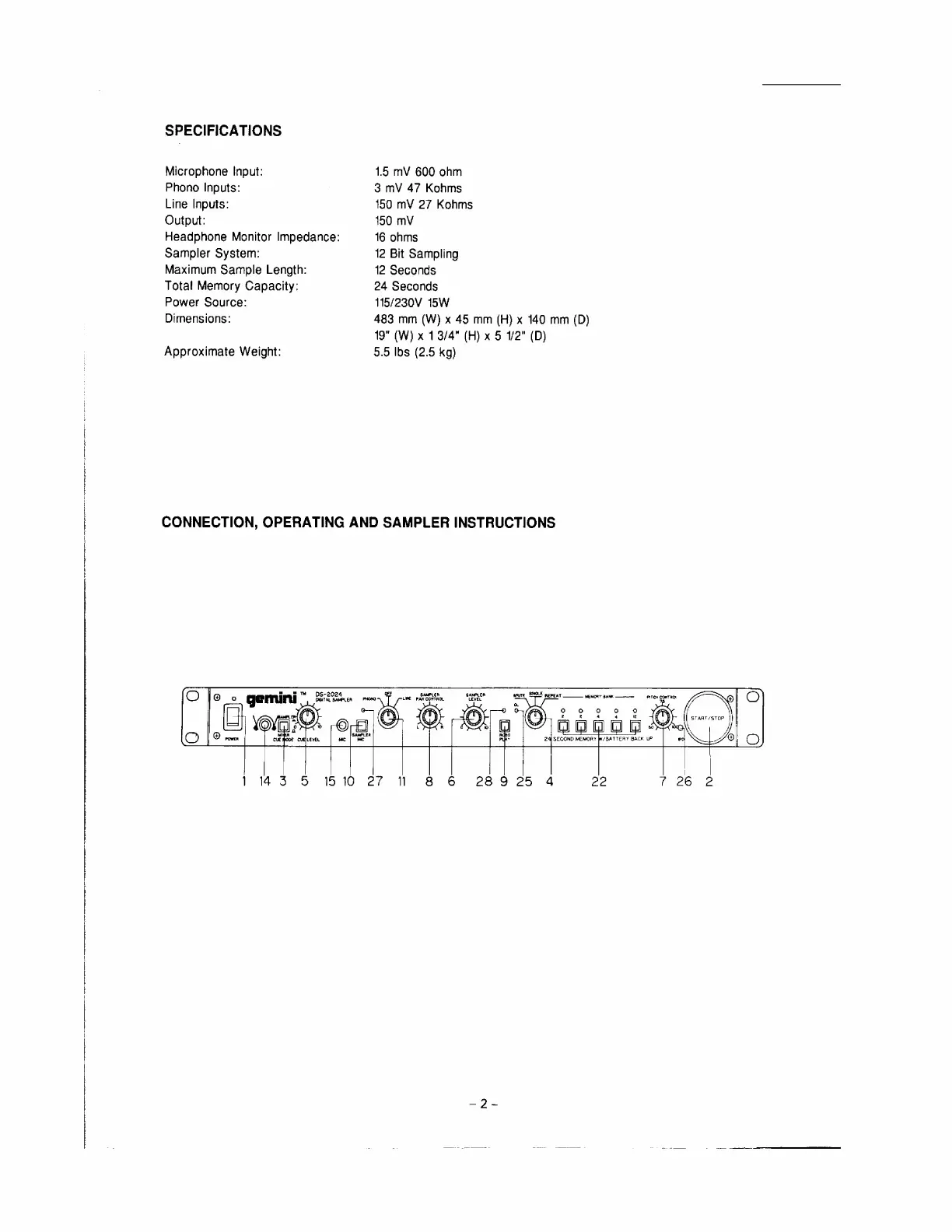

SPECIFICATIONS
Microphone Input:
Phono Inputs:
Line Inputs:
Output:
Headphone Monitor Impedance:
Sampler System:
Maximum Sample Length:
Total Memory Capacity:
Power Source:
Dimensions:
Approximate Weight:
1.5 mV 600 ohm
3 mV 47 Kohms
150 mV 27 Kohms
150 mV
16 ohms
12 Bit Sampling
12 Seconds
24 Seconds
115/230V i5W
483 mm (W) x 45 mm (H) x 140 mm (D)
19" (W) x 13/4" (H) x 5 1/2" (D)
5.5 Ibs (2.5 kg)
CONNECTION, OPERATING AND SAMPLER INSTRUCTIONS
POWER
1143 5 110 27 1 8 6
@® o gemini Dera saumen menos P
om ° onthe,
SAMPLER SAMPLER
LIKE PAK CONTROL LEVEL
ete 4 22
