Gemini DS-2024 User Manual

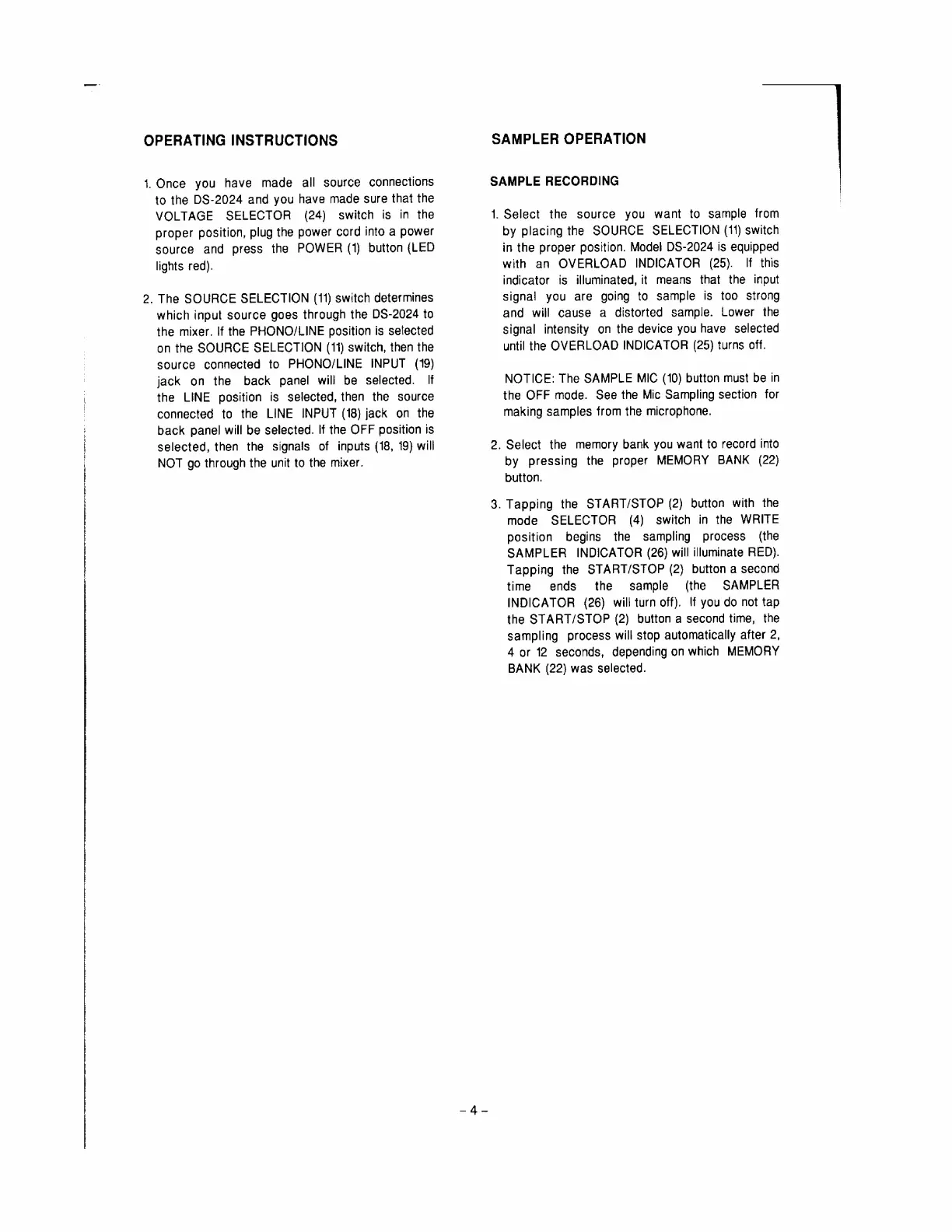

OPERATING INSTRUCTIONS
1. Once you have made all source connections
to the DS-2024 and you have made sure that the
VOLTAGE SELECTOR (24) switch is in the
proper position, plug the power cord into a power
source and press the POWER (1) button (LED
lights red).
. The SOURCE SELECTION (11) switch determines
which input source goes through the DS-2024 to
the mixer. If the PHONO/LINE position is setected
on the SOURCE SELECTION (11) switch, then the
source connected to PHONO/LINE INPUT (149)
jack on the back panel will be selected. If
the LINE position is selected, then the source
connected to the LINE INPUT (18) jack on the
back panel will be selected. If the OFF position is
selected, then the signals of inputs (18, 19) will
NOT go through the unit to the mixer.
SAMPLER OPERATION
SAMPLE RECORDING
1. Select the source you want to sample from
by placing the SOURCE SELECTION (11) switch
in the proper position. Model DS-2024 is equipped
with an OVERLOAD INDICATOR (25). If this
indicator is illuminated, it means that the input
signal you are going to sample is too strong
and will cause a distorted sample. Lower the
signal intensity on the device you have selected
until the OVERLOAD INDICATOR (25) turns off.
NOTICE: The SAMPLE MIC (10) button must be in
the OFF mode. See the Mic Sampling section for
making samples from the microphone.
. Select the memory bank you want to record into
by pressing the proper MEMORY BANK (22)
button.
. Tapping the START/STOP (2) button with the
mode SELECTOR (4) switch in the WRITE
position begins the sampling process (the
SAMPLER’ INDICATOR (26) will illuminate RED).
Tapping the START/STOP (2) button a second
time ends the sample (the SAMPLER
INDICATOR (26) will turn off). If you do not tap
the START/STOP (2) button a second time, the
sampling process will stop automatically after 2,
4 or 12 seconds, depending on which MEMORY
BANK (22) was selected.
