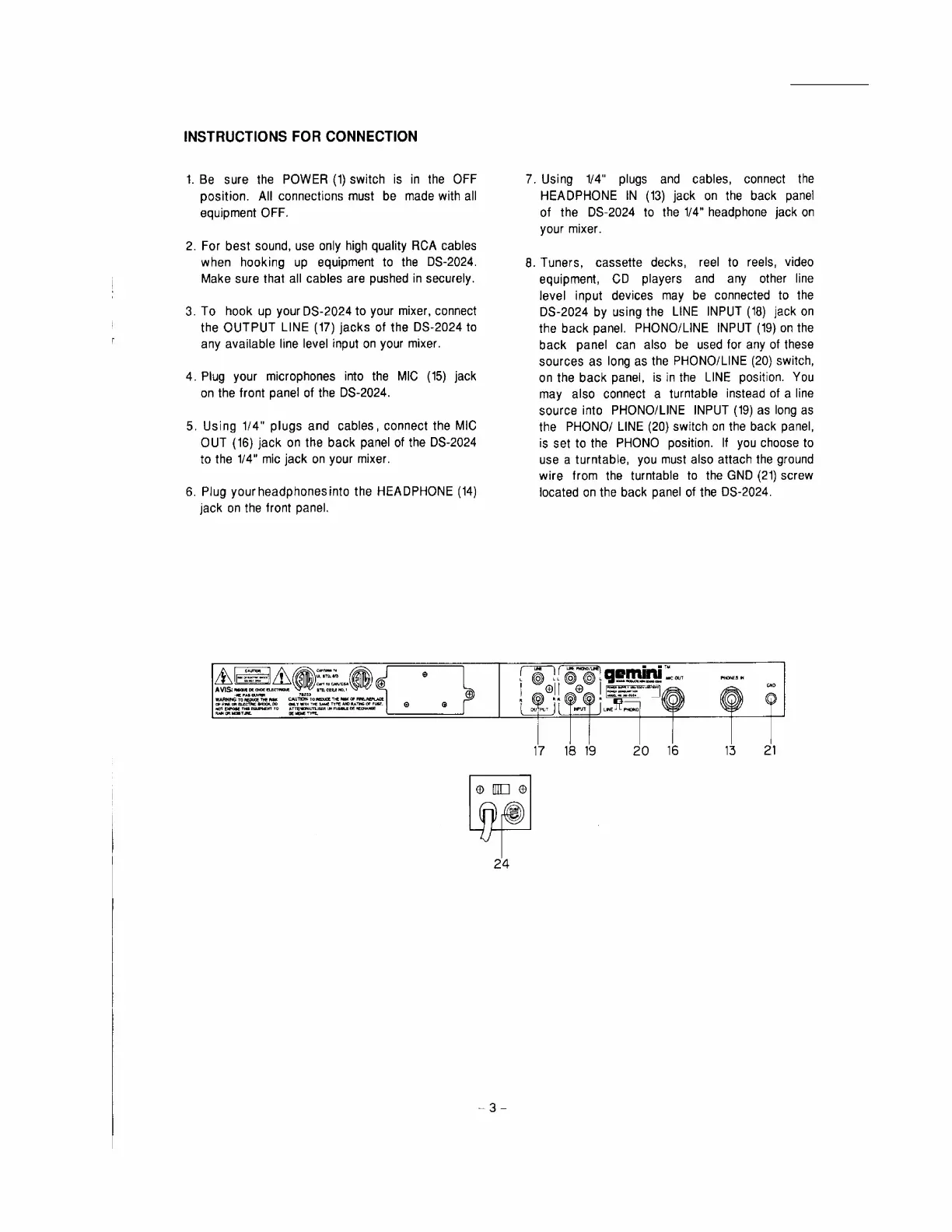

INSTRUCTIONS
FOR
CONNECTION
.
Be
sure
the
POWER
(1)
switch
is
in
the
OFF
position.
All
connections
must
be
made
with
all
equipment
OFF.
.
For
best
sound,
use
only
high
quality
RCA
cables
when
hooking
up
equipment
to
the
DS-2024.
Make
sure
that
all
cables
are
pushed
in
securely.
.
TO
hook
up
your
DS-2024
to
your
mixer,
connect
the
OUTPUT
LINE
(17)
jacks
of
the
DS-2024
to
any
available
line
level
input
on
your
mixer.
.
Plug
your
microphones
into
the
MIC
(15)
jack
on
the
front
panel
of
the
DS-2024.
.
Using
1/4"
plugs
and
cables,
connect
the
MIC
OUT
(16)
jack
on
the
back
panel
of
the
DS-2024
to
the
1/4"
mic
jack
on
your
mixer.
.
Plug
yourheadphonesinto
the
HEADPHONE
(14)
jack
on
the
front
panel.
AE=AG@
AVIS:
mean
of
One
ciecrene
Contoma
ta
ML
STD.
6
Cart
to
CAN/ESA
O70,
CER
NO.1
7.
Using
6),
2,0
6,60
gemunt
7/4"
plugs
and
cables,
connect
the
HEADPHONE
IN
(13)
jack
on
the
back
panel
of
the
DS-2024
to
the
1/4”
headphone
jack
on
your
mixer.
.
Tuners,
cassette
decks,
reel
to
reels,
video
equipment,
CD
players
and
any
other
line
level
input
devices
may
be
connected
to
the
DS-2024
by
using
the
LINE
INPUT
(18)
jack
on
the
back
panel.
PHONO/LINE
INPUT
(19}
on
the
back
panel
can
also
be
used
for
any
of
these
sources
as
long
as
the
PHONO/LINE
(20)
switch,
on
the
back
panei,
is
in
the
LINE
position.
You
may
also
connect
a
turntable
instead
of
a
line
source
into
PHONO/LINE
INPUT
(19)
as
long
as
the
PHONO/
LINE
(20}
switch
on
the
back
panel,
ig
set
to
the
PHONO
position.
If
you
choose
to
use
a
turntable,
you
must
also
attach
the
ground
wire
from
the
turntable
to
the
GND
(21)
screw
located
on
the
back
panel
of
the
DS-2024.
m
TM
@
@:
