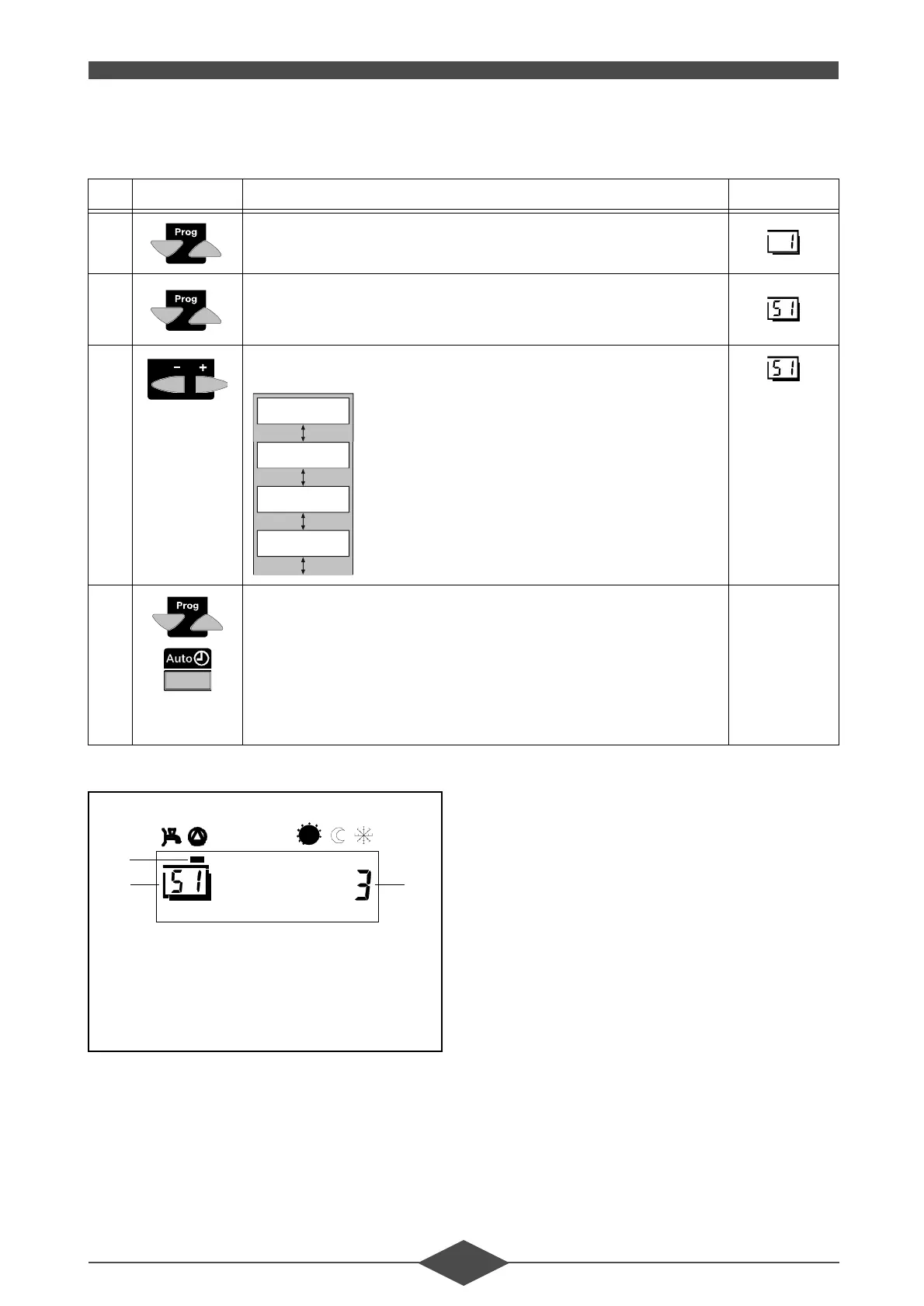

Press one of the line selection buttons.

- This will take you first to programming mode "End-user".

Press both line selection buttons for at least 3 seconds.

- This will take you to programming mode ’’heating engineer’’ and, at the

same time, to the output test (relay test).

Press the plus or minus button repeatedly, which will take you one test step

further:

All outputs are switched according to actual

control operation.

All outputs are deactivated.

D.h.w. charging pump (Q3) is activated.

Heating circuit or primary pump activated (Q1).

You leave the programming line "Output test" by pressing either one of the

line selection buttons,

or one of the operating mode buttons.

-Note:

If no button is pressed for about 8 minutes, the regulator will automatically

return to the operating mode selected last.

Continuous

display

Etape 0

Etape 1

Etape 2

Etape 3

2379Z02

812162024

D 7KHEDUEHORZWKHV\PEROLQGLFDWHVWKHRXWSXW

DFWLYDWHG

E 7KHQXPEHULQGLFDWHVWKHFXUUHQWWHVWVWHS

F 7KHIUDPHGQXPEHULQGLFDWHVWKHVHOHFWHGVHW

WLQJOLQH

)LJ
