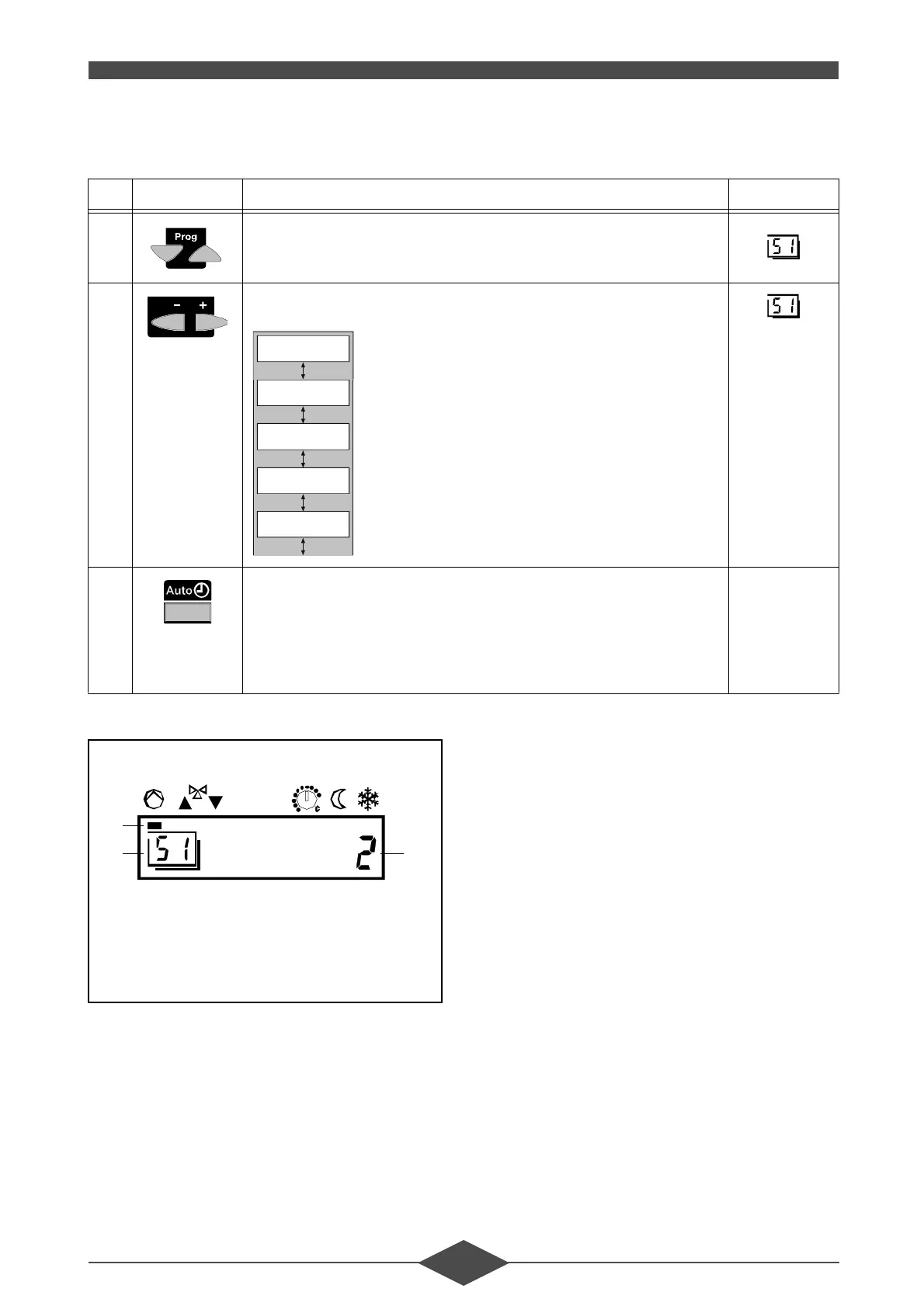

Press both line selection buttons for at least 3 seconds.
- This will take you to the programming mode and, at the same time, to the
output test.
2
Press the plus or minus button repeatedly, which will take you one test step
further:
All outputs perform their switching actions in compliance
with the control mode.
All outputs are switched off.
Circulating pump (Q2) is activated.
Mixer valve OPEN (Y1).
Mixer valve CLOSED (Y2).
4
By pressing any of the operating mode buttons, you leave the programming
mode and thus the output test mode.
-Note:
If no button is pressed for about 8 minutes, the controller will automatically
return to the operating mode selected last.
Continuous
display
Etape 1
Etape 0
Etape 2
Etape 3
Etape 4
b)
c)
a)
2372Z03
D 7KHEDUEHORZWKHV\PEROLQGLFDWHVWKHRXWSXW
DFWLYDWHG
E 7KHQXPEHULQGLFDWHVWKHWHVWVWHSFXUUHQWO\VH
OHFWHG
F 7KHIUDPHGQXPEHU WKHVHOHFWHGVHWWLQJOLQH
)LJ
