Gendex DenOptix® QST
Cleaning the EO/CH (panoramic and cephalometric) carousel

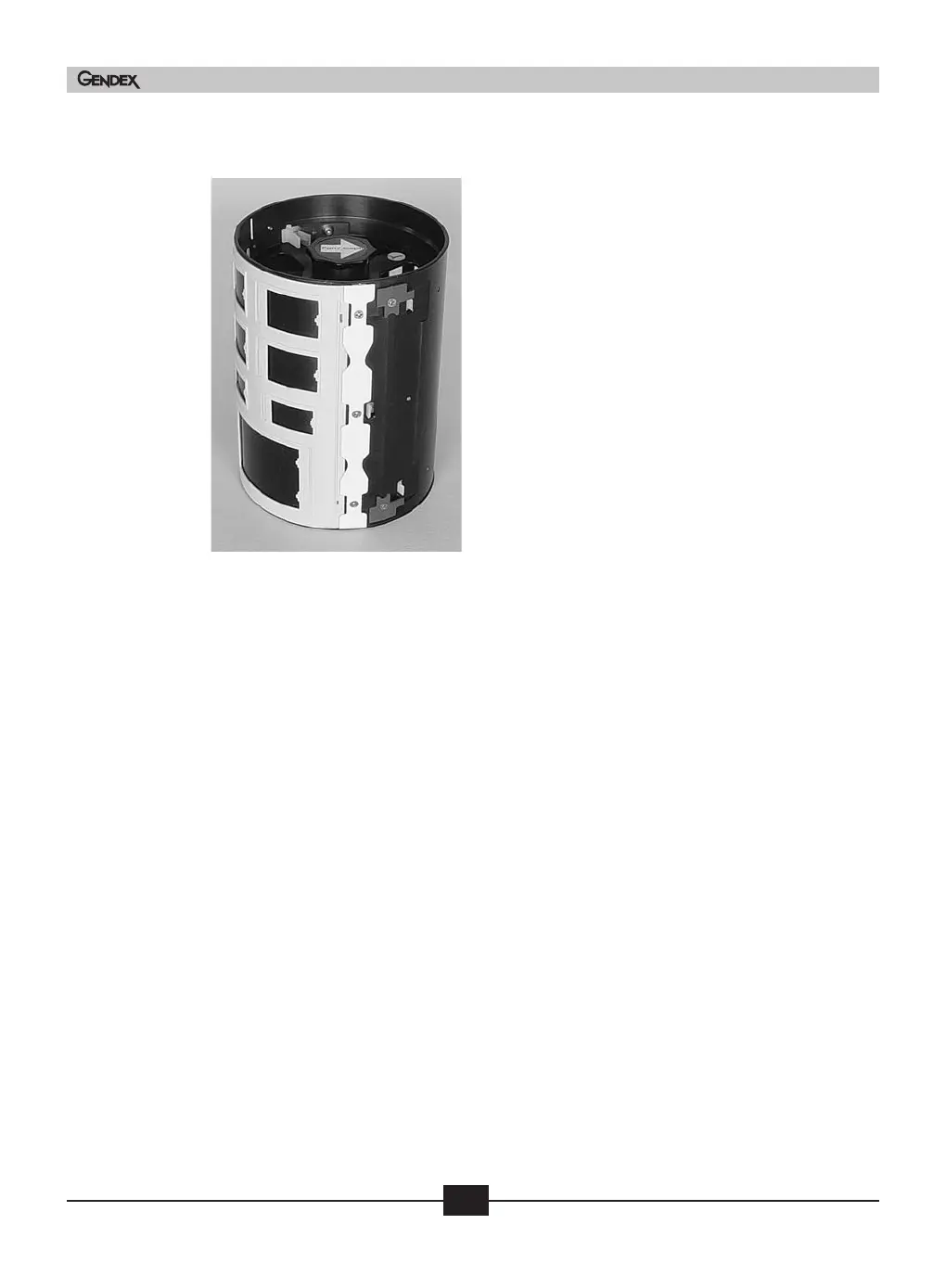

Figure 7-4
To clean the EO/CH carousel, you will follow similar
steps to the intraoral carousel. Remove the carousel
imaging plate holder by removing the three screws of
the plastic retention piece on both sides of the
carousel. The imaging plate holder will easily come
free.
Spray the carousel with a general household non-
abrasive cleaning solution. Do not use strong alkaline
or ammonia based cleaners.
Wipe clean and allow to air dry. If the intraoral imag-
ing plate holder is soiled, remove it by removing both
vertical plastic retention pieces by removing the three
screws on each side and following the same instruc-
tions as for the intraoral image plate holder cleaning.
Clean with the general household non-abrasive spray or soap and water. Allow to dry com-
pletely before re-assembling. Re-assemble by placing one side of the imaging plate holder
under the plastic retention device and tighten screws. Repeat step on the other side of the
imaging plate holder, replace plastic retention device and tighten the three screws.
