Scanner maintenance
The only part of the DenOptix QST scanner that may require operator maintenance is the fuse.
If you experience any other service-related problem, contact your local Gendex dealer. Follow
these directions to change the fuse.

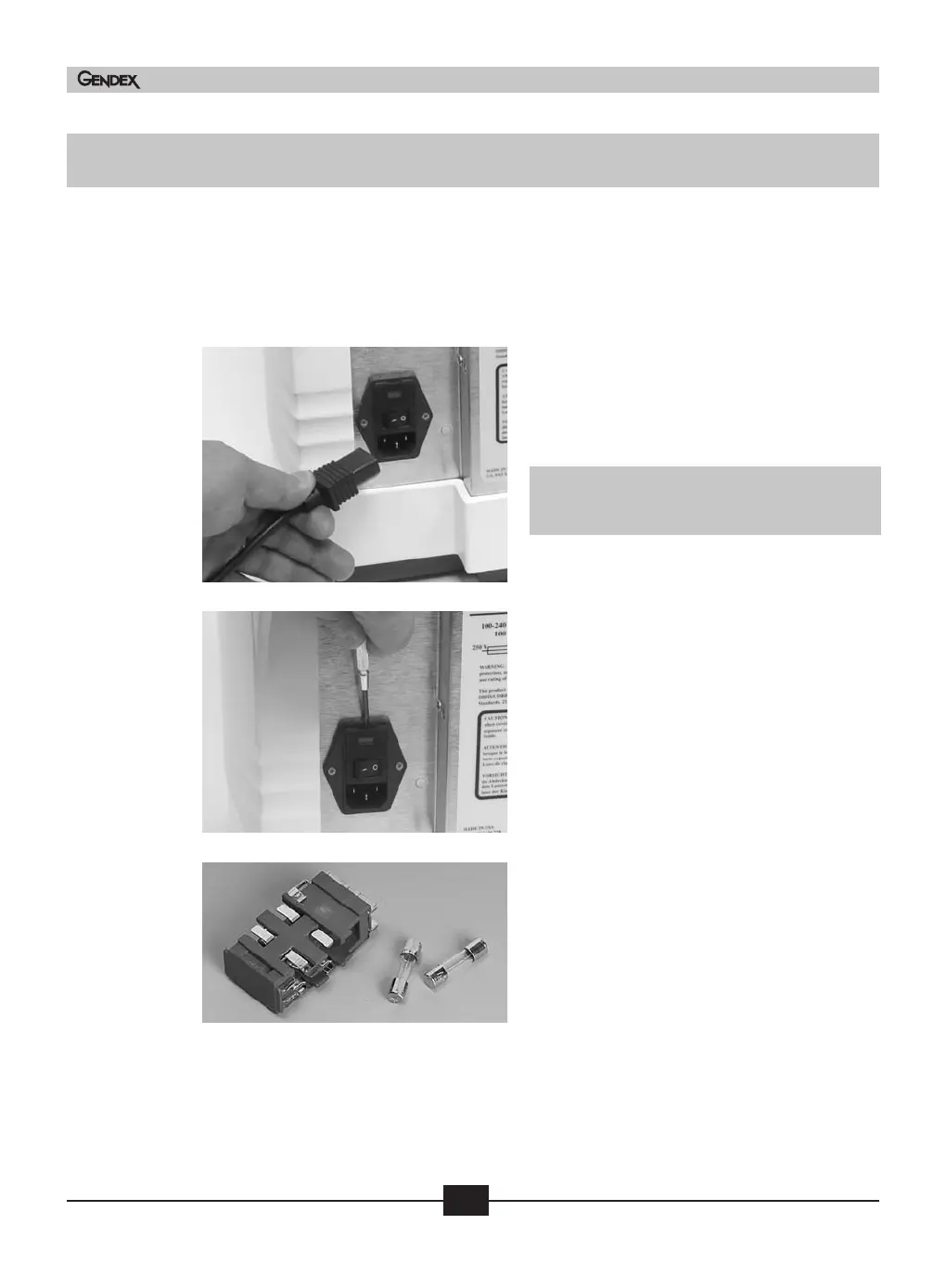

Figure 7-5
Turn the DenOptix QST scanner off as per
Section 5.7. Unplug the power cord and USB 2.0
cable.
WARNING: To avoid possible electrical shock,
ensure that the power cord is unplugged.
Figure 7-6
Insert a small, flat tipped screwdriver into the
top of the fuse cover on the back of the scanner.
Pry the top of the connector open.
F
igure 7-7
Remove the fuse holder. Change both fuses.
Ensure that new fuses meet the following spec-
ifications: 250 V, 2 amp, Time Lag, High Breaking
Capacity. Insert the fuses, REF 5101-0005, into
the fuse holder.
